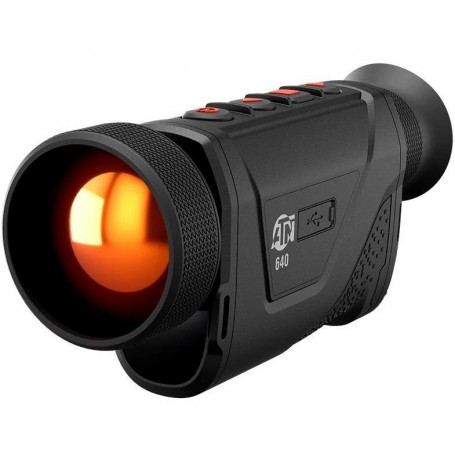

ATN BlazeHunter 3.5-28x,640x512,Pro Thermal Imaging Monocular with LRF (TIMNBLH650LRF)

The ATN BlazeHunter series of thermal imaging monoculars are advanced devices created for demanding hunters and nature enthusiasts. These monoculars feature a compact, lightweight design and deliver excellent image quality, enabling precise tracking and observation even in difficult conditions.

The core of the ATN BlazeHunter 650 LRF 3.5-28x thermal scope is a low-noise sensor with a resolution of 640 x 512 pixels and a thermal sensitivity (NEDT) of 18 mK. The image is displayed on an OLED screen with a resolution of 1440 x 1080 pixels. The electronics are engineered to ensure maximum functionality with minimal energy consumption, allowing a standard 18650 battery to provide up to seven hours of operation on a single charge.

The optoelectronic system is enclosed in a lightweight, weather-resistant housing that meets IP67 standards.

Key Features

• Low-noise sensor with 640 x 512 px resolution and 12 µm pixel size

• Thermal sensitivity of 18 mK

• Adjustable magnification from 3.5x to 28x

• OLED display with 1440 x 1080 px resolution and selectable color palettes

• Built-in rangefinder with a range of over 900 meters

• Very high detection range

• Ultra-lightweight, waterproof casing

Included Components

• ATN BlazeHunter 650 LRF thermal imaging monocular 3.5-28x 640x512

• Two 18650 batteries

• Charger with cable

• Soft cover

• Carrying bag

• Eye cup

• Optics cleaning cloth

• Neck strap

• Documentation

Technical Specifications

• Sensor size: 640 x 512 px

• Refresh rate: 50 Hz

• Pixel diameter: 12 µm

• NEDT: less than 18 mK

• Lens: 50 mm

• Magnification: 3.5x to 28x

• Field of view: 8.7° x 6.9°

• Detection range: 1830 m (2000 yards)

• Exit pupil distance: 15 mm

• Display: OLED, 1440 x 1080 px

• Color palette options: white hot, black hot, white hot + red, green hot, sepia, ironbow

• Built-in rangefinder: Yes

• Rangefinder range: 2380 m (2600 yards)

• Power supply: 18650 batteries

• Battery life: 7 hours

• Mobile app compatibility: Yes, ATN BLAZE APP

• Waterproof: Yes, IP67

• Operating temperature: -30°C to 50°C

• Dimensions: 152 x 42 x 74 mm

• Weight: 360 g

Warranty

3-year manufacturer warranty
