DJI SKYPORT V3 Coaxial Cable Kit (CP.EN.00000647)

This kit is designed for use with the Skyport V3 Adapter, allowing developers to connect the adapter to PSDK payloads. Each coaxial cable follows a defined pin layout, making it easier to integrate into custom payload designs.

Important Information:

• When integrating the adapter board into a finished payload, it is recommended to use a heat sink and metal enclosure for protection.

• If you notice any sparks, smoke, burning smells, or other unusual signs after powering on, turn off the power immediately.

• When using all three XT30 power output ports at the same time, ensure the combined output does not exceed the aircraft’s maximum single-port output. Always build payloads within the specified output limits.

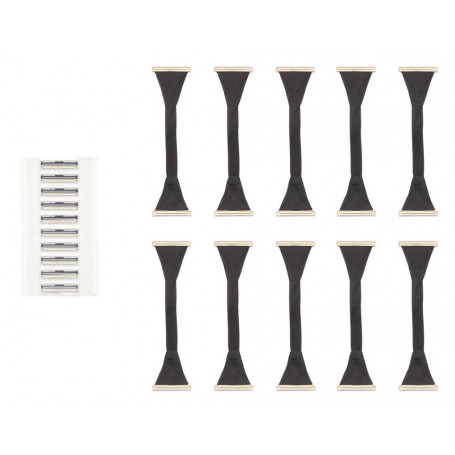

Package Contents:

• 10 coaxial cables

• 10 coaxial cable connector terminals

Compatibility:

• Designed for use with DJI Matrice 400
