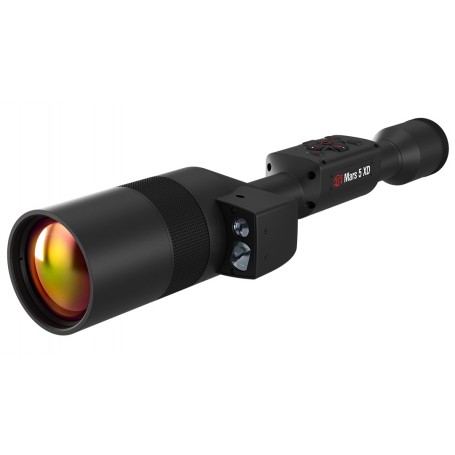

ATN Mars 5 XD 4-40x100mm LRF Thermal imaging scope (MS51210LRF)

ATN Mars 5 XD LRF 4–40×100 – Premium Thermal Scope

Catalog Number: MS51210LRF

We present the latest ATN Mars 5 XD LRF 4–40×100 (known in the USA as ThOR 5 XD), equipped with a high-end sensor, advanced electronics, and an integrated laser rangefinder — all within a compact and ergonomic body.

Why choose it?

• Sensor: 1280×1024 px, 60 fps, 12 µm (Gen V) — extreme image detail, both day and night

• Magnification: 4–40× with field of view 8.8°×6.6° — excellent clarity for both short and long distances

• Human detection range up to 4,000 yd (approx. 3,657 m) — dominance in long-range scenarios

• Built-in laser rangefinder (LRF) — precise distance measurement and ballistic calculator support

• Advanced features: SharpIR© AI, One-Shot Zero calibration, ballistic profiles, electronic compass, illuminated reticles, and custom reticle editor

• HD recording and Recoil Activated Video (RAV) at 60 fps + Dual Stream (live view + recording)

• Wireless connectivity: Wi-Fi, Bluetooth, streaming to ATN app on iOS/Android

• Performance and usability: 90 mm eye relief, micro-SD slot (4–64 GB), USB-C, up to 10 hours of battery life, weather-resistant housing

Applications

• Long-range hunting – accuracy, clear imaging, and laser rangefinder ensure effective and safe shots

• Tactical and surveillance use – detection, identification, and documentation of objects even at long distances

• Night expeditions and wildlife documentation – lightweight design with video recording for easy capture

Customer benefits

• Intuitive controls and quick calibration in the field

• Precise shooting with laser rangefinder and ballistic calculator

• Maximum utility and safety — monitor, record, and stream

Package contents

• ATN Mars 5 XD LRF 4–40×100

• Lens cover, 30 mm mounting ring

• USB-C cable, soft cover, and lens cloth

• User manual, warranty card (3 years)

• Optional: Power Weapon Kit 20,000 mAh – extended power up to 22 hours

Technical specifications

• SKU: MS51210LRF

• Laser Rangefinder: Yes

• Sensor: 1280×1024, 60 fps, 12 µm

• Magnification: 4–40×

• Field of View: 8.8°×6.6°

• Core: ATN Gen V Quad Core

• Eye Relief: 90 mm

• Video Record Resolution: 1280 @ 60 fps

• Ballistic Calculator: Yes

• Wi-Fi (Streaming, Gallery & Controls): iOS & Android

• Bluetooth: Yes

• 3D Gyroscope: Yes

• 3D Accelerometer: Yes

• RAV (Recoil Activated Video): Yes

• Electronic Compass: Yes

• Smooth Zoom: Yes

• Radar: Yes

• Reticles: Multiple patterns & color options, custom reticles available

• Reticle Editor: Yes

• Microphone: Yes

• MicroSD Card: 4 to 64 GB

• USB Type-C: Yes

• Mount: 30 mm HP QDM

• Battery Life (Li-ion): 10 hours

• Waterproof / IP Rating: Weather resistant

• Human Detection Range: 4000 m

• Human Recognition Range: 1800 m

• Human Identification Range: 720 m

• Operating Temperature: –20°F to +120°F / –28°C to +48°C

• Dimensions: 341×76×56 mm

• Weight: 1.49 kg

• Warranty: 3 years
