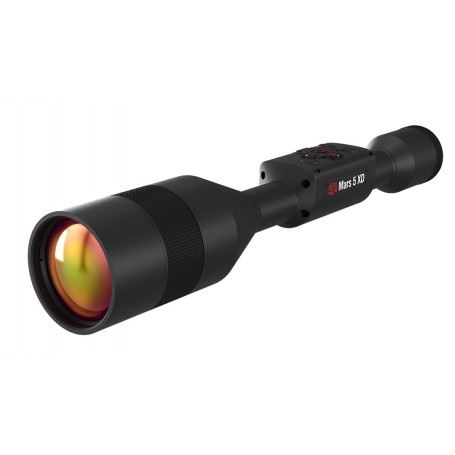

ATN Mars 5 XD 3-30x75mm Thermal imaging scope (MS51275A)

ATN Mars 5 XD 1280 3–30×75 – Professional Next-Generation Thermal Scope

Catalog Number: MS51275A

The ATN Mars 5 XD 1280 3–30×75 is a modern premium-class thermal scope, designed for the most demanding users. Equipped with an ultra-high-resolution 1280×1024 sensor and the latest ATN Gen V processor, it delivers exceptionally detailed imaging and unmatched functionality in all field and lighting conditions.

Key product features

• Sensor: 1280×1024 px, 12 μm, 60 Hz – highest image quality in its class

• Magnification range: 3–30× – perfect balance between wide field of view and high zoom

• Human detection up to 3000 m – reliable recognition of targets at long distances

• HD video recording (1280×960 @ 60 fps) – with Recoil Activated Video (RAV)

• Dual Stream live view over Wi-Fi – observe and record simultaneously

• One Shot Zero – fast and precise zeroing with a single shot

• Built-in ballistic calculator and reticle editor – accuracy tailored to ammunition and conditions

• SharpIR AI technology – advanced focus and identification support

• Night mode, radar, electronic compass, 3D gyroscope

• Storage: microSD up to 64 GB, USB-C port, Bluetooth 5.0, Wi-Fi

• Battery life up to 10 hours, with option for external power via power bank

Applications

• Professional hunting – effective observation and aiming even in harsh weather and at night

• Forestry and law enforcement – tactical operations, detection, and event recording

• Wildlife monitoring and observation – natural thermal colors with long-range recording

Why choose the ATN Mars 5 XD 1280 3–30×75

• Ideal choice for professionals and optical technology enthusiasts

• Market-leading resolution of 1280×1024 px

• Intuitive operation with rapid zeroing

• Reliability in all field conditions

Package contents

• ATN Mars 5 XD 1280 3–30×75 thermal scope

• Lens cover

• 30 mm mounting rings

• Eye cover

• USB-C cable

• Lens cloth

• User manual

• Warranty: 3 years in the EU

Technical specifications

• SKU: MS51275A

• Laser Rangefinder: No

• Sensor: 1280×1024, 60 fps, 12 µm

• Magnification: 3–30×

• Field of View: 11.8°×8.8°

• Core: ATN Gen V Quad Core

• Eye Relief: 90 mm

• Video Record Resolution: 1280 @ 60 fps

• Ballistic Calculator: Yes

• Wi-Fi (Streaming, Gallery & Controls): iOS & Android

• Bluetooth: Yes

• 3D Gyroscope: Yes

• 3D Accelerometer: Yes

• Recoil Activated Video (RAV): Yes

• Electronic Compass: Yes

• Smooth Zoom: Yes

• Radar: Yes

• Reticles: Multiple patterns & color options, user-customizable reticles

• Reticle Editor: Yes

• Microphone: Yes

• MicroSD Card: 4 to 64 GB

• USB Type-C: Yes

• Mount: 30 mm HP QDM

• Battery Life (Li-ion): 10 hours

• Waterproof / IP Rating: Weather resistant

• Human Detection Range: 3200 m

• Human Recognition Range: 1440 m

• Human Identification Range: 610 m

• Operating Temperature: –20°F to +120°F / –28°C to +48°C

• Dimensions: 316×56×54 mm

• Weight: 1.36 kg

• Warranty: 3 years
