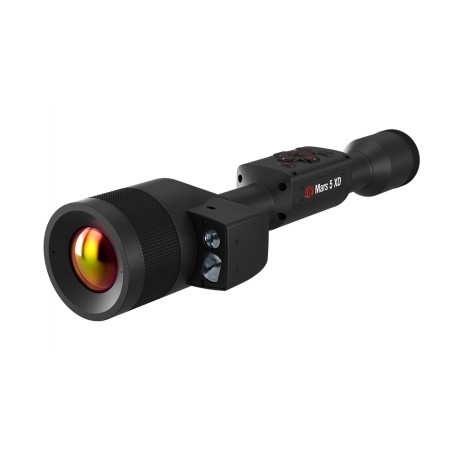

ATN Mars 5 XD 2-20x50mm LRF Thermal imaging scope (MS51250LRF)

ATN Mars 5 XD LRF 1280 2–20×50 – Thermal Scope with Laser Rangefinder

Catalog Number: MS51250LRF

The ATN Mars 5 XD LRF 1280 2–20×50 is an advanced thermal scope designed for the most demanding users. With its integrated laser rangefinder and 1280×1024 px sensor, it offers precise long-range targeting, outstanding image quality, and modern features to support users in all conditions.

Key product features

• Sensor: 1280×1024 px, 12 µm, 60 Hz – exceptional thermal image detail

• Optical magnification: 2–20× – versatile use for both short and long distances

• Built-in laser rangefinder (LRF) – precise distance measurement with ballistic support

• ATN Gen V Quad Core processor – fast operation and smooth performance of all functions

• Video recording 1280×960 px @ 60 fps – high-quality recording with Recoil Activated Video (RAV)

• Dual Stream – simultaneous video recording and live streaming

• Ballistic calculator, electronic compass, 3D gyroscope, and accelerometer – full support for accurate shooting

• One Shot Zero – quick and intuitive scope zeroing

• Connectivity: Wi-Fi, Bluetooth, USB-C, microSD slot (up to 64 GB)

• Battery life up to 10 hours, extendable with external power supply

• Standard 30 mm mounting rings, durable and weather-resistant housing

Applications

• Hunting – effective target acquisition at any time of day or night

• Law enforcement and professionals – precise distance data and reliability in harsh conditions

• Observation and monitoring – real-time video recording and streaming capability

Why choose this model

• Durable and ergonomic construction

• Superior image quality with 1280×1024 px sensor

• Integrated laser rangefinder for maximum precision

• Advanced aiming functions including One Shot Zero and ballistic calculator

• Video recording and streaming functions

Package contents

• ATN Mars 5 XD LRF 1280 2–20×50 scope

• Lens and eye covers

• USB-C cable

• Lens cloth

• Mounting set (30 mm rings)

• User manual

• Warranty card

Technical specifications

• SKU: MS51250LRF

• Laser Rangefinder: Yes

• Sensor: 1280×1024, 60 fps, 12 µm

• Magnification: 2–20×

• Field of View: 17.6°×13.2°

• Core: ATN Gen V Quad Core

• Eye Relief: 90 mm

• Video Record Resolution: 1280 @ 60 fps

• Ballistic Calculator: Yes

• Wi-Fi (Streaming, Gallery & Controls): iOS & Android

• Bluetooth: Yes

• 3D Gyroscope: Yes

• 3D Accelerometer: Yes

• Recoil Activated Video (RAV): Yes

• Electronic Compass: Yes

• Smooth Zoom: Yes

• Radar: Yes

• Reticles: Multiple patterns & color options, user-customizable reticles

• Reticle Editor: Yes

• Microphone: Yes

• MicroSD Card: 4 to 64 GB

• USB Type-C: Yes

• Mount: 30 mm HP QDM

• Battery Life (Li-ion): 10 hours

• Waterproof / IP Rating: Weather resistant

• Human Detection Range: 2150 m

• Human Recognition Range: 860 m

• Human Identification Range: 480 m

• Operating Temperature: –20°F to +120°F / –28°C to +48°C

• Dimensions: 341×76×56 mm

• Weight: 1.39 kg

• Warranty: 3 years
