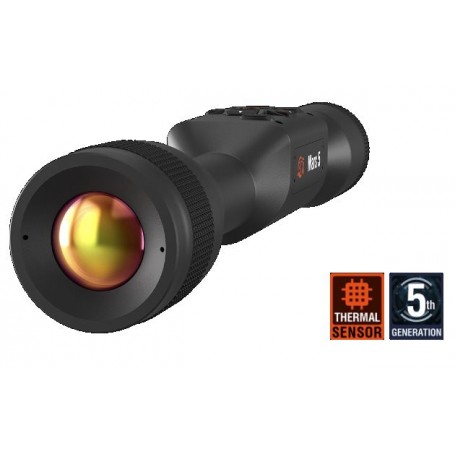

ATN Mars 5 640 3-24x35mm Thermal imaging scope (MS5635A)

The ATN Mars 5 640 3–24×35 is a next-generation thermal imaging scope designed for hunters and professionals who demand exceptional precision and reliability. Equipped with a high-resolution 640×480 px thermal sensor, premium optics, and a fast ATN Gen V processor, it delivers outstanding image clarity and stable targeting even in the most challenging conditions.

Main Features

• Thermal sensor: 640 × 480 px / 12 µm / 60 Hz

• Optical magnification: 3–24×35

• OLED display: 1024 × 768 px

• Video recording resolution: 1280 × 960 px at 60 fps

• Supports microSD, Wi-Fi, Bluetooth, and USB-C

• Rugged, water-resistant construction

• Battery life up to 10 hours

• Weight: approximately 1.1 kg

• Operating temperature: –28°C to +48°C

Applications

• Night and daytime hunting

• Wildlife observation and property protection

• Professional and tactical use

Included Accessories

• ATN Mars 5 640 3–24×35 thermal scope

• 30 mm mounting rings

• USB-C cable, lens cover, cleaning cloth

• User manual and manufacturer’s warranty

Technical Specifications

• SKU: MS5635A

• Laser Rangefinder: No

• Sensor: 640 × 480 px, 60 fps, 12 µm

• Magnification: 3–24x

• Field of View: 12.6° × 9.4°

• Core: ATN Gen V Quad Core

• Micro Display: OLED 1024 × 768

• Eye Relief: 90 mm

• Video Recording Resolution: 1280 @ 60 fps

• Ballistic Calculator: Yes

• Wi-Fi (Streaming, Gallery & Controls): iOS & Android

• Bluetooth: Yes

• 3D Gyroscope: Yes

• 3D Accelerometer: Yes

• RAV (Recoil Activated Video): Yes

• Electronic Compass: Yes

• Smooth Zoom: Yes

• Radar: Yes

• Reticles: Multiple patterns and color options, user-customizable

• Reticle Editor: Yes

• Microphone: Yes

• MicroSD Card: 4 to 64 GB

• USB Type-C: Yes

• Mount: 30 mm standard rings (included)

• Battery Life (Li-ion): 10 hours

• Waterproof Rating / IP Rating: Weather resistant

• Human Detection Range: 1600 m

• Human Recognition Range: 720 m

• Human Identification Range: 432 m

• Operating Temperature: -20°F to +120°F / -28°C to +48°C

• Dimensions: 316 × 56 × 54 mm

• Weight: 0.86 kg

• Warranty: 3 years
