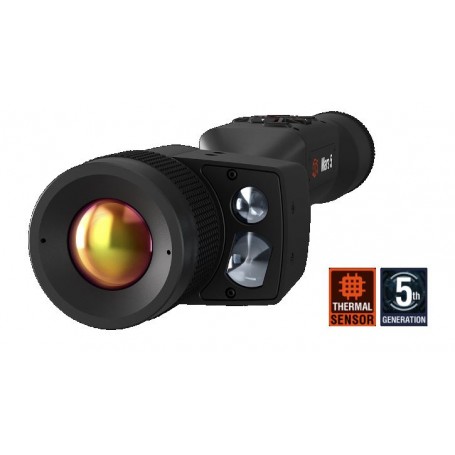

ATN Mars 5 640 3-24x35mm LRF Thermal imaging scope (MS5635LRF)

The ATN Mars 5 LRF 640 3–24×35 is an advanced thermal imaging scope from the Mars 5 series, equipped with a premium 640 × 480 px sensor, precision optics, and a built-in laser rangefinder. Designed for professionals, hunters, and law enforcement, it delivers cutting-edge analytical features and outstanding accuracy in all environments.

Technical Parameters

• Thermal sensor: 640 × 480 px, 12 µm, 60 Hz – high sensitivity and detection performance

• Optical magnification: 3–24×35, field of view: 12.6° × 9.4°

• Processor: ATN Gen V Quad Core – fast, smooth image processing

• OLED display: 1024 × 768 px – sharp, high-contrast visuals

• HD video recording: 1280 × 960 @ 60 fps with Recoil Activated Video (RAV) and Dual Stream support

• Built-in Laser Rangefinder (LRF) – range up to approximately 2900 yd (≈ 2650 m)

• One Shot Zero, Ballistic Calculator, Smart Mil-Dot Reticle, Electronic Compass, 3D Gyroscope / Accelerometer

• Connectivity: Wi-Fi, Bluetooth, microSD (up to 64 GB), USB-C

• Eye relief: 90 mm, compatible with standard 30 mm mount rings, weather-resistant housing

• Battery life: up to 10 hours, operating temperature: –28 °C to +48 °C

Applications

• Precision hunting – exceptional visibility and stable long-range aiming

• Tactical and law enforcement operations – rapid identification, situational awareness, and event documentation

• Wildlife observation and environmental monitoring – record and stream live footage in real time

Why Choose This Model

• Combines a high-resolution 640 px sensor with a compact 35 mm lens for optimal balance in dynamic field conditions

• Integrated laser rangefinder with full ballistic computation and intelligent aiming assistance (Smart Mil-Dot, One Shot Zero)

• Automatic video recording and live streaming features (RAV + Dual Stream)

• Robust construction ensuring full reliability in harsh climates and extended outdoor use

Included in the Set

• ATN Mars 5 LRF 640 3–24×35 thermal scope

• Lens cover and eyecup

• 30 mm mounting rings

• USB-C cable and lens cleaning cloth

• User manual and 3-year warranty card

Technical Specifications

• SKU: MS5635LRF

• Laser Rangefinder: Yes

• Sensor: 640 × 480 px, 60 fps, 12 µm

• Magnification: 3–24x

• Field of View: 12.6° × 9.4°

• Core: ATN Gen V Quad Core

• Micro Display: OLED 1024 × 768

• Eye Relief: 90 mm

• Video Recording Resolution: 1280 @ 60 fps

• Ballistic Calculator: Yes

• Wi-Fi (Streaming, Gallery & Controls): iOS & Android

• Bluetooth: Yes

• 3D Gyroscope: Yes

• 3D Accelerometer: Yes

• RAV (Recoil Activated Video): Yes

• Electronic Compass: Yes

• Smooth Zoom: Yes

• Radar: Yes

• Reticles: Multiple patterns and color options, user-customizable

• Reticle Editor: Yes

• Microphone: Yes

• MicroSD Card: 4 to 64 GB

• USB Type-C: Yes

• Mount: 30 mm standard rings (included)

• Battery Life (Li-ion): 10 hours

• Waterproof / IP Rating: Weather resistant

• Human Detection Range: 1600 m

• Human Recognition Range: 720 m

• Human Identification Range: 432 m

• Operating Temperature: –20°F to +120°F / –28°C to +48°C

• Dimensions: 341 × 75 × 56 mm

• Weight: 0.98 kg

• Warranty: 3 years
