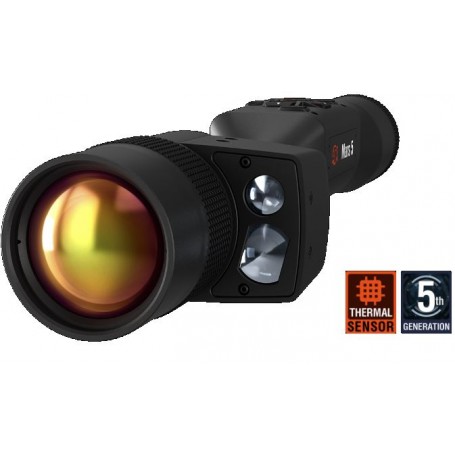

ATN Mars 5 640 4-32x50mm LRF Thermal imaging scope (MS5650LRF)

The ATN Mars 5 LRF 640 4–32×50 is a fifth-generation advanced thermal imaging scope. Equipped with a premium 640 × 480 px thermal sensor, precision optics, and an integrated laser rangefinder (LRF), this device delivers exceptional targeting accuracy and high-quality thermal imaging at long distances. It is designed for professionals, law enforcement, and demanding hunters who require top-tier performance and reliability.

Main Technical Features

• Thermal sensor: 640 × 480 px, 12 µm, 60 Hz – exceptional detail and detection sensitivity

• Magnification range: 4–32×50, field of view: 8.8° × 6.6°

• Processor: ATN Gen V Quad Core – fast processing, smooth operation, and access to advanced features

• Built-in laser rangefinder with distance measurement up to 3100 yd (approx. 2835 m) integrated with ballistic data

• OLED display: 1024 × 768 px with HD video recording (1280 × 960 @ 60 fps), Dual Stream, and RAV (Recoil Activated Video) functions

• Advanced zeroing support with One Shot Zero, ballistic calculator, and reticle editor

• Smart Mil-Dot Reticle and ATN Radar for dynamic aiming and location sharing between users

• Connectivity: Wi-Fi, Bluetooth, microSD slot (up to 64 GB), and USB-C port

• Eye relief: 90 mm, compatible with 30 mm standard mounts, weather-resistant construction

• Battery life up to 10 hours, operating temperature range: –28 °C to +48 °C

Applications

• Precision long-range hunting: Clear imaging and rangefinding enable accurate shots at extended distances

• Tactical and professional use: Rapid detection, detailed scene analysis, and event documentation

• Wildlife monitoring and environmental observation: Record and stream live footage directly from the device

Why Choose This Model

• Top-tier thermal sensor and optics in a single, high-performance device

• Clear HD video recording, real-time streaming, and automatic event capture (RAV)

• Integrated laser rangefinder and ballistic support for effective targeting in any environment

Included in the Set

• ATN Mars 5 LRF 640 4–32×50 thermal scope

• Lens cover and eyecup

• 30 mm mounting rings

• USB-C cable and lens cleaning cloth

• User manual and 3-year warranty card

Technical Specifications

• SKU: MS5650LRF

• Laser Rangefinder: Yes

• Sensor: 640 × 480 px, 60 fps, 12 µm

• Magnification: 4–32x

• Field of View: 8.8° × 6.6°

• Core: ATN Gen V Quad Core

• Micro Display: OLED 1024 × 768

• Eye Relief: 90 mm

• Video Recording Resolution: 1280 @ 60 fps

• Ballistic Calculator: Yes

• Wi-Fi (Streaming, Gallery & Controls): iOS & Android

• Bluetooth: Yes

• 3D Gyroscope: Yes

• 3D Accelerometer: Yes

• RAV (Recoil Activated Video): Yes

• Electronic Compass: Yes

• Smooth Zoom: Yes

• Radar: Yes

• Reticles: Multiple patterns and color options, user-customizable

• Reticle Editor: Yes

• Microphone: Yes

• MicroSD Card: 4 to 64 GB

• USB Type-C: Yes

• Mount: 30 mm standard rings (included)

• Battery Life (Li-ion): 10 hours

• Waterproof / IP Rating: Weather resistant

• Human Detection Range: 2150 m

• Human Recognition Range: 960 m

• Human Identification Range: 570 m

• Operating Temperature: –20°F to +120°F / –28°C to +48°C

• Dimensions: 341 × 75 × 56 mm

• Weight: 1.01 kg

• Warranty: 3 years
