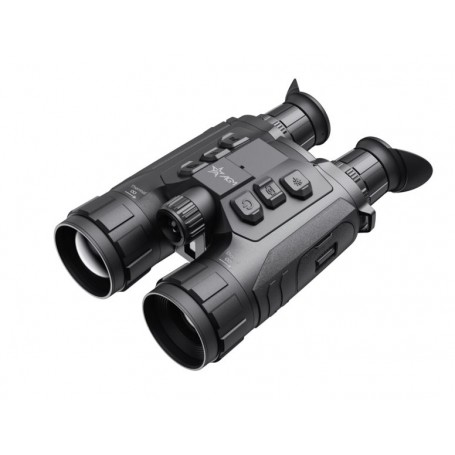

AGM observir lrf 60-1280 thermal and digital binocular (OBSE60-1280-LRF)

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is one of the most advanced and feature-rich optical systems available. Its primary performance comes from the main thermal viewing channel, powered by a high-sensitivity 12-micron detector. In addition to thermal imaging, the ObservIR LRF includes a digital day/night channel, which helps users positively identify targets detected thermally. A built-in 1,000-meter laser rangefinder further enhances its capabilities, complemented by 64 GB of internal storage and Wi-Fi support.

The ObservIR LRF monocular series incorporates numerous software upgrades and includes many of the features found across AGM’s thermal products. These include a high-sensitivity thermal sensor, a 50 mm F1.0 objective lens, a 3840×2160 ultra-low-light CMOS sensor, multiple viewing modes and color palettes, picture-in-picture functionality, an integrated laser rangefinder, GPS, a long-range IR illuminator, and up to 8 hours of runtime using removable rechargeable 18650 batteries. Additional features include a USB-C port for external power and an IP67 waterproof rating. Each package contains four 18650 batteries, a wrist strap, and a charger.

Key Features

• Dual-spectrum thermal and digital day/night system

• 12 μm high-sensitivity thermal sensor

• 1280×1024 thermal resolution

• 2.5× to 28× thermal magnification

• Digital image processing technology

• Ultra-low-illumination optical channel

• 3840×2160 optical resolution

• Built-in IR illuminator

• Eye-safe 1,000 m laser rangefinder

• 1920×1080, 0.49-inch OLED display

• Digital magnetic compass

• Integrated GPS

• Video/audio recording and still-image capture

• 64 GB internal EMMC storage

• Wi-Fi hotspot functionality

• Standby mode for power saving

• Up to 8 hours of continuous operation per charge

• Automatic screen-off for energy conservation

• External power support

• Rugged housing with rubber overmolding

• Waterproof and dustproof construction

Package Includes

4× 18650 rechargeable batteries, battery charger, USB cable, power adapter, tripod adapter, quick start guide, user manual, lens cloth, and neck strap.

Specifications

Thermal System

• Detector: 12 μm VOx uncooled focal plane array

• Resolution: 1280 × 1024

• Refresh rate: 25 Hz

• NETD: Under 18 mK (25°C, F#=1.0)

• Lens: 60 mm, F1.0

• Field of view: 14.6° × 8.8°

• Magnification: 2.5× – 28×

• Diopter adjustment: −5 to +3

• Detection range (human-sized target): 3,100 m

• FFC (flat field correction): Auto, manual, external

• Color palettes: Black Hot, White Hot, Red Hot, Fusion

• Highest-temperature spot tracking: Supported

• Scene modes: Jungle, Recognition

Optical/Digital Channel

• Sensor: 3840×2160, 1/1.8" progressive-scan CMOS

• Magnification: 5.5× – 22×

• Field of view: 7.3° × 4.1°

• Lens: 60 mm, F2.2

• Display modes: Day, Night, Auto

• IR illumination: Built-in 850 nm Smart IR with adjustable power and beam angle

• Night viewing distance: 400 m

Rangefinding and Display

• Laser rangefinder distance: Up to 1,000 m

• Accuracy: ±1 m

• Wavelength: 905 nm

• Safety class: Class 1

• Display: 1920×1080 OLED, 0.49 in, 50 FPS

Storage and Connectivity

• Built-in storage: 64 GB EMMC

• Recording: Video and audio

• Image capture: Supported

• Wi-Fi hotspot: Supported

• Sleep mode: Yes

Ergonomics and Power

• Interpupillary adjustment: 60–74 mm

• Battery type: Two removable 18650 rechargeable batteries

• Battery life: Up to 8 hours (25°C, Wi-Fi/IR/LRF off)

• Power input: 5 VDC / 2 A, USB-C

• External power support: Yes

Environmental and Physical

• Operating temperature: −20°C to 55°C (−4°F to 131°F)

• Protection rating: IP67 (waterproof)

• Dimensions: 230 × 143 × 80 mm (9.1 × 5.6 × 3.1 in)

• Weight (without batteries): 0.98 kg (2.16 lb)
