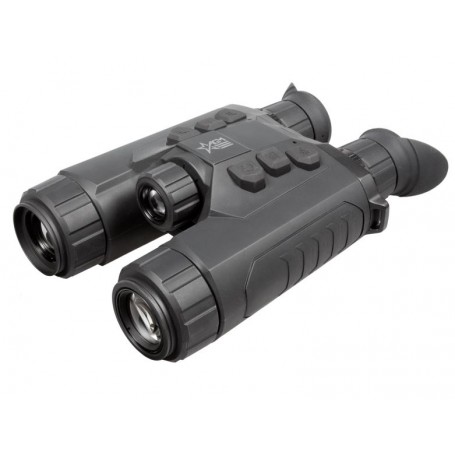

AGM observir lrf 35-384 thermal and digital binocular (OBSE35-384-LRF)

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is designed as one of the most advanced and feature-rich optical systems available. Its primary performance is driven by the main thermal viewing channel, which uses a highly sensitive 12-micron detector. Unlike typical thermal binoculars, the ObservIR LRF also includes a digital day/night channel that greatly improves identification of targets first located through the thermal image. A built-in 1,000-meter laser rangefinder adds another level of capability, supported by 64 GB of internal memory and Wi-Fi compatibility.

The ObservIR LRF monocular line includes extensive software enhancements and numerous features found throughout AGM’s thermal product range. These include a high-sensitivity thermal detector, a 35 mm F1.0 objective lens, a 3840×2160 ultra-low-light CMOS sensor, multiple viewing modes, a variety of color palettes, picture-in-picture mode, an integrated laser rangefinder, a GPS module, a long-range IR illuminator, and up to 8 hours of battery life using removable 18650 rechargeable batteries. Additional features include a USB Type-C port for external power and an IP67 waterproof rating. Each package also contains four 18650 batteries, a wrist strap, and a charger.

Key Features

• Dual-spectrum thermal and digital day/night system

• 12 μm high-sensitivity thermal sensor

• 384×288 thermal resolution

• 4× to 20× thermal magnification

• Digital image processing technology

• Ultra-low-illumination optical channel

• 3840×2160 optical resolution

• Built-in IR illuminator

• Eye-safe 1,000 m laser rangefinder

• 1920×1080, 0.49-inch OLED display

• Digital magnetic compass

• Integrated GPS module

• Video/audio recording and still-image capture

• 64 GB internal EMMC storage

• Wi-Fi hotspot functionality

• Standby mode

• Up to 8 hours of operation on a single charge

• Automatic screen-off power-saving feature

• Support for external power supply

• Rugged housing with rubber over-molding

• Waterproof and dustproof construction

Package Includes

4× 18650 rechargeable batteries, battery charger, USB cable, power adapter, tripod adapter, quick start guide, user manual, lens cloth, and neck strap.

Specifications

Thermal System

• Detector: 12 μm VOx uncooled focal plane array

• Resolution: 384 × 288

• Refresh rate: 50 Hz

• NETD: Less than 15 mK (25°C, F#=1.0)

• Lens: 35 mm, F1.0

• Field of view: 7.5° × 5.7°

• Magnification: 4× – 20×

• Diopter adjustment: −5 to +3 dpt

• Detection range (6 ft object): 1,800 m

• FFC: Auto, manual, external

• Color palettes: Black Hot, White Hot, Red Hot, Fusion

• Highest-temperature spot tracking: Supported

• Scene modes: Jungle, Recognition

Optical/Digital Channel

• Sensor: 3840×2160, 1/1.8" progressive-scan CMOS

• Magnification: 5.5× – 22×

• Field of view: 7.3° × 4.1°

• Lens: 60 mm, F2.2

• Display modes: Day, Night, Auto

• IR illumination: Built-in 850 nm Smart IR with adjustable power and beam angle

• Night viewing distance: 400 m

Rangefinding & Display

• Laser rangefinder distance: Up to 1,000 m

• Accuracy: ±1 m

• Wavelength: 905 nm

• Safety class: Class 1

• Display: 1920×1080 OLED, 0.49 in, 50 FPS

Recording & Connectivity

• Built-in storage: 64 GB EMMC

• Video/audio recording: Supported

• Image capture: Supported

• Wi-Fi hotspot: Supported

• Sleep mode: Supported

Power & Ergonomics

• Interpupillary adjustment: 60–74 mm

• Battery type: Two removable 18650 rechargeable batteries

• Battery life: Up to 8 hours (25°C, Wi-Fi/IR/LRF off)

• Power input: 5 VDC / 2 A, USB Type-C

• External power support: Yes

Environmental & Physical

• Operating temperature: −20°C to 55°C (−4°F to 131°F)

• Protection rating: IP67

• Dimensions: 221 × 142 × 71 mm (8.7 × 5.6 × 2.8 in)

• Weight (without batteries): 0.91 kg (2.01 lb)
