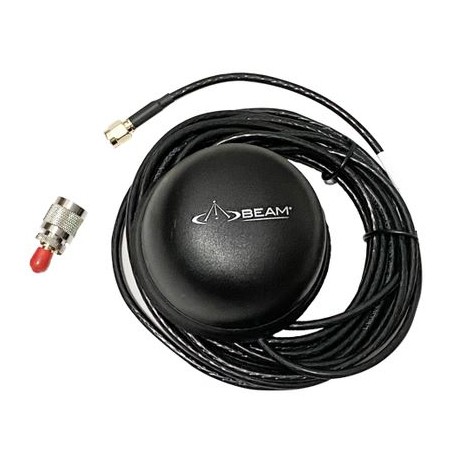

Beam BOLT Mount Antenna (RST220)

The RST220 Beam Bolt Mount Antenna is designed for land-based use, particularly for vehicle installations and machine-to-machine (M2M) applications. It is well suited for operation in demanding and harsh environments, delivering reliable performance where durability is essential.

Key Features and Benefits

• Approved for Iridium use
• Bolt mount installation
• Compact and lightweight design
• Engineered for severe weather conditions with IP67, IP69K, and IK09 ratings
• Ground plane independent
• Supplied with 5 meters of cable
• Backed by a 12-month warranty

Physical Specifications

Color: Black
Material: ABS
Mounting Type: Bolt mount

Dimensions
Antenna (Diameter x Height): Ø 77.3 x 36.5 mm (Ø 3 x 1.43 inches)
Packaging box (Length x Width x Height): 165 x 151 x 84 mm (6.5 x 6 x 3.3 inches)

Weight
Antenna: 0.29 kg (0.64 lb)
Packaging box: 0.38 kg (0.83 lb)

Environmental Specifications

Operating and Storage Temperature:
-40°C to +85°C (-40°F to +185°F)

Ingress and Impact Protection:
IP67, IP69K, IK09

General Electrical Specifications

Satellite Network: Iridium
Frequency Range: 1616 – 1626.5 MHz
Polarization: Right-hand circular
Axial Ratio: 3 dB maximum
Peak Gain: Approximately 4.5 dBiC
Impedance: 50 ohms
VSWR: Approximately 1.2:1
Cable Type and Length: 5 meters DACAR 302

Connector

Iridium Connector Type: TNC male
