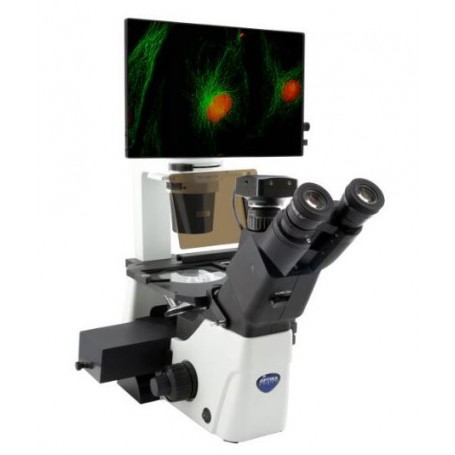

Optika Inverted microscope IM-300LD4D,digital,infinity,plan 100x-400x,10x/22,AL/DL,LED,IOS LWD PLAN F,4 filter slots (82652)

Optika Inverted Microscope IM-300LD4D, Digital, Fluorescence, Infinity System, Plan 100x–400x, LED (82652)

The Optika IM-300LD4D is a modern inverted fluorescence microscope designed for professional use in research, diagnostics, and education. It combines a modular design with integrated digital technology and powerful LED fluorescence illumination, making it a comprehensive solution for advanced laboratory work.

Optics and Mechanical Design

The ergonomic trinocular tube is inclined at 45° and features an adjustable interpupillary distance from 50 to 75 mm for comfortable operation. Wide-field plan eyepieces (WF10x/22) with diopter adjustment ensure clear and precise viewing.

A smooth, ball-bearing 5-position objective turret holds three supplied IOS LWD U-PLAN F objectives (10x, 20x, 40x). These lenses are anti-fungal coated and provide bright, high-contrast images with generous working distance. The infinity-corrected optical system guarantees flexibility and excellent optical performance.

Stage and Condenser

The large microscope stage (250 × 290 mm) includes a glass insert and metal holder, accommodating slides and Petri dishes with ease.

A long working distance condenser (NA 0.30, working distance 72 mm) allows flexible use with a wide variety of samples and containers.

LED Fluorescence System

The integrated fluorescence unit features four LED filter cube positions and a modular design. It provides significantly higher light output compared to conventional systems. Key benefits include immediate readiness for use, no lamp replacement, and no warm-up time.

Integrated Digital Equipment

This digital version includes a built-in micro PC with a 15.6" 4K touchscreen, a 6 MP camera, and Optika ProView software. Images can be captured, documented, and analyzed directly on the device. A wireless mouse and keyboard are also included for convenient operation.

Key Features at a Glance

• 4-position LED filter cube system

• Up to 35% higher light intensity

• Integrated 15.6" 4K touchscreen PC with 6 MP camera

• Large microscope stage for slides and Petri dishes

• No lamp replacement required

• Anti-fungal coated objectives and long-lasting LED technology

Technical Specifications

Optical System
Type: Inverted microscope
Design: Infinity-corrected
Magnification range: 100x, 200x, 400x
Eyepieces: 10x/22 wide-field, plan
Objectives:

• IOS LWD U-PLAN F 10x/0.30, W.D. 7.11 mm

• IOS LWD U-PLAN F 20x/0.45, W.D. 5.91 mm

• IOS LWD U-PLAN F 40x/0.65, W.D. 1.61 mm
  Objective type: Plan achromatic

Illumination
Light source: LED (X-LED8; 8W LED, 6300 K; high-efficiency 3.5W LED)
Color temperature: 6300 K
Illumination modes: Transmitted light and incident light
Brightfield: Yes
Fluorescence: Yes

Condenser
Type: LWD
Numerical aperture: 0.30
Working distance: 72 mm

Mechanical Features
Design: Trinocular
Viewing angle: 45°
Focusing: Coarse and fine adjustment with 0.002 mm graduation and locking function
Stage size: 250 × 230 mm

General Information
Series: IM-300
Color: Grey/Black
Height: 625 mm
Length: 540 mm
Width: 365 mm
Weight: 13.5 kg

Fields of Application
Medicine: Yes
Biology: Yes
Biochemistry: Yes
University use: Yes
Central laboratories: Yes
Marine biology: Yes
