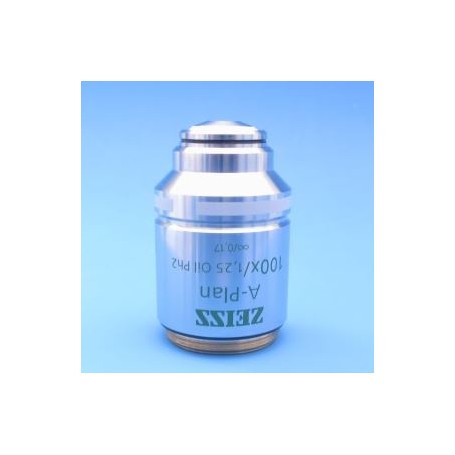

ZEISS Objective A-Plan 100x/1.25 Oil Ph2 wd 0.22mm (78919, 421091-9811-000)

ZEISS Objective A-Plan 100x/1.25 Oil Ph2, Working Distance 0.22 mm (78919, 421091-9811-000)

The ZEISS A-Plan 100x/1.25 Oil Ph2 objective is a high-precision oil immersion lens developed for advanced microscopic observation. It offers 100x magnification with a numerical aperture of 1.25, ensuring exceptional resolution and detailed image quality.

This infinity-corrected objective features a plan design for a flat field of view and includes a spring-loaded front element for added protection. Designed for oil immersion applications, it is suitable for high-magnification work requiring accurate and reliable optical performance.

Optical Specifications

• Objective type: A-Plan

• Magnification: 100x

• Numerical aperture: 1.25

• Image scale: 1:100

• Optical system: Infinity-corrected

• Field curvature: Plan

• Cover glass correction: No

• Immersion lens: Yes

• Suspension (spring-loaded): Yes

Mechanical Specification

• Working distance: 0.27 mm

Fields of Application

• Education

• University research

Additional Information

• Supplier product number: 421091-9811-000
