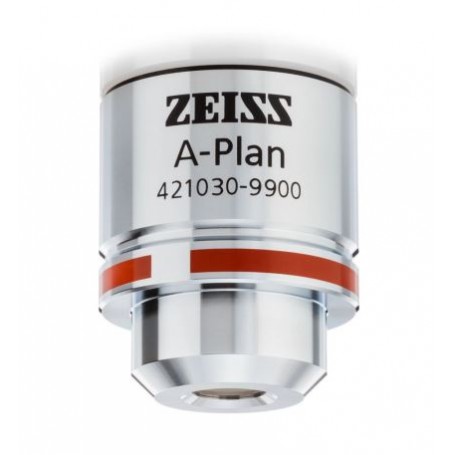

ZEISS Objective A-Plan 5x/0.12 M27 (77613, 421030-9900-000)
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

ZEISS Objective A-Plan 5x/0.12 M27 (77613, 421030-9900-000)

The ZEISS A-Plan 5x/0.12 M27 objective is a plan-achromatic lens designed for both routine and research microscopy. It provides 5x magnification with a numerical aperture of 0.12 and supports cover glass correction from 0 to 1.00 mm. The working distance is 10.1 mm, allowing comfortable specimen handling and easy focusing. A-Plan objectives offer a reliable alternative to Achroplan lenses, delivering high-contrast images across a field number of up to 23 mm.

$380.13 Tax included

309.05 Tax excluded

$309.05 Net price (excl. VAT)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

ZEISS Objective A-Plan 5x/0.12 M27 (77613, 421030-9900-000)

The ZEISS A-Plan 5x/0.12 M27 objective is a plan-achromatic lens designed for both routine and research microscopy. It provides 5x magnification with a numerical aperture of 0.12 and supports cover glass correction from 0 to 1.00 mm. The working distance is 10.1 mm, allowing comfortable specimen handling and easy focusing.

A-Plan objectives offer a reliable alternative to Achroplan lenses, delivering high-contrast images across a field number of up to 23 mm. They are suitable for various contrast techniques, including brightfield and fluorescence applications within the visible spectral range.

Optical Specifications

  • Objective type: A-Plan (Plan Achromatic)

  • Magnification: 5x

  • Numerical aperture: 0.12

  • Optical system: Infinity-corrected

  • Field curvature: Plan

  • Color correction: Achromatic

  • Cover glass correction: Yes (0–1.00 mm)

  • Field of view value: 23

Mechanical Specification

  • Working distance: 10.1 mm

Supported Contrast Methods

  • Brightfield: Yes

  • Fluorescence (visible range): Yes

  • Phase contrast: No

Additional Information

  • Supplier product number: 421030-9900-000

Data sheet
Brand Zeiss
Reference E6Z0F9L92K
