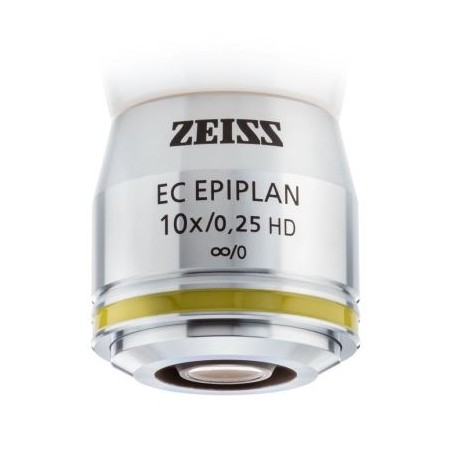

ZEISS Objective Lenses EC Epiplan 10x/0.25 HD wd 11.0mm (78946, 422040-9961-000)

The ZEISS EC Epiplan 10x/0.25 HD objective is a high-definition lens designed for technical and materials microscopy. It provides 10x magnification with a numerical aperture of 0.25, delivering sharp, high-contrast images with reliable detail. This infinity-corrected objective features a semi-planachromatic design for improved field flatness and color correction.

$1,213.06 Tax included

986.23 Tax excluded

$986.23 Net price (excl. VAT)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

ZEISS Objective Lens EC Epiplan 10x/0.25 HD, Working Distance 11.0 mm (78946, 422040-9961-000)

The ZEISS EC Epiplan 10x/0.25 HD objective is a high-definition lens designed for technical and materials microscopy. It provides 10x magnification with a numerical aperture of 0.25, delivering sharp, high-contrast images with reliable detail.

This infinity-corrected objective features a semi-planachromatic design for improved field flatness and color correction. With a long working distance of 11.0 mm, it allows convenient sample handling and comfortable focusing during inspection tasks.

Optical Specifications

  • Objective type: EC Epiplan HD

  • Magnification: 10x

  • Numerical aperture: 0.25

  • Optical system: Infinity-corrected

  • Field curvature: Semi-planachromatic

  • Phase contrast: No

  • Cover glass correction: No

  • Immersion lens: No

  • Suspension: No

  • Image scale: 1:100

Mechanical Specification

  • Working distance: 11.0 mm

Fields of Application

  • Education

  • University research

Additional Information

  • Supplier product number: 422040-9961-000

Data sheet
Brand Zeiss
Reference 5PRYAQVOLP
