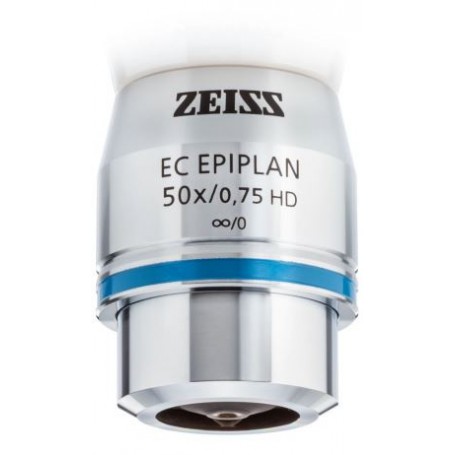

ZEISS Objective EC Epiplan 50x/0.75 HD wd 1.0mm (78949, 422070-9961-000)

The ZEISS EC Epiplan 50x/0.75 HD objective is a high-definition lens developed for technical and materials microscopy. It delivers 50x magnification with a numerical aperture of 0.75, ensuring sharp, high-contrast images with excellent detail resolution. This infinity-corrected objective features a semi-planachromatic design for improved field flatness and color correction.

$2,068.37 Tax included

1681.6 Tax excluded

$1,681.60 Net price (excl. VAT)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

ZEISS Objective EC Epiplan 50x/0.75 HD, Working Distance 1.0 mm (78949, 422070-9961-000)

The ZEISS EC Epiplan 50x/0.75 HD objective is a high-definition lens developed for technical and materials microscopy. It delivers 50x magnification with a numerical aperture of 0.75, ensuring sharp, high-contrast images with excellent detail resolution.

This infinity-corrected objective features a semi-planachromatic design for improved field flatness and color correction. It includes a spring-loaded front element for additional protection and offers a working distance of 1.0 mm, allowing precise focusing and convenient specimen access.

Optical Specifications

  • Objective type: EC Epiplan HD

  • Magnification: 50x

  • Numerical aperture: 0.75

  • Optical system: Infinity-corrected

  • Field curvature: Semi-planachromatic

  • Phase contrast: No

  • Cover glass correction: No

  • Immersion lens: No

  • Suspension (spring-loaded): Yes

  • Image scale: 1:100

Mechanical Specification

  • Working distance: 1.0 mm

Fields of Application

  • Education

  • University research

Additional Information

  • Supplier product number: 422070-9961-000

Data sheet
Brand Zeiss
Reference C5K9TN8T7V
