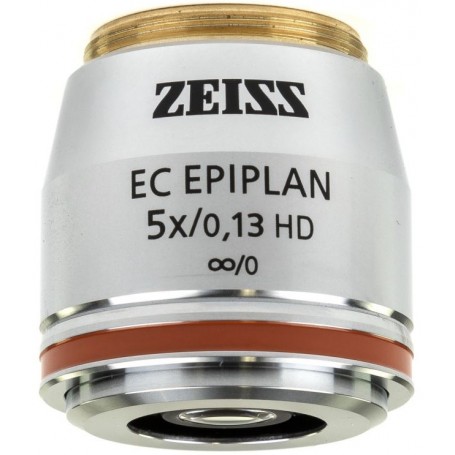

ZEISS Objective EC Epiplan 5x/0.13 HD wd 11.8mm (78945, 422030-9961-000)
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

ZEISS Objective EC Epiplan 5x/0.13 HD wd 11.8mm (78945, 422030-9961-000)

The ZEISS EC Epiplan 5x/0.13 HD objective is a high-definition lens developed for technical and materials microscopy. It offers 5x magnification with a numerical aperture of 0.13, providing clear, high-contrast images with reliable detail. This infinity-corrected objective features a semi-planachromatic design for improved field flatness and color correction.

$1,145.99 Tax included

931.7 Tax excluded

$931.70 Net price (excl. VAT)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

ZEISS Objective EC Epiplan 5x/0.13 HD, Working Distance 11.8 mm (78945, 422030-9961-000)

The ZEISS EC Epiplan 5x/0.13 HD objective is a high-definition lens developed for technical and materials microscopy. It offers 5x magnification with a numerical aperture of 0.13, providing clear, high-contrast images with reliable detail.

This infinity-corrected objective features a semi-planachromatic design for improved field flatness and color correction. With a long working distance of 11.8 mm, it allows comfortable specimen handling and easy focusing during inspection and laboratory tasks.

Optical Specifications

  • Objective type: EC Epiplan HD

  • Magnification: 5x

  • Numerical aperture: 0.13

  • Optical system: Infinity-corrected

  • Field curvature: Semi-planachromatic

  • Phase contrast: No

  • Cover glass correction: No

  • Immersion lens: No

  • Suspension: No

  • Image scale: 1:100

Mechanical Specification

  • Working distance: 11.8 mm

Fields of Application

  • Education

  • University research

Additional Information

  • Supplier product number: 422030-9961-000

Data sheet
Brand Zeiss
Reference H7ON81GCW9
