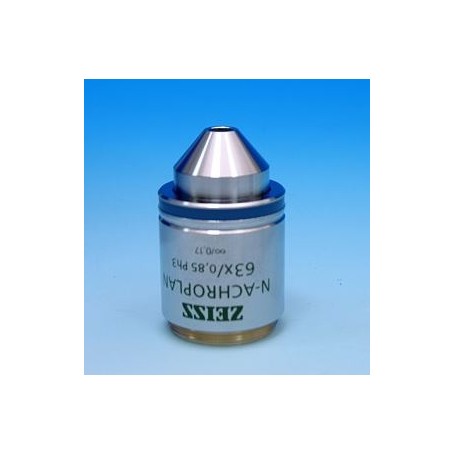

ZEISS Objectives N-Achroplan 63x/0.85 Ph3 wd 0.20mm (78901, 420981-9910-000)

The ZEISS N-Achroplan 63x/0.85 Ph3 objective is designed for high-magnification microscopy in laboratory and academic environments. With plan optical correction, it delivers a flat and sharply focused image across the entire field of view. Its infinity-corrected optical system ensures compatibility with modern microscope platforms, supporting reliable imaging performance. This objective is well suited for educational institutions and university-level research applications.

Optical Specifications
Image Scale: 1:100
Field Curvature: Plan
Cover Glass Correction: No
Suspension: Yes
Immersion Lens: Yes
Infinity Corrected: Yes
Magnification: 63x
Optical System: Infinity

Performance Specifications
Image Scale: 63
Magnification: 63x
Numerical Aperture: 0.25
Phase Contrast: No

Mechanical Specifications
Working Distance: 0.27 mm

Field of Application
Education: Yes
University Use: Yes

Additional Information
Supplier Product Number: 420981-9910-000
