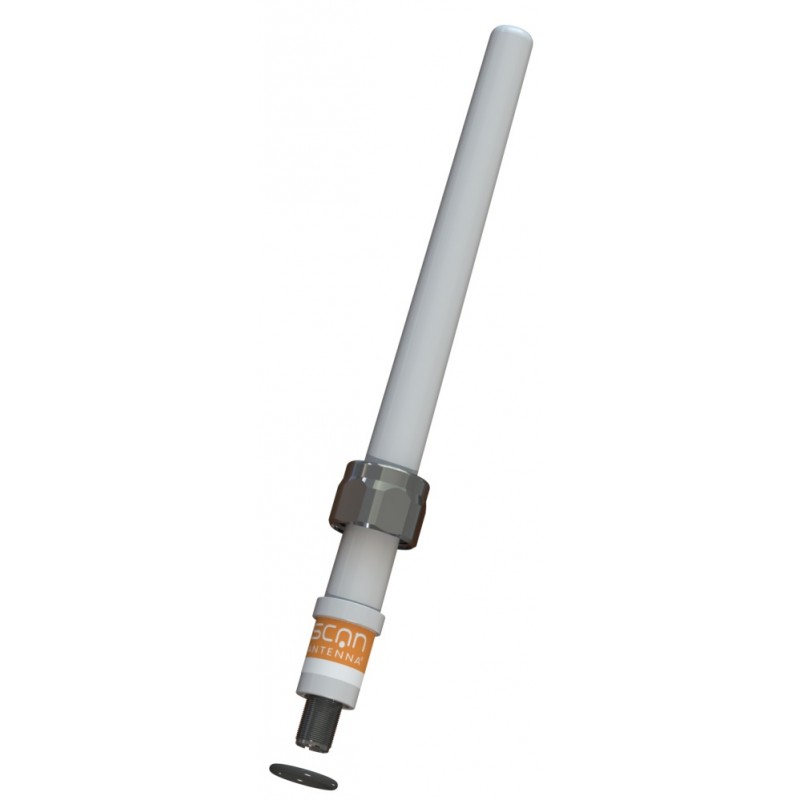

Scan Antenna HF100 RX Active low-profile broadband RX antenna, bag (13100-431)

An active LF/HF antenna designed for receive-only applications, ideal for GMDSS systems. Its low-profile, end-fed design eliminates the need for a groundplane, making it suitable for versatile installations.

• Active LF/HF antenna for professional receive-only applications.
• Low-profile end-fed antenna design tailored for GMDSS systems.
• No groundplane required.
• Includes a Mounting Kit for installation on G1"-11 threaded poles or brackets.
• Dedicated power supply available (must be ordered separately).

Packaging Information

• Type: Individually packed in a polybag.
• Size: Approx. 0.45 m.
• Weight: Approx. 0.3 kg.

Electrical Specifications

• Frequency Range: 0.1 - 30 MHz.
• Bandwidth: 29.9 MHz.
• Impedance: 50 ohms.
• Polarisation: Vertical.
• Supply Voltage: 8-12 VDC.
• Current Consumption: 30 mA (average).

Mechanical Specifications

• Color: White and chrome.
• Height: Approx. 315 mm.
• Weight: Approx. 200 g.
• Mounting: Fits on a 1" threaded pole (G1"-11 thread) with the included Revolving Nut Kit.
• Mounting Place: Suitable for mast installations.
• Mounting Instructions: Included in the package.
• Materials: Constructed from PE, PCB, copper, PTFE, and chrome-plated solid brass.
• Operating Temperature Range: -55°C to +70°C (compliant with IEC 60068-2-1 and IEC 60068-2-2).
• Connector: UHF-female.
• Cable: Not supplied.
• Ingress Protection: Rated IP66.
• Serial Number: Displayed on the product label.

Ordering Information

• Part Number: 13100-431 (Antenna + 1" Revolving Nut in polybag).
