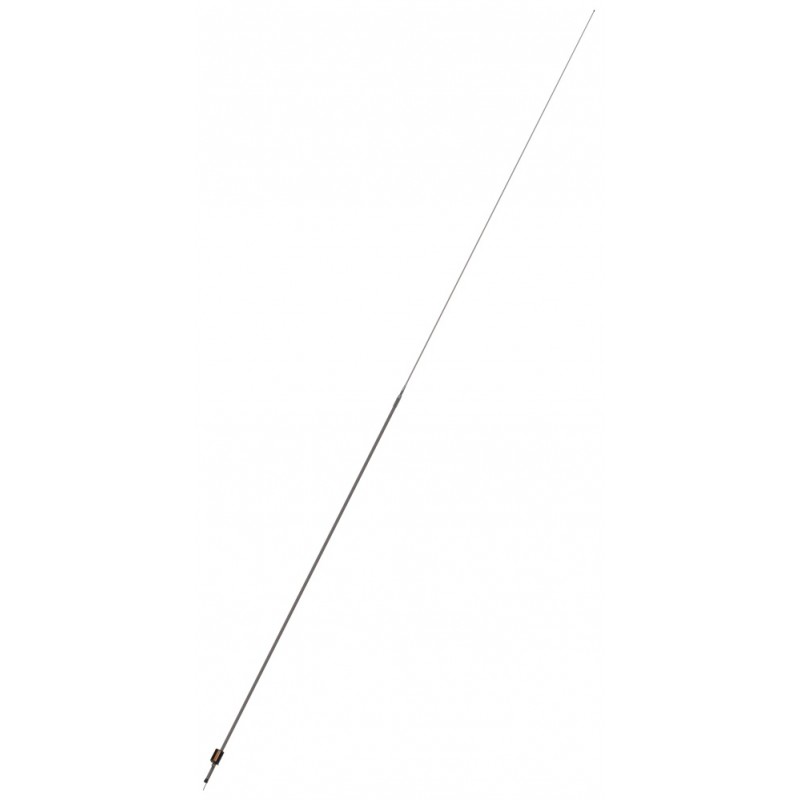

Scan Antenna HF610 TX/RX 6 m Fibreglass Antenna with coaxial connection box, With brackets (13612-012)

A high-quality 6-meter HF antenna designed for professional use, optimized for GMDSS installations. Its rugged construction, chrome-plated solid brass joints, and full omni-directional radiation pattern ensure exceptional reliability and performance. The antenna is rail-mounted and fed via a screw terminal inside a connection box, supporting standard coaxial cables with diameters of Ø 5-10 mm.

• Professional-grade HF antenna tailored for GMDSS systems.
• Durable design with chrome-plated solid brass joints.
• Rail or pole mounting compatible with Ø 30-90 mm (mounting kit not supplied).
• Screw terminal connection inside the integrated connection box.
• Delivers a full omni-directional radiation pattern.

Packaging Information

• Type: Carton tube.
• Size: Ø 86 x 2900 mm.
• Weight: Approx. 5.2 kg.

Electrical Specifications

• Frequency Range: 1.4 - 30 MHz (MF and HF).
• Polarisation: Vertical.
• Max Input Power: 750 W PEP.
• Static Capacitance: 70 pF.
• Insulation Resistance: 10 GOhm.
• Electric Length: 5550 mm.

Mechanical Specifications

• Color: White.
• Height: 6 m.
• Weight: 2.2 kg.
• Diameter: Ø 21 to Ø 5 mm.
• Mounting Location: Suitable for rail or pole installations (Ø 30-90 mm).
• Mounting Instructions: Included in the package.
• Materials: PU-painted heavy-duty glass-fiber tubes and chrome-plated solid brass.
• Survival Wind Speed: Withstands up to 55 m/s (125 mph).
• Operating Temperature Range: -55°C to +70°C (compliant with IEC 60068-2-1 and IEC 60068-2-2).
• Connector: Screw terminal inside the connection box.
• Cable: Not supplied; use a standard coaxial cable (Ø 5-10 mm).
• Serial Number: Displayed on the product label.

Ordering Information

• Part Number: 13612-012 (supplied with brackets).
