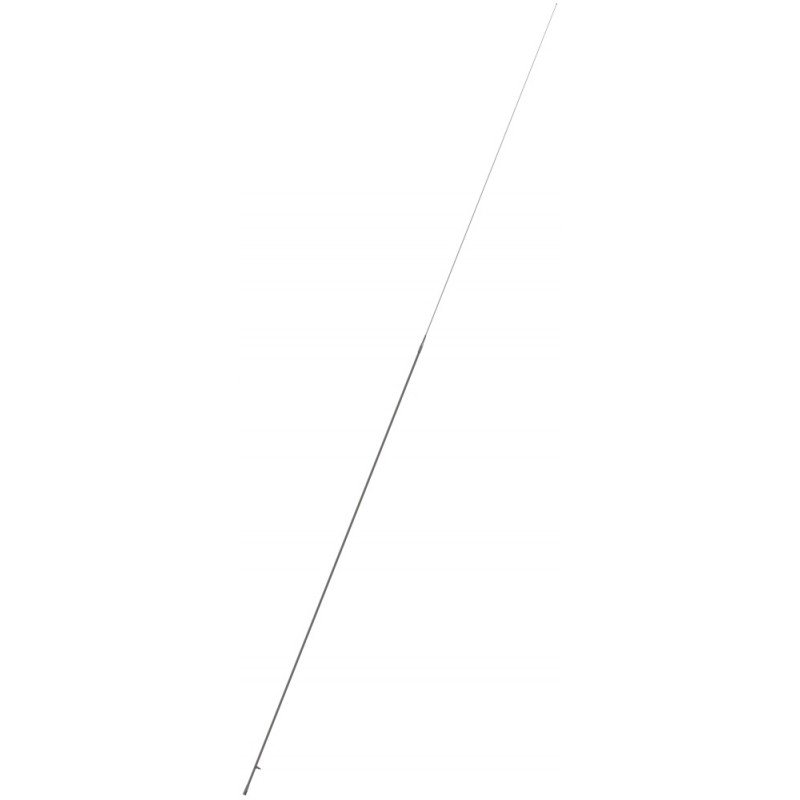

Scan Antenna HF701 TX/RX 7 m two-part LF/HF Fibreglass Antenna with 1''-14NF threaded base (13702-082)

Details

• High-quality 7 m high HF antenna built for professional use.
• Designed for GMDSS installations, ensuring reliable maritime communication.
• Rugged construction for enhanced durability and performance.
• Features chrome-plated solid brass joints for long-term reliability.
• Mounting is optimized for a 4-Way Mount and Upper Support Bracket (not supplied) to enable easy lay-down functionality.
• Side-fed via open single wire, suitable for seamless integration.
• Offers a full omni-directional radiation pattern for comprehensive coverage.

Packaging Information

• Type: Carton tube
• Size: Ø 60 x 4000 mm
• Weight: Approx. 4.6 kg

Electrical Specifications

• Frequency: 1.4–30 MHz (MF and HF)
• Polarization: Vertical
• Max. Input Power: 1000 W PEP
• Static Capacitance: 80 pF
• Insulation Resistance: 10 GOhm
• Electric Length: 6820 mm

Mechanical Specifications

• Color: White
• Height: 7 m
• Weight: 2.7 kg
• Diameter: Ø 21 to Ø 5 mm
• Mounting: Deck or wall mounting with a ratchet mount and upper support bracket (not supplied)
• Mounting Place: Suitable for deck or wall installations
• Mounting Instruction: Provided with the product
• Materials: PU-painted heavy-duty fiberglass tubes and chromed solid brass for robust construction
• Survival Wind Speed: Withstands up to 55 m/s (125 mph)
• Operating Temperature: -55°C to +70°C (tested per IEC 60068-2-1 and IEC 60068-2-2 standards)
• Connector: Screw terminal for reliable connections
• Cable: Not included (use open single wire)
• Serial No.: Marked on the product label

Ordering Information

• P/N: 13702-082
