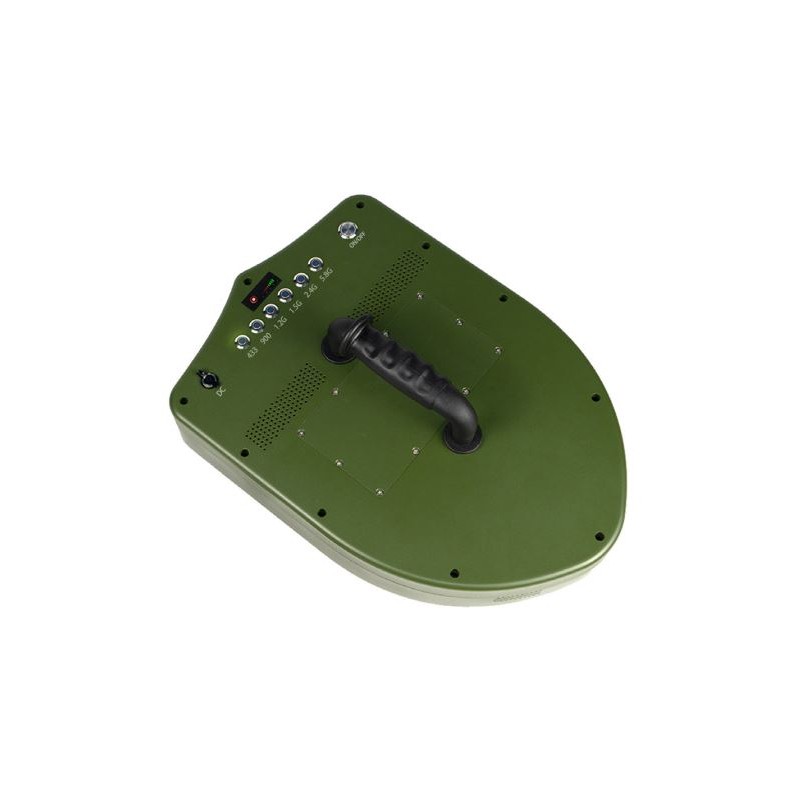

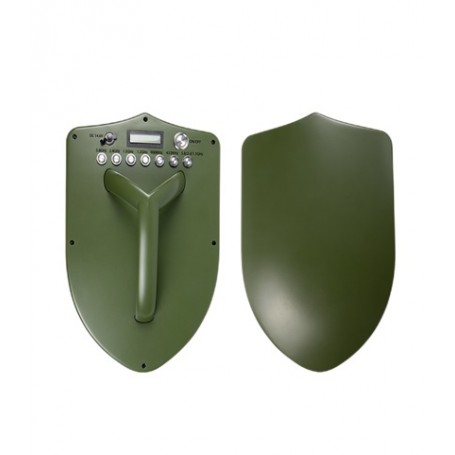

XBY Xiangboyi XY2312 - Shield type anti drone device (6 band)

Forced landing capabilities for DJI-type drones on frequencies 1.5G, 2.4G, and 5.8G, as well as the ability to repel DJI-class drones on frequencies 2.4G and 5.8G. Forced landing functionalities for DOTON drones on frequencies 1.5G, 2.4G, 5.2G, and 5.8G, along with the capability to repel drones on frequencies 2.4G, 5.2G, and 5.8G.

$3,074.96
Tax included

2499.97 $ net price (non-EU countries)

The minimum purchase order quantity for the product is 20.

100% secure payments

Description

XBY Xiangboyi XY2312 - Shield type anti drone device (6 band)

The maximum jamming distance is 2 km

Removable battery

Increase cooling hole, exhaust fan

Single-channel controllable switch

  1. Forced landing capabilities for DJI-type drones on frequencies 1.5G, 2.4G, and 5.8G, as well as the ability to repel DJI-class drones on frequencies 2.4G and 5.8G.
  2. Forced landing functionalities for DOTON drones on frequencies 1.5G, 2.4G, 5.2G, and 5.8G, along with the capability to repel drones on frequencies 2.4G, 5.2G, and 5.8G.
  3. The 433MHz frequency is designated for the remote control of homemade drones, commonly found in household devices such as TV remotes, car keys, and children's toy drones.
  4. The 900MHz frequency serves as the remote control band for industrial-grade drones, commonly utilized by law enforcement, customs, and large-scale drone operations.
  5. China's proprietary BeiDou navigation system, operating at 1.2G, is slated for integration into the drone industry as a secondary positioning system alongside 1.5G (GPS), with current and future applications.
  6. The 1.4G frequency is dedicated to a specialized category of UAVs with limited industrial applications, yet its utilization remains a possibility.



Performance Parameters:

Working Principle: Radio jamming suppression targeting UAV map transmission, flight control links, and navigation signals.

Operating Frequency Bands (Optional):

  • Working frequency 840-930MHz, Average output power 40dBm
  • Working frequency 1160-1280MHz, Average output power 40dBm
  • Working frequency 1550-1630MHz, Average output power 40dBm
  • Working frequency 2380-2500MHz, Average output power 40dBm
  • Working frequency 5150-5300MHz, Average output power 46dBm
  • Working frequency 5720-5880MHz, Average output power 46dBm

Coverage Angle: Horizontal and vertical angles spanning from -45° to 45°.

Maximum Simultaneous Transmission Channels: Up to 6 channels.

Simultaneous Jamming Capacity: Capability to jam ≥10 channels simultaneously.

Coverage Distance: Effective within a radius of ≤1km.

Jamming Success Rate: Achieving over 90% success rate in intercepting signals.

Interception Response Time: Response time of less than 3 seconds.

Operating Temperature: Operating range from -35℃ to 55℃.

Overall Power Consumption: Consumption below 150 units.

Power Supply Voltage: Compatible with 220V AC power supply.

Size and Weight: Dimensions of 32022080±5mm and weight not exceeding 4.5kg.

Power and Working Time: Powered by AC220V-DC24V with a working time of ≥12 minutes.

Material and Antenna Type: Constructed from aluminum and high-performance plastic, featuring directed antenna type.
