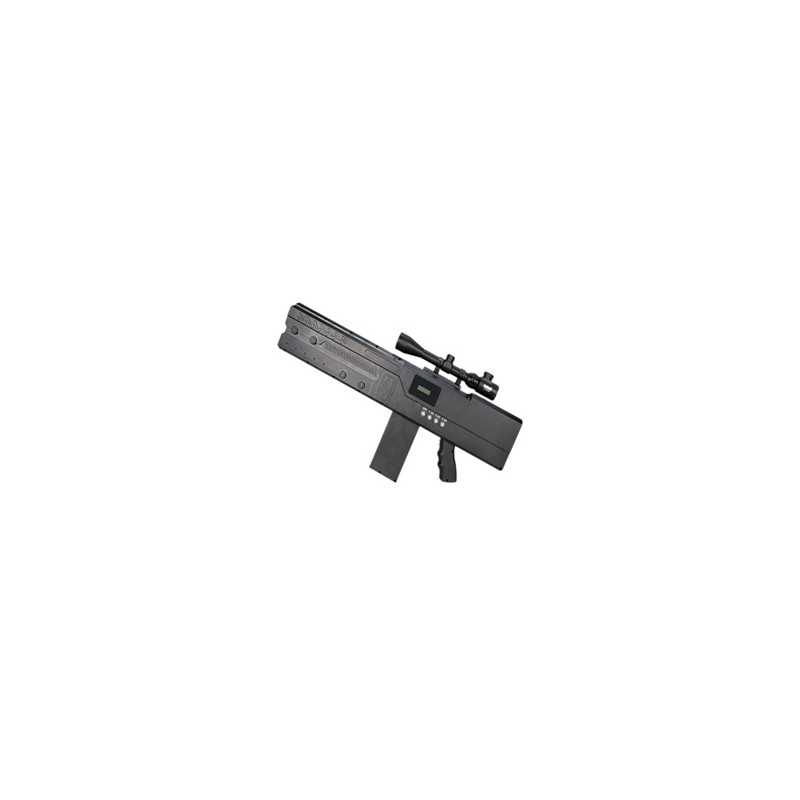

Sinton STN-G3000-4 - 4 frequency channel anti drone gun

Sinton STN-G3000-4 - 4 frequency channel anti drone gun

1. Forced landing of DJI-type drones: 1.5G, 2.4G, 5.8G frequencies targeted. Disruption of DJI-class drones: 2.4G, 5.8G frequencies affected.
2. DOTON drone forced landing: Frequencies impacted include 1.5G, 2.4G, 5.2G, 5.8G. Drive-off capability against drones: Frequencies affected are 2.4G, 5.2G, 5.8G.
3. The 433MHz band commonly used for homemade drones, also found in household devices like TV remotes, car keys, and children's toys.
4. The 900MHz band utilized by industrial-grade drones, often seen in law enforcement, customs, and large-scale drone operations.
5. China's self-developed BeiDou navigation system operating at 1.2GHz, envisioned for future integration into the drone industry as a secondary positioning system alongside 1.5G (GPS).
6. Specialized UAVs operate at 1.4GHz, with limited industry applications but potential future relevance.

Performance Parameters:

Working Principle: Radio jamming suppression

Targeted Actions: Disrupting UAV map transmission, flight control links, and navigation signals

Operating Frequency Bands (optional):

• Output at 433MHz with a working frequency range of 400-450MHz and an average output power of 43dBm
• Output at 900MHz with a working frequency range of 840-930MHz and an average output power of 43dBm
• Output at 1.2GHz with a working frequency range of 1160-1280MHz and an average output power of 43dBm
• Output at 1.4GHz with a working frequency range of 1350-1450MHz and an average output power of 43dBm
• Output at 1.5GHz with a working frequency range of 1550-1630MHz and an average output power of 45dBm
• Output at 2.4GHz with a working frequency range of 2380-2500MHz and an average output power of 46dBm
• Output at 5.2GHz with a working frequency range of 5150-5300MHz and an average output power of 46dBm
• Output at 5.8GHz with a working frequency range of 5720-5880MHz and an average output power of 46dBm

Coverage Angle: Horizontal: -45° to 45°; Vertical: -45° to 45°

Maximum Simultaneous Transmission Channels: 8

Simultaneous Jamming Targets: At least 10

Coverage Distance: Up to 2km

Jamming Success Rate: Over 95%

Interception Response Time: Less than 3s

Operating Temperature: -35℃ to 55℃

Overall Power Consumption: Less than 150

Power Supply Voltage: 220V AC

Size: 71029070±5mm

Weight: Up to 5.5kg

Power: AC220V-DC24V

Working Time: At least 20 minutes

Material: Aluminum + high-performance plastic

Antenna Type: Directed
