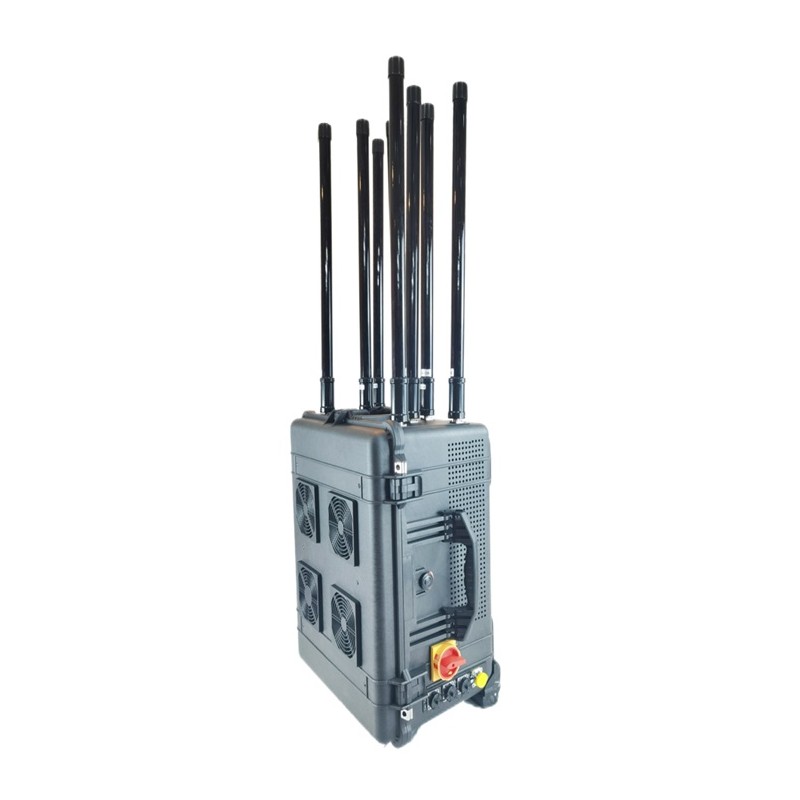

Sinton STN-S9000 - Portable full frequency channel jammer

Sinton STN-S9000 - Portable full frequency channel jammer

Technical Evaluation Criteria for Evaluation Projects (Performance Requirements):

Portability:

The entire device must meet portable usage requirements, with a towing weight not exceeding 60kg.

Coverage Channels:

Full coverage of channels ranging from 20MHz to 6000MHz.

Environmental Adaptability:

Working Temperature:

• Operational: -20℃
• Storage: -30℃
• High Temperature Operation: +45℃
• High Temperature Storage: +55℃

Vibration Resistance:

• Compliant with GJB150A transportation vibration requirements.

Power Supply Method:

Can be powered by built-in battery or external AC220V/50Hz cable.

External cable power can charge the battery while in operation.

Seamless switch between battery and external cable power without disrupting normal operation.

Transmitting Power:

≤450W

Total System Weight:

≤60kg

Continuous Working Time:

≥60 minutes at normal temperature and maximum power consumption state.

Single Class Target Omni-directional Jamming Distance:

• Walkie-talkie: ≥90m (with omni-directional antenna)
• Mobile Communication: ≥50m (with omni-directional antenna)
• Mobile Communication Wall Jamming Capability: ≥10m (with omni-directional antenna)
• Unmanned Aerial Vehicle: ≥1500m (with omni-directional antenna)
• Unmanned Vehicle: ≥55m (with omni-directional antenna)

Simultaneous Omnidirectional Jamming Capability for Multiple Types of Targets:

Ability to jam multiple types of targets simultaneously.

System Response Time:

No more than 5 seconds from power-on to normal system operation.

Usage Requirements:

Key on/off function for the entire machine.

Full-band and split-band mode operation, with separate control for split-band operation.

Working status and power display function.

Alarm functions for under-voltage, over-voltage, overload, abnormal temperature, and abnormal transmitting channel power.

Antenna standing wave protection function.

Package:

Each set includes the main host (with built-in battery and omni-directional antenna), charger (or adapter), cable (minimum 5 meters), carrying case (with drag box set), and other necessary components.

Instructions for use and maintenance should be included with each set of products.
