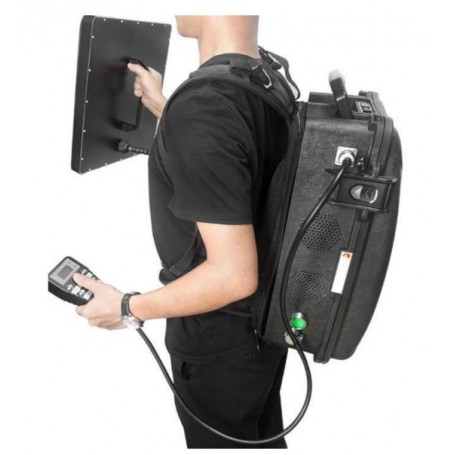

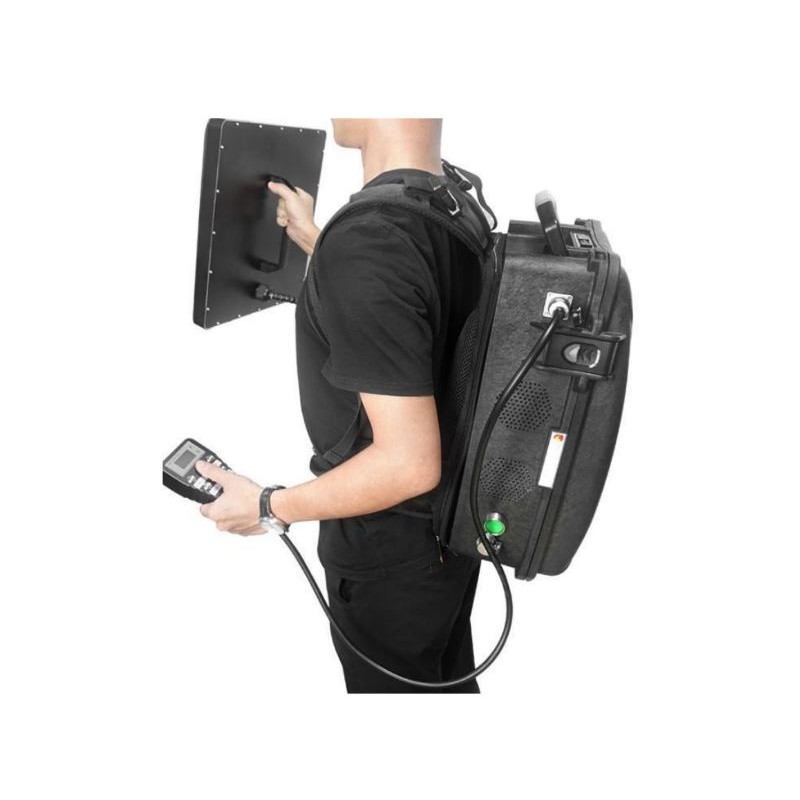

Sinton STN-SF2005 - Manpack/backpack anti drone device

The STN-SF2005 presents a convenient, backpack-style drone signal jammer tailored for personal use, featuring a built-in rechargeable battery.

Key Functions:

• Automatically compels drones to either leave or land within a radius of 1000 to 1500 meters using a high-gain OMNI directional antenna.
• Additionally, with a high-gain directional antenna targeting the drone, it can extend the range to compel drones to leave or land within 1500 to 2000 meters.
• Both ranges are contingent upon real-world environmental factors.

Product Features:

• Compatible with two different types of antennas.
• Equipped with 6-channel jamming frequency capabilities.
• Boasts a high total output power of 320W for effective and stable jamming.
• Features robust and high-gain antennas.
• Encased in a durable military-grade resin outer shell, rendering it waterproof, dustproof, heat-resistant, and corrosion-resistant.
• Incorporates a smart cooling design, integrating an ultra heat sink and large cooling fans to regulate temperature effectively.
• The built-in lithium battery provides a runtime of 1 hour.
• Designed in a backpack style for effortless portability.
• Supports both AC and DC charging methods.

Operating Instructions:

• Connect the antenna to the jammer using the corresponding numbers (or use the provided short wire if the numbers do not align).
• Ensure the built-in battery is fully charged before use, utilizing either the AC or DC wire.
• Monitor the remaining power capacity via the LCD screen.
• Utilize the separate buttons on the remote control to activate the desired jamming function.
• Experience drones being compelled to return home or land gradually within 3-5 seconds within the effective radius of 1000-1500 meters (dependent on real-world conditions).

Typically, pressing the following channels enables the jammer to counter over 95% of jammers in the market:

• Channel: 2.4 GHz
• Channel: 5.8 GHz
• Channel: 1.5 GHz (GPSL1)

Packing List:

• 1 backpack signal jammer
• 6 high-gain OMNI directional antennas
• 1 panel antenna
• 1 AC power charger
• 1 DC power charger

Specifications:

Product Type: Backpack Drone Jammer

Jamming Range:

1000-1500 meter radius (OMNI antenna)

1500-2000 meter range (Panel antenna)

(subject to real-world conditions)

Working Channels:

GPSL1: 1560-1620 MHz, 40W

GPSL2: 1170-1280 GHz, 40W

WiFi 2.4G: 2400-2485 MHz, 100W

WiFi 5.8G: 5725-5850 MHz, 50W

5.2G: 5150-5350 MHz, 50W

900: 920-960 MHz, 40W

Total: 6 channels

Total Output Power: 320W

Body Size: 493519 CM

Body Weight: 16.8 kg

Outer Antenna: High gain 16dBi Panel directional Antenna

Working Temperature: -20°C to 75°C

Working Humidity: 35% to 95%

Power Consumption: < 800W

Power Input:

AC100V~240V

DC24V

Built-in Battery: DC24V 30A

Battery Lasting Time: 1 Hour
