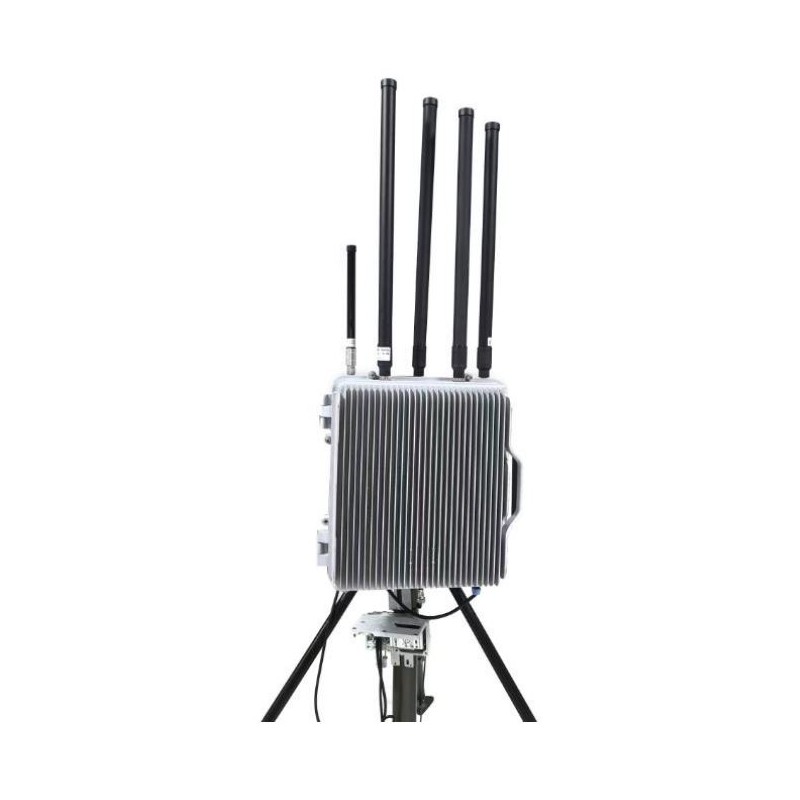

Sinton STN-WR1002 - Detection and jammer integrated device

STN-WR1002 offers an integrated solution for drone detection and jamming, streamlining operations for enhanced security. With its automatic detection and jamming capabilities, simply switch it on for seamless functionality. The detector initiates detection upon activation, followed by automatic jamming upon drone detection, ensuring swift action. Once the drone is no longer detected, the jammer switches off automatically, with the detector returning to standby mode, simplifying operation.

Utilizing spectrum perception and artificial intelligence technology, the STN-WR1002 accurately identifies and classifies drone flight control and image transmission links, boasting precise frequency band targeting and a low false alarm rate. Employing narrow-band interference and radio frequency suppression technologies, it severs the connection between drones and remote controls, preventing data transmission and instruction reception.

Key Features:

Detection Principle:

Spectrum perception and artificial intelligence technology for identifying and classifying drone flight control and image transmission links.

Detection Type:

Detects DJI series drones, Speedy Bee, and DIY image transmission drones, covering over 97% of market models.

Multi-Frequency Band Detection:

Detects conventional frequency bands (1.2GHz, 2.4GHz-2.5GHz, 5.2GHz-5.9GHz) with image transmission, boasting a low false alarm rate.

Multi-Frequency Band Jammer Support (Customizable):

Integrated design capable of attacking drones using remote control image transmission frequency bands like 2.4GHz and 5.8GHz, with optional GPS interference capability.

Enhanced Jammer Effect:

Tailored interference strategy for optimal performance against new drones like Mavic3.

Unattended Integrated System Operation:

Fixed installation for high-altitude placement, featuring automatic detection and strike modes for 24/7 unattended operation.

Pure Strike Mode:

Easily activated pure strike mode with a button press, indicated by a blue light for operation status.

Operation Manual:

Installation:

Attach corresponding antennas (countermeasure/detection) and connect to 220V mains power.

Integrated Detection and Jamming Mode:

Power on and press the "Detection Switch" button to enter detection mode.

Upon drone detection, automatic jamming initiates, with relevant frequency band buttons lighting up.

Jamming ceases automatically after a factory-set time, indicated by the extinguishing of the detection indicator light.

Applications:

Vital installations such as airports, public prosecutor's offices, prisons, detention centers, drug rehabilitation facilities, security agencies, military installations, large events, concerts, government agencies, and anti-terrorism operations requiring drone control and airspace confidentiality.

Technology Standards:

Detector Frequency Bands: 700-1500MHz, 2400-2485MHz, 5725-5850MHz

Detection Range: 1-3km (with 3dBi antenna gain; DJI Mavic 3 detection up to 1km)

Detection Coverage: 360° across all airspace

Maximum Detectable UAVs: Over 100

Detection Refresh Time: Every 3 seconds

Continuous Detection Operation: 24 hours a day

Interference Frequency Bands:

2.4GHz: 2400-2485MHz, 240W

5.8GHz: 5725-5850MHz, 100W (or customizable)

Interference Mode: Drive away

Jamming Distance: Over 1000 meters

Weight: 25kg

Operating Hours: 24 hours a day

Installation Height: To be determined based on location, recommended to be 3m higher than the tallest building

Countermeasure Coverage: 360° across all airspace

Power Source: 220V mains power

Control Method: Automatic strike

Size: 530410230mm (excluding antenna)
