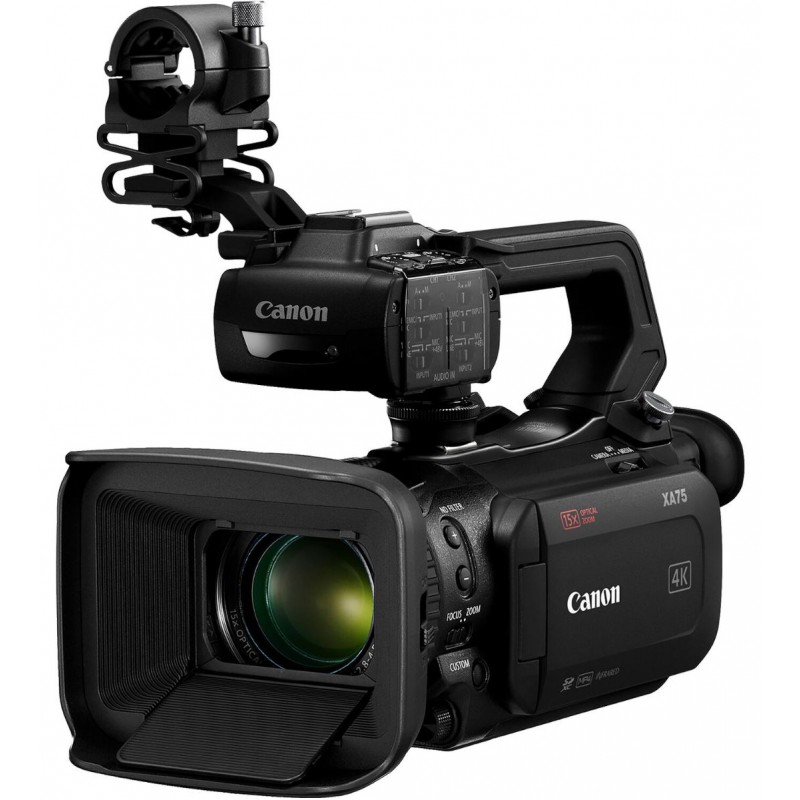

Canon XA75 UHD 4K30 Camcorder with Dual-Pixel Autofocus - HDMI & 3G-SDI

The Canon XA75 Professional UHD 4K Camcorder is a compact, lightweight camera featuring UHD 4K capture, a 1" CMOS sensor, two XLR audio inputs, and one each mini-HDMI and BNC 3G-SDI output, which fits right into the ENG category for documentary or journalism-style productions.

Updated from its XA55 predecessor, this model features a larger 3.5mm LCD capacitive touchscreen display, a higher resolution tiltable 0.36" OLED EVF, OSD metadata recording, and fast USB Type-C video-only output with UVC support for livestreaming to a computer.

The lens optics include an integrated 15x HD optical zoom, a nine-bladed circular iris for more natural highlights, and wide DR gamma support for low-light recording.

The camera's pro-style features include Dual-Pixel and Contrast autofocus, fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3.5" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise.

The XA75 also has display monitoring features such as zebra, color bars, and test tone, plus a built-in neutral density filter mechanism.

The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots in XF-AVC and MP4 formats, and it outputs to mini-HDMI and 3G-SDI ports.

The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both.

The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI and 3G-SDI outputs.

On the audio side, the XA75 features up to four channels of LPCM audio with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input.

It features a built-in stereo microphone as well as a headphone jack.

Compact Professional UHD 4K Camcorder

The XA75 captures sharp UHD images thanks to a 1" CMOS 4K sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.

On-Screen Display (OSD) "Time Stamp" Recording

OSD recording embeds date, time, timecode, and other data into your original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers.

UVC Livestreaming

Stream HD video directly from the camera via UVC1 to a Windows or macOS computer. Audio output through USB is not supported.

4K 15x Optical Zoom Lens

Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the ultrabright 3.5" LCD to set focus by touching the AF point required. Face Detection AF and Face Tracking are available, while Manual Focus is set via the focus/zoom ring.

XF-AVC and MP4 for Flexible Recording

Choose from XF-AVC or MP4 recording formats. Record XF-AVC UHD 4K 160 Mb/s at 30P and Full HD 45 Mb/s at 60p/60i and 30/24p. For smaller files, record MP4 in 4K 150 Mb/s at 30/24p and Full HD 35 Mb/s or 17 Mb/s at 60/30/24p.

Professional Input and Output

Output options include HDMI, 3G-SDI, simultaneous backup and relay recording via dual SD cards, and Infrared mode. Record 5x slow motion in Full HD or fast motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.

Professional Audio Options

Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.

Technical Detail

Imaging

Sensor Resolution

Actual: 13.4 Megapixel (4268 x 3148)

Effective: 8.29 Megapixel (3840 x 2160)

Sensor Type: 1"-Type CMOS Sensor

Image Stabilization:

Optical in Integrated Lens

Digital

Built-In ND Filter:

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Capture Type: Stills & Video

Exposure Control

Shutter Speed: 1/2000 to 1 Second

Minimum Illumination:

° 1.7 Lux at 1/30 Shutter Speed

° 0.1 Lux at 1/2 Shutter Speed

White Balance: 2000 to 15,000K

Lens

Focal Length:

8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)

Optical Zoom Ratio: 15x

Maximum Aperture: f/2.8 to 4.5

Minimum Focus Distance

Wide: 0.4" / 1.0 cm

Entire Zoom Range: 23.6" / 60.0 cm

Filter Size: 58 mm

Focus Control:

Autofocus

Manual Focus

Internal Recording Modes

H.264/MP4 4:2:0 8-Bit

3840 x 2160 at 23.98/24.00/29.97 fps

1920 x 1080p at 23.98/24.00/29.97/59.94 fps [35 to 45 Mb/s]

1280 x 720 at 59.94 fps [8 Mb/s]

XF-AVC 4:2:0 8-Bit

3840 x 2160 at 23.98/24.00/29.97 fps

1920 x 1080p at 23.98/24.00/29.97/59.94 fps

Recording Limit: Up to 2120 Minutes

Broadcast Output: NTSC

Built-In Microphone Type: Stereo

Audio Recording

MP4: 2-Channel 16-Bit AAC Audio

MP4: 4-Channel 16-Bit LPCM Audio

XAVC: 4-Channel 24-Bit LPCM Audio

IP Streaming: None

Interface

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-I)

Video I/O:

1 x Mini-HDMI 2.0 Output

1 x BNC (3G-SDI) Output

Audio I/O:

2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input

1 x 1/8" / 3.5 mm TRS Stereo Headphone Input

1 x 1/8" / 3.5 mm TRS Stereo Microphone Input

Power I/O: 1 x USB-C Input

Other I/O: 1 x USB-C Output

Monitor

Size: 3.5"

Resolution: 2,760,000 Dot

Display Type: Articulating Touchscreen LCD

Viewfinder

Type: Built-In Electronic (LCD)

Size: 0.36"

Resolution: 1,770,000 Dot

Focus

Focus Type: Auto and Manual Focus

Focus Mode: Automatic, Manual Focus

Environmental

Operating Temperature: 32 to 72°F / 0 to 40°C (Recommended)

Storage Temperature: 23 to 113°F / -5 to 45°C

Operating Humidity: 85%

Storage Humidity: 60%

General

Battery Type: Canon BP-8 Series

Power Consumption: 5.3 W

Tripod Mounting Thread: 1/4"-20 Female

Accessory Mount: 1 x Cold Shoe Mount

Dimensions: 8.4 x 4.3 x 3.6" / 21.3 x 10.9 x 9.1 cm

Weight:

2.2 lb / 998 g (Body Only)

3.2 lb / 1451 g (With Battery, Handle, Recording Media)
