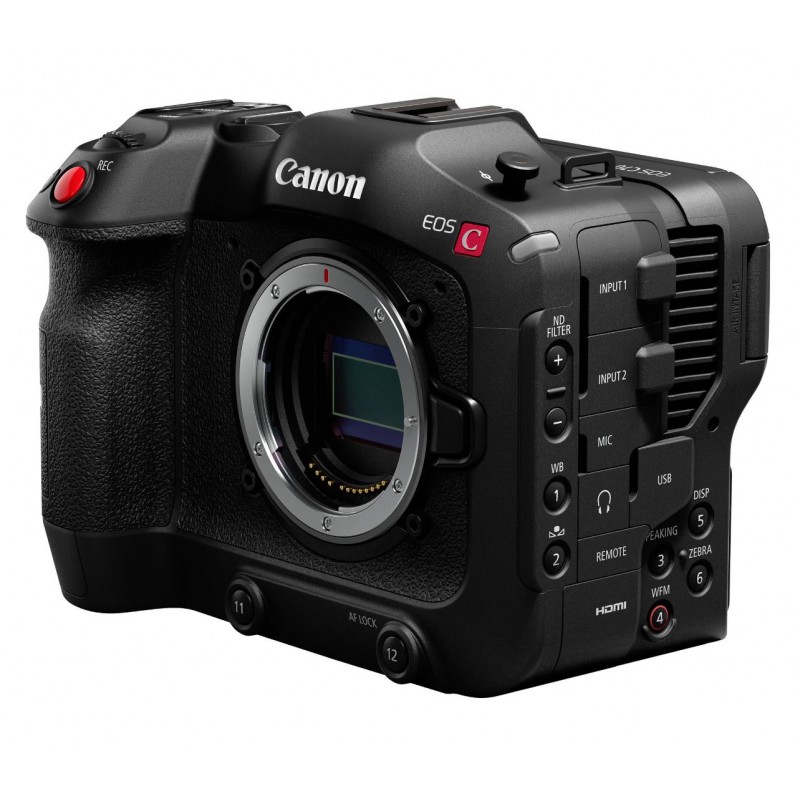

Canon EOS C70 4K- Super35 camera - RF mount

The EOS C70 is a next-generation RF-mount EOS Cinema camera featuring a 4K Super 35mm DGO sensor designed to be the meeting point between cinematic cameras and interchangeable lens cameras.

• The first cinema EOS camera with RF mount
• DGO 4K Super 35mm sensor
• High Dynamic Range with over 16 stops
• High frame rate recording in 4K at 120 fps
• Two SD memory card slots that support simultaneous recording in multiple formats
• Enhanced Dual Pixel CMOS AF with iTR AF X (Intelligent Tracking and Recognition)
• Professional I / O terminals
• Compatible with EF-EOS R 0.71x adapter to use lenses

Accessories supplied

Microphone holder unit Grip Compact adapter CA-CP200L Battery charger CG-A20 OTH AC cable Rechargeable battery (BP-A30) Other accessories: includes camera cap, shoe adapter knob and screws for microphone holder

Incorporating key Cinema EOS video tools in a mirrorless- style body, the Canon EOS C70 Cinema Camera features a Super35 DGO (Dual Gain Output) sensor for capturing nuanced images with up to 16+ stops of high dynamic range. The innovative DGO system combines two separate gain readings for each photodiode on the sensor, emphasizing saturation in bright areas of your image and lowering noise in darker areas. Video resolutions include DCI 4K capture at rates ranging from 23.98 to 60 fps, plus high-speed options up to 120 fps in UHD 4K and 180 fps in cropped 2K.

Pro video functions include unlimited video recording, Dual Pixel CMOS AF autofocus control, a motorized ND filter wheel tucked into the shallower RF-mount flange depth, a BNC timecode input/output connector, and built-in dual mini-XLR audio inputs. The EOS C70 is also the first Cinema EOS camera with an RF mount that enables you to use Canon's line of fast, reliable RF lenses with advanced coatings and image stabilization.

This lightweight cine camera also incorporates a 3.5" Direct Touch Control LCD panel for quick, easy setting changes, and both auto-ISO and auto-gain functions for on-the-go adjustments to changing light levels.

The EOS C70 Cinema Camera fits into your C300 Mk III workflow as a B camera, as an upgrade for C200 or C100 users, or as an alternative for EOS R owners who are shooting an increasing amount of video. Its touchscreen LCD panel speeds your workflow by enabling you to turn functions on and off directly from the touchscreen; no need to spend time going into multiple menus via a combination of control buttons and jog wheels. Power the EOS C70 using a BPA-60 or BPA-30 battery or the included AC power adapter.

To provide greater flexibility in lens choices, the EOS C70 camera is also compatible with the separately available EF-EOS R 0.71X EF to RF lens mount adapter. This adapter converts your full-frame lenses to Super35 format while also providing a handy aperture speed boost of around one stop. The EF adapter passes all the EF lens data through the RF mount, providing full Dual-Pixel Auto Focus and metadata information for select lenses. The EOS C70 is also the first Canon EOS cinema camera to feature the EOS iTR AF X autofocus function, which uses a head-tracking algorithm developed with deep-learning technology for improved distance measuring and tracking reliability.

This digital cine camera records up to DCI 4K resolution video to dual slots using widely available and more affordable SD cards. High frame rates can be recorded in 4K up to 120 fps and up to 180 fps in a 2K cropped Super16 mode. Codec options include Canon's XF-AVC, XF-AVC Intra, and XF-AVC Long GOP, providing up to 10-bit, 4:2:2 DCI 4K images with reduced storage requirements. To boost your post-production workflow, the flexible EOS C70 supports both proxy recording rates and simultaneous recording in different formats, including 4K/HD and XF-AVC/MP4 options. The EOS C70 can also capture still images to SD cart slot B when on standby in select video modes.

For greater flexibility during post-production, this camera also offers Canon's Log 2 and Log 3 gamma modes, both of which provide an expanded dynamic range with excellent tonal reproduction for highlights and in low-light areas of your images. The EOS C70 also supports .cube 3D LUTs so you can get the most accurate color reproduction on both the LCD and your external viewing monitors.

This cinema camera features one HDMI Type-A output, a BNC timecode input/output, and a USB Type-C port for control or linking to an external Wi-Fi adapter for streaming. It supports up to 4-channel audio using dual mini-XLR ports, an internal stereo mic, and a 3.5mm mic input. The EOS C70 body comes with a detachable handle unit, a mic holder, a shoulder strap, one BPA-30 battery, a battery charger, an AC adapter with a power cord, and a port cap.

Technical Detail

Image sensor

Sensor

Super 35mm Dual Gain Output (DGO) sensor

System

RGB primary color filter (Bayer matrix)

Sensor mode

Super 35mm / Super 16mm (crop)

Total pixels

Approx.9.6 megapixels (4206 x 2280)

Effective pixels

Approx.8.85 megapixels (4096 x 2160): when a resolution of 4096 x 2160 or 2048 x 1080 is selected Approx.8.29 megapixels (3840 x 2160): when a resolution of 3840 x 2160 or 1920 x 1080 is selected

Actual sensor screen size

Super 35 mm; 26.2 x 13.8 mm (29.6 mm diagonal): when 4096 x 2160 or 2048 x 1080 resolution is selected 24.6 x 13.8 mm (28.2 mm diagonal): when selected a resolution of 3840 x 2160 or 1920 x 1080

Dynamic range

Canon Log 2: 1600% / over 16 stops ** Canon Log 3: 1600% / 14 stops ** Wide DR: 800% (at ISO 400 value)

** At ISO800 or with Dual Gain Output active

Objective engagement

Canon RF mount Compatible lenses: all RF and EF lenses (including EF-S / EF cinema lenses) (* EF lenses are compatible with EF - EOS R adapters)

Lens magnification factor (for EF mount lenses, including those with a Cinema prime)

Super 35mm; Resolution 4096 x 2160 or 2048 x 1080: effective focal length approx.1.460 Resolution 3840 x 2160 or 1920 x 1080: effective focal length approx.1.534 Super 16mm (crop); Resolution 2048 x 1080: Effective Focal Length Approx. 2,920 Resolution 1920 x 1080: Effective Focal Length Approx. 3,069 Effective Focal Length will not be changed using Canon EF-EOS R 0.71X

REGISTRATION

Internal recording media:

SD card for XF-AVC or MP4 recording. Recording on two cards. The SD card is also used for photo storage (1920 x 1080), CP settings transfer and firmware upgrade. We recommend using high speed UHS-II type SD cards.

V90 standard recommended for all recording functions

Recording time SD card, 512 GB approx.

XF-AVC / MXF: 4096 x 2160: 410 Mbps 156 min. MP4 (HEVC): 4096 x 2160: 225 Mbps 285 min. MP4: 4096 x 2160: 150 Mbps 428 min.

Recording formats

XF-AVC (MXF) ALL-I or Long GOP: 4: 2: 2 10-bit MP4 H.265 / HEVC: 4: 2: 2 10-bit MP4 H.264: 4: 2: 0 8-bit

Inputs / outputs

Audio input

3-pin XLR mini-connector x2, 3.5mm stereo mini-jack (input only) Stereo microphones built into the camera body

Headphone output

3.5mm stereo mini-jack (output only, camera body)

HDMI

HDMI connector (type A) (output only)

USB

Yes, Type C (USB 3.2 Gen1) Connection for optional GPS unit or Wi-Fi and Ethernet adapters
