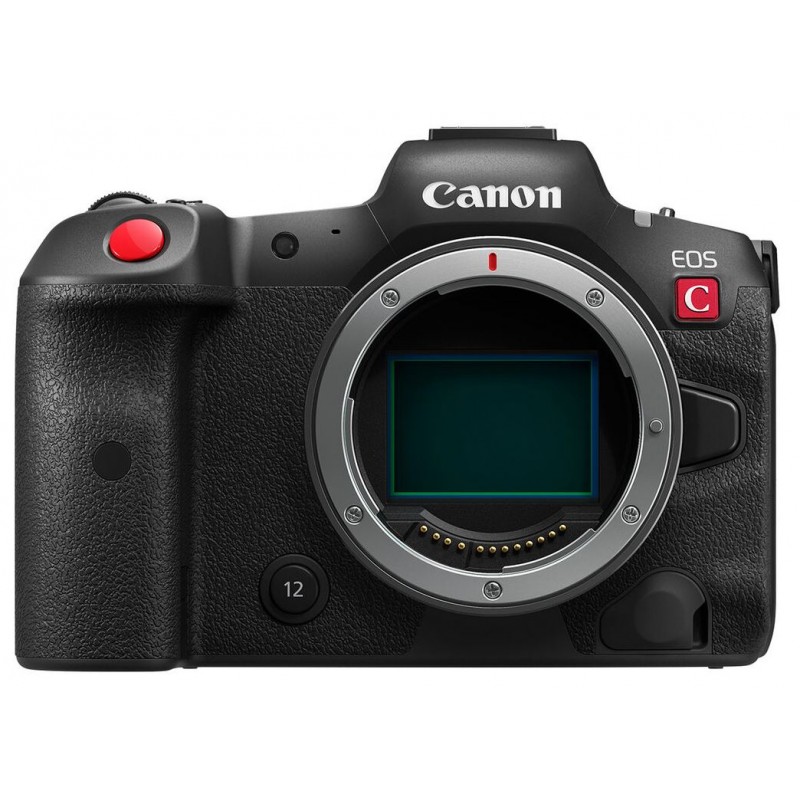

Canon EOS R5C Mirrorless Cinema Camera

For all the wedding videographers, drone camera operators, and multimedia journalists who have professional photo still and cinema video production needs, get ready for a new type of shooting experience with the EOS R5 C Mirrorless Cinema Camera from Canon. With a simple switch, the R5 C is a full featured still photo camera with all the settings of the R5 EOS mirrorless camera. When switched in the other direction, it becomes a full-frame 8K60 Cinema EOS camera that internally records 12-bit Cinema RAW Light footage. There's no more need to carry a second camera with you to your production when stills and video are available within a single compact design.

The R5 C enhances a number of features in comparison to its siblings the R5 and C70, including 4K120 recording, HDMI RAW output, Canon Log 3 HLG/PQ support, unlimited recording time, a timecode port, Dual Pixel CMOS AF with eye detection, an active cooling system, a high-power LP-E6NH battery, 13 reassignable buttons, and a multi-function shoe for XLR adapters. The camera also retains the reliable features of those cameras such as Wi-Fi/Bluetooth, footage compatibility with DaVinci Resolve and Canon apps, an electronic RF mount, CFexpress/SD card slots, a similar button layout, and more. And all this is packed into a tiny 1.7 lb body that is just asking to become your go-to drone camera.

• Two Cameras in One Body: Photo + Cinema
• 45MP Stills, Full-Frame 8K CMOS Sensor
• Photo/Video Switch Changes Settings Menu
• JPEG/C-RAW, 12-Bit Cinema RAW Light
• Dual Pixel CMOS AF with Eye Detection
• Cfexpress Type-B and SD UHS-II Slots
• Dual-Slot Record, Unlimited Record Time
• Timecode DIN Port, Multi-Function Shoe
• 4-Channel Audio Record with XLR Adapter
• 13 Reassignable Buttons

Common Features & Technology as the EOS R5

Canon's 45MP full-frame CMOS imaging sensor is at the heart of the EOS R5 C camera's superb image quality, which also leads the way for impressive 8K60 RAW cinematic video shooting.

Focus and speed are paramount in the EOS R5 C camera, providing impressive still-image continuous capture at speeds of up to 20 fps

Dual Pixel CMOS AF II capability, to track split second movements of even the most elusive subjects

With 1053 Automatic AF zones, it is easy to photograph people with the use of Eye, Face, and Head Detection AF, or intuitively track the whole body, face, or eyes of cats, dogs, or birds with Animal Detection AF

For those with the need for speed, Canon has also included still-image vehicle subject detection to assist with accurate tracking of cars and motorcycles

Connectivity like 5 and 2.4GHz Wi-Fi and Bluetooth is also included for the transfer of still images

In the Box

• Canon EOS R5 C Mirrorless Cinema Camera
• LP-E6NH Battery Pack
• LC-E6 Battery Charger
• SS-1200 Shoulder Strap
• IFC-100U Interface Cable
• Cable Protector
• R-F-5 Camera Cover

Technical Detail

Lens Mount Canon RF

Lens Communication Yes, with Autofocus Support

Sensor Resolution Actual: 47.1 Megapixel

Effective: 45 Megapixel (8192 x 5464)

Sensor Type 36 x 24 mm (Full-Frame) CMOS

Crop Factor 1.6x

Image Stabilization Sensor-Shift (Video Only)

Built-In ND Filter None

Internal Filter Holder No

Capture Type Stills & Video

Exposure Control

Shutter Type Electronic Shutter, Focal Plane Shutter

Shutter Speed Mechanical Shutter

1/8000 to 30 Seconds

Electronic Front Curtain Shutter

1/8000 to 30 Seconds

Electronic Shutter

1/8000 to 0.5 Seconds

Bulb/Time Mode Bulb Mode

ISO Sensitivity Photo: 100 to 51,200 in Manual Mode (Extended: 50 to 102,400)

Photo: 100 to 25,600 in Auto Mode (Extended: 200 to 51,200)

Metering Method Center-Weighted Average, Evaluative, Partial, Spot

Exposure Modes Aperture Priority, Manual, Program, Shutter Priority

Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)

Metering Range -3 to 20 EV

Continuous Shooting Mechanical Shutter

Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)

Electronic Shutter

Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)

Interval Recording Yes

Self-Timer 2/10-Second Delay

Internal Video Capture

Raw Recording Cinema RAW Light

8192 x 5464 at 23.976/24.00/25/29.97/50/59.94 fps [1030 to 2570 Mb/s]

5952 x 3140 at 23.976/24.00/29.97/30/50/59.94 fps [544 to 1360 Mb/s]

2976 x 1570 at 23.976/24.00/25/29.97/30/50/59.94 fps [138 to 344 Mb/s]

Recording Modes Raw 12-Bit

DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [2600 Mb/s]

AVC-Intra/AVC-LongG/XF-AVC 4:2:2 10-Bit

DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/59.94p/100p/119.88p [160 to 810 Mb/s]

UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p [160 to 810 Mb/s]

Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [50 to 310 Mb/s]

HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]

AVC-LongG/MP4 4:2:2 10-Bit

DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [400 to 540 Mb/s]

UHD 8K (7680 x 4320) at 23.98p/25p/29.97p [400 to 540 Mb/s]

DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [100 to 225 Mb/s]

UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/119.88p [100 to 225 Mb/s]

DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]

Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]

HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]

AVC-LongG/MP4 4:2:0 8-Bit

DCI 4K (4096 x 2160) at 23.98PsF/24.00p/25p/29.97p/50p/59.94p/119.88p [100 to 225 Mb/s]

UHD 4K (3840 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [100 to 225 Mb/s]

DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]

Full HD (1920 x 1080) at 23.98p/24.00p/29.97p/50p/59.94p [35 to 50 Mb/s]

HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]

Sensor Crop Modes Super35 / APS-C

5952 x 3184

4096 x 2160

3840 x 2160

Super16

2976 x 1570

Gamma Curve Canon Log 3, HDR-HLG, HDR-PQ, Rec2020, Rec709

Recording Limit Unlimited

Video System NTSC/PAL

External Video Capture

External Recording Modes 4:2:2 10-Bit via HDMI

DCI 4K (4096 x 2160) up to 59.94p

UHD 4K (3840 x 2160) up to 59.94p

IP Streaming None

Still Image Capture

Image Sizes 3:2 Raw

8192 x 5464

5088 x 3392

3:2

8192 x 5464

5808 x 3872

4176 x 2784

2400 x 1600

4:3

7280 x 5464

5152 x 3872

3715 x 2784

2112 x 1600

16:9

8192 x 4608

5808 x 3264

4176 x 2344

2400 x 1344

1:1

5456 x 5456

3872 x 3872

2784 x 2784

1600 x 1600

Aspect Ratio 1:1, 3:2, 4:3, 16:9

Image File Format JPEG, Raw, HEIF

Bit Depth 10-Bit

Interface

Media/Memory Card Slot Slot 1: CFexpress Type B

Slot 2: SD/SDHC/SDXC (UHS-II)

Video I/O 1 x Micro-HDMI Output

Audio I/O 1 x 3.5 mm TRS Stereo Mic/Line Input

1 x 3.5 mm TRS Stereo Headphone Output

Power I/O 1 x USB Type-C (9 VDC at3 A) Input

Other I/O 1 x USB Type-C USB 3.2 / 3.1 Gen 2 (Shared with Power Adapter)

Wireless Bluetooth Control

2.4 / 5 GHz Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Wi-Fi Video Output, Control

Global Positioning (GPS, GLONASS, etc.) None

Monitor

Size 3.2"

Resolution 2,100,000 Dot

Display Type Free-Angle Tilting Touchscreen LCD

Viewfinder

Type Built-In Electronic (OLED)

Size 0.5"

Resolution 5,790,000 Dot

Eye Point 23 mm

Coverage 100%

Magnification Approx. 0.76x

Diopter Adjustment -4 to +2

Focus

Focus Type Auto and Manual Focus

Focus Mode Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)

Autofocus Points Phase Detection: 1053

Autofocus Sensitivity -6 to +20 EV

Built-In Flash No

Maximum Sync Speed 1/250 Second

Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)

Dedicated Flash System eTTL

External Flash Connection Hot Shoe
