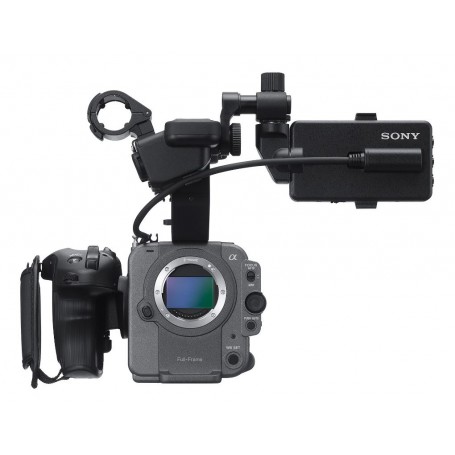

Sony ILME-FX6 Alpha FX6 Full-frame 4K Cinema Line Camera 10,2MP - E-Mount

ILME-FX6 Sony Alpha Full-frame 4K Cinema Line Camera 10,2MP - E-Mount.

• 4K Full-Frame 10.2MP CMOS Exmor R Sensor
• DCI 4K60p | UHD 4K120 | 1080p240
• 15+ Stops of Dynamic Range in S-Log 3 EI
• Compact Form Weighs Just <2 lb

The FX6 is the baby in the new Cinema Line family of cameras that Sony announced today - which will include the Sony Venice which is used on some of the biggest TV dramas and movies in production today. Also in the new range will be the existing 6K Sony FX9 camera which was launched last year, which is primarily used by documentary filmmakers.

4K Full-Frame CMOS Exmor R Sensor

The FX6's 10.2 MP image sensor features back-side illumination for excellent low-light performance, 627 focal plane points for speedy phase-detection autofocus, and full-frame lens compatibility that produces a rich, immersive look. The sensor's fast scan speed minimizes rolling shutter artifacts and supports high frame rates and quick autofocus responses.

15+ Stops of Dynamic Range

The Exmor R sensor also enables the FX6 to capture a whopping 15+ stops of dynamic range in Cine EI mode with S-Log3, creating nuanced, high-resolution images.

Wide ISO Range

Choose from a base ISO of 800, a high-sensitivity 12,800 ISO for lower-light capture, and a 409,600 maximum ISO for true low-light settings.

Electronically Variable ND Filters

Set the FX6's integrated neutral density (ND) filter system to auto for correctly exposed shots even in changing light conditions, or smoothly adjust the ND filter density manually in increments from 1/4 to 1/128 as you shoot; both options will produce properly exposed images without affecting your chosen depth of field.

Advanced XAVC Codec Options

The FX6 is the first compact, full-frame camera to offer UHD 4K 4:2:2 capture in the high-quality yet efficient XAVC-I codec. It also enables you to choose from a range of professional XAVC Intra and XAVC Long codecs at bit rates ranging from 35 to 600 Mb/s.

High Frame Rate Selections

For slow-motion and fast action looks, choose from full-frame rates ranging from:

• 1-60 fps in HD to DCI 4K resolutions
• 100 or 120 fps in HD through UHD 4K
• 150, 180, 200, or 240 fps in Full HD

Super35 choices include:

• 1-60, 100, and 120 fps in Full HD

Expressive Cinematic Look

Sony's S-Cinetone gamma curve offers a cinematic look with filmlike color, softer tones, and pleasing skin tone reproduction. Not only is this cinematic look available for in-camera viewing, but it can also be captured and output with minimal or no grading at all for a time-saving post process. The S-Cinetone, S-Log3, S-Gamut3, and S-Gamut3.Cine choices also streamline the process of matching FX6 footage with your VENICE or FX9 video and offer broad color-grading options.

Cfexpress Media Slots and Multiple Recording Modes

The FX6's dual media slots accept both rugged, high-performance, high-capacity Cfexpress Type A cards and widely available UHS-II/UHS-1 SDXC cards. Note that the Cfexpress Type A cards are required for 100/120 fps UHD 4K capture and 150/180/200/240 fps HD high-speed capture.

Key Features:

- 4K 10.2 megapixel full-frame back-illuminated CMOS Exmor R? sensor , 15+ stop dynamic range, ISO expandable to 409,600 for low light conditions.

- S-Cinetone highly regarded look profile also used in FX9 and inspired by VENICE colorimetry.

- Compact and approx. 0.89kg (body only) lightweight body suitable for grab-and-shoot styling.

- 627 points phase-detection AF, Real-time Eye AF

- 4K (QFHD) high-frame-rate 120fps recording

- XAVC-I 4:2:2 10-bit class 300 internal recording, DCI 4K/QFHD 16bit RAW output with 12G-SDI

- BIONZ XR image processing engine optimized for mobile movie shooting style

- S-Log3/S-Gamut3, S-Gamut3.Cine for post production flexibility.

- Built-in electronic Variable ND Filter controlled from 1/4ND to 1/128ND linearly, or set to auto

- Magnesium body and frame for high durability with light weight

Supplied Accessories:

BP-U35 Lithium-Ion Battery Pack(1)

Handle(1)

LCD monitor(1)

Grip remote control(1)

BC-U1A Battery Charger / AC Adapter for BP-U90, U60, U60T, U30

Power cord(1)

USB-C cable(1)

LCD hood(1)

Cold shoe kit(1)

Lens mount cap(1)

Handle connector cap(1)

Warranty booklet(1)

Technical Detail

Product in Kit

Mass:

Approx 890g (1lb15oz)(body only)

Approx. 2.59kg(5lb11oz) (with Viewfinder, Grip Remote Control, BP-U35 battery, SEL24105G LENS, Lens Hood, Handle, MIC holder)

Dimensions (W x H x D): 114 x 116 x 153 mm(4 1/2 x 4 5/8 x 6 1/8 inch) (body without protrusions)

Power Requirements: DC 19.5V

Power Consumption: Approx. 18.0 W (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)

Operating Temperature: 0°C to 40°C

Storage Temperature: -20°C to +60°C

Battery Operating Time:

Approx. 105min. with BP-U35 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)

Approx. 215min. with BP-U70 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)

Recording Format (Video):

XAVC Intra

XAVC-I DCI4K 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264

XAVC-I DCI4K 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264

XAVC-I DCI4K 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264

XAVC-I DCI4K 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264

XAVC-I DCI4K 24p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264

XAVC-I DCI4K 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264

XAVC-I QFHD 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264

XAVC-I QFHD 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264

XAVC-I QFHD 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264

XAVC-I QFHD 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264

XAVC-I QFHD 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264

XAVC-I HD 59.94p mode:CBG, MAX bit rate 222 Mbps, MPEG-4 AVC/H.264

XAVC-I HD 50p mode:CBG, MAX bit rate 223 Mbps, MPEG-4 AVC/H.264

XAVC-I HD 29.97p mode:CBG, MAX bit rate 111 Mbps, MPEG-4 AVC/H.264

XAVC-I HD 25p mode:CBG, MAX bit rate 112Mbps, MPEG-4 AVC/H.264

XAVC-I HD 23.98p mode:CBG, MAX bit rate 89Mbps, MPEG-4 AVC/H.264

XAVC Long

XAVC-L QFHD 29.97p/25p/23.98p mode:VBR, MAX bit rate 100 Mbps, MPEG-4 H.264/AVC

XAVC-L QFHD 59.94p/50p mode:VBR, MAX bit rate 150 Mbps, MPEG-4 H.264/AVC

XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 50 Mbps, MPEG-4 H.264/AVC

XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 35 Mbps, MPEG-4 H.264/AVC

Recording Format (Audio): LPCM 24 bits, 48 kHz, 4 channels

Lens Mount: E-Mount

Camera Section

Imaging Device (Type): 35 mm full-frame, single-chip CMOS image sensor

Number of pixels (total): Approx. 12.9 megapixels

Number of pixels (effective): Approx. 10.2 megapixels

Built-in Optical Filters: Clear, linear variable ND(1/4ND to 1/128ND)

ISO Sensitivity: ISO 800/12800 (Cine EI mode, D55 Light source)

Shutter Speed: 64F to 1/8000 sec

Slow and Quick Motion Function:

XAVC-I, 4096x2160, 1 to 60 frames (59.94/50/29.97/25/24/23.98)

XAVC-I/L: 3840 x 2160, 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98), 1920 x 1080 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98)

White Balance: Preset, Memory A, Memory B (2000K-15000K)/ATW

Gain: -3 to 30dB (every 1dB), AGC

Gamma Curve: SDR Mode :S-Cinetone, Standard, Still, ITU709, HDR mode : HLG Live, HLG Natural

Latitude: 15+ stop

Input/Output

Audio Input: XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable, Mic Reference: -30 to -80 dBu

SDI Output: BNC, 12G-SDI, 6G-SDI, 3G-SDI(Level A/B)

USB: USB Type-C(x1), Multi/Micro-B (x1)

Headphone Output: Stereo mini jack (x1), -16 dBu 16 OHM

Speaker Output: Monaural

DC Input: DC jack

Remote: Stereo mini-minijack (2.5 mm)

HDMI Output: Type A (x1)

TC Input/TC Output: BNC, TC IN/OUT Switchable

Grip: Mini jack (3.5 mm/4pin)

LCD: 8.8 cm (3.5 type) Approx. 2.76M dots

Built-in Microphone: Omni-directional monoral electret condenser microphone (body) (x1) Stereo electret condenser microphone (handle) (x1)

Media Type: CFexpress Type A / SD card (x2) - Slot B can be used for saving configuration data.

Wi-Fi/NFC

Supported Format: IEEE 802.11 a/b/g/n/ac

Frequency Band: 2.4 GHz bandwidth 5.2/5.3/5.6/5.8 GHz bandwidth

Security: WEP/WPA-PSK/WPA2-PSK

NFC: NFC Forum Type 3 Tag compliant
