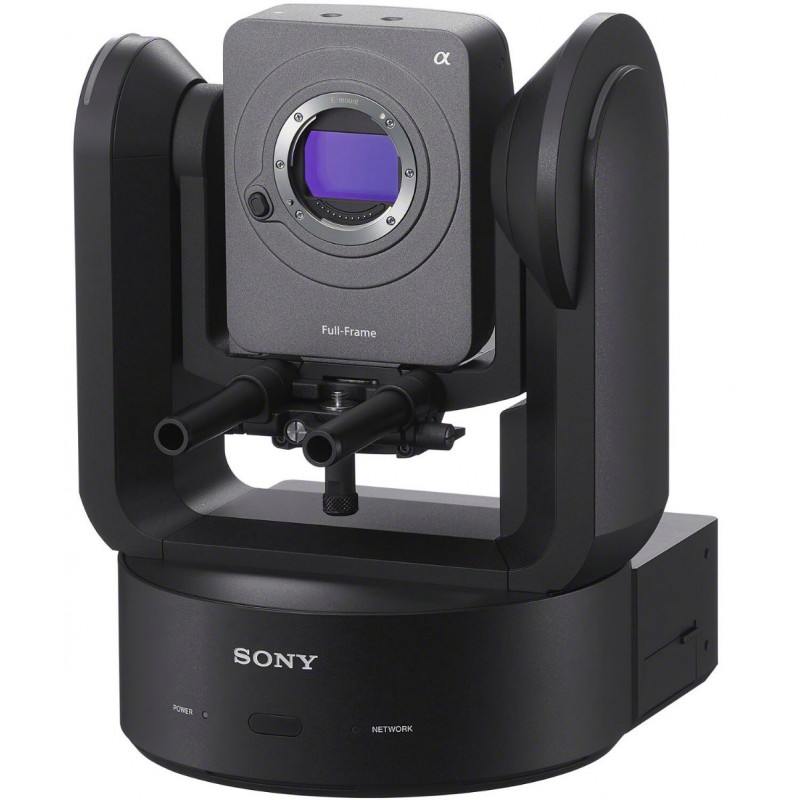

Sony ILME-FR7 Cinema Line PTZ Camera

Sony FR7 Cinema Line PTZ Camera

° Supports up to UHD 4K120 Video

° Sony E-Mount Lens Interchangeability

° 4K Full-Frame Sensor

° 12G-SDI, HDMI & Streaming Output

° Variable Electronic ND Filter

° Smooth, Slow Pan & Tilt Movement

° IR, IP & Web App Remote Control

° Flexible PoE+ Installation

° Genlock, Timecode & Tally Lamps

Capture cinematic, full-frame footage in PTZ form for broadcast use, reality shows, houses of worship, and live events and sports with the black FR7 Cinema Line PTZ Camera from Sony. This versatile camera features the unique ability to use interchangeable Sony E-mount lenses and is currently compatible with up to 70 E-mount lenses ranging from 12 to 1200mm. The large image sensor provides 15+ stops of dynamic range, captures up to UHD 4K120 video, offers live streaming, supports S-Cinetone, Cine EI, and MLUT looks for matching select Sony cameras, and enables you to create shallow depth-of-field bokeh effects.

The FR7 PTZ camera features flexible PoE++ (Power-over-Ethernet) installation, up to 100 preset positions, tally lamps, a built-in electronic ND filter, 5-pin XLR audio input, and multicamera functions like timecode and Genlock. Versatile control options include an IR remote, compatibility with controllers like the Sony RP-IP500, and a remote web app for tablets and computers.

Expressive 4K Imaging

Full-Frame Sensor

The FR7 combines a 4K full-frame sensor and compatibility with Sony E-mount lenses to produce outstandingly expressive, cinematic imagery

15+ stops of dynamic range and a base ISO of 800 that is expandable from 12,800 to 409,600 for capturing optimal video in an array of lighting conditions

Sony E-Mount

Compatibility with up to 70 Sony E-mount lenses covers a range of 12 to 1200mm, enabling you to capture the widest vistas and the closest details

Use with G Master (GM) lenses to obtain impressive resolution and pleasing bokeh

Imaging Functions

Capture rich detail and wide color using Sony S-Log3 and create nuanced contrast with Hybrid Log Gamma (HLG)

Built-In ND Filters

An integrated, electronic ND filter offers variable ND filtration ranging from 1/4 (2 stops) to 1/128 (7 stops)

Use the ND filter to compensate for changes in exposure without affecting your depth of field

Create shallow depth-of-field effects by adding the ND and opening the iris

SDI Raw Output

The FR7 can output raw video via the SDI (BNC) output to an external recording for color grading and other post-production tweaking

UHD 4K 120p Recording

Record UHD 4K video at rates up to 120 fps for slow-motion effects

Remote & Robotics Functions

IP Control

Use the IP remote function to control your camera from a distance like a broadcast truck and/or to control multiple cameras

Smooth Movement

Slow, smooth pan and tilt movements enable you to unobtrusively zoom in on the action and reframe accordingly

Video Output & Streaming

Output video using the HDMI and up to 12G-SDI video outputs

Stream RTSP, SRT, or NDI|HX (requires NewTek license) using the LAN port

Control Options

The included IR remote can be used for pan, tilt, zoom (PTZ), focus, recording, playback, and other camera settings

Use with the separately available RM-IP500 control panel with joystick zoom rocker, and buttons

Web app remote control can be accessed from a tablet or PC browser

Mounting

Mount on a tripod or riser using the two 1/4"-20 threads

Use the optional mount to attach the FR7 camera to a ceiling

Attach camera accessories using the 15mm rod mounts

Cinematic Multicamera Use

Cine-Style Capture

Bring a cinematic look to your PTZ capture and match footage from other Sony cameras with the S-Cinetone picture profile

The Cine EI mode with MLUT management can be used with S-Log3 or raw recording

XAVC recording with metadata capture supports up to 10-bit, 4:2:2 color and HDR recording

Hybrid Autofocus

Fast hybrid autofocus with face detection and touch tracking enable you to keep even dynamic action in focus

Up to 100 Presets

Quick control with up to 100 preset positions

Interfaces

A robust interface includes a LAN port for network and PoE++ use, timecode input, a genlock connector, and red/green tally indicators

Dual media slots are compatible with both Cfexpress Type A and SDXC memory cards

Technical Detail

Camera

Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128) ND Filters

Flip / Mirror Support Image Flip

Lens

Focus Control Autofocus

Manual Focus

Video Output

Output Formats HDMI, Optical Fiber, SDI: 3840 x 2160p at 60 fps

Control

Presets 100

Move Speed Pan: 0.02 to 60°/sec

Tilt: 0.02 to 60°/sec

Movement Range Pan: 340°

Tilt: 225° (-30 to 195°)

Tilt: 225° (-210 to 15°)

Tally Light Yes

Interfaces

Video Output Connectors 1 x BNC (12G-SDI / 3G-SDI)

1 x HDMI Type A

Audio I/O 1 x XLR 5-Pin Input

Other I/O 1 x RJ45 (LAN) Input/Output

Power

PoE Support PoE++ 802.3bt

Power Connectors 1 x Barrel / Coaxial

General

Tripod Mounting Thread 2 x 1/4"-20 Female
