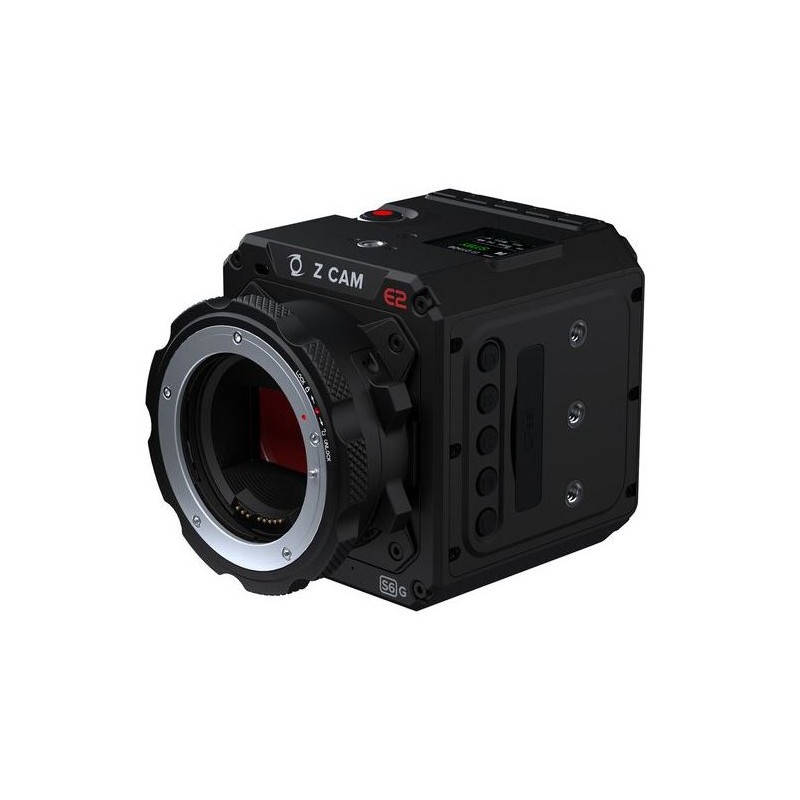

Z-CAM E2-S6G (EF) Super 35mm 6K 60fps Cinema Camera 10-bit color with global shutter

Z-CAM E2-S6G Super 35mm 6K 60fps Cinema Camera 10-bit color with global shutter.

If you're a Z CAM 6K fan and shoot a lot of fast-paced action, the Canon EF mount E2-S6G S35 6K Cinema Camera with Global Shutter is designed for you. This member of the Z CAM 6K camera lineup features a global shutter that captures all the image sensor information in one fell swoop, eliminating the wobbly, Jello-like effects and skewed motion artifacts that rolling shutters can produce in some quick-moving shots. Attributes shared with the E2-6S include 10-bit 4:2:2 color support, ProRes and ZRAW capture, a nominal 14-stop dynamic range, timecode support, and data capture rates up to 300 Mb/s using CFast 2.0 media. The E2-S6G's internal capture rates differ somewhat with top ranges of 30 fps in 6K Open Gate, 48 fps in DCI 6K, 76 fps in DCI 6K 2.4:1, 56 fps in DCI 4K, 70 fps in DCI 2.4:1, 56 fps in UHD 4K, and 70 fps in 1080p.

The E2-S6G supports up to 4K60, 10-bit 4:2:0 video output via its HDMI 2.0 port, and it records audio in 24-bit 48 kHz using AAC or PCM (PCM for MOV only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port. Versatile camera control options are offered via two serial ports, a 2.5mm LANC connector, a USB Type-C port, and an Ethernet port. The Z Camera iOS app can be used with 5 GHz Wi-Fi for live image preview, camera control, and settings configuration. Additional features shared with the E2-S6 include side control buttons, time-lapse, slow motion, and live streaming via the E2-S6G's Gigabit Ethernet port.

Use the E2-SGG camera with the separately available Z CAM eND Module to add 1.7 to 6.7 stops of ND filtration in 1/3-stop increments. Power options include a built-in L-series battery mount and a 2-pin LEMO port for using a separately available power adapter. This camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.

ProRes RAW not supported yet

Technical Detail

Sensor Type: Super35 CMOS

Sensor Resolution: Not Specified by Manufacturer

Shutter Type: Global Shutter

ISO : 1250 to 20,000 (Expanded), 1250 (Native)

Advertised Dynamic Range : 14 Stops

Camera

Lens Mount : Canon EF

Lens Communication: Yes

Interchangeable Lens Mount: Yes

Shutter Speed : 1/1 to 1/8000 sec

Shutter Angle : 1 to 360°

Built-In ND Filter: None

Built-In Microphone Type: Stereo

Media/Memory Card Slot : Single Slot CFast (CFast 2.0)

Internal Recording

Raw Recording: Z RAW 6144 x 4096 at 30 fps (1.2 Gb/s)

Recording Mode

s H.264/H.265/MOV/MP4 4:2:0 10-Bit:

6144 x 4096p up to 30 fps (300 Mb/s)

6144 x 3240p up to 30 fps (300 Mb/s)

5760 x 3240p up to 30 fps (300 Mb/s)

6144 x 2592p up to 50 fps (300 Mb/s)

4096 x 2160p up to 56 fps (300 Mb/s)

4096 x 1728p up to 70 fps (300 Mb/s)

3840 x 2160p up to 56 fps (300 Mb/s)

1920 x 1080p up to 70 fps (300 Mb/s)

Variable Frame Rates : Up to 70 fps

Gamma Curve: FLAT, HDR-HLG, Rec709, Z-Log2

Audio Recording : 2-Channel 24-Bit 48 kHz AAC Audio / MOV 2-Channel 24-Bit 48 kHz LPCM Audio

Still Image Support : Not Specified by Manufacturer

External Recording

Video Output : 4:2:2 10-Bit via HDMI, 4096 x 2160p at 60 fps

IP Streaming : Yes

Interfaces

Video Connectors : 1 x HDMI (HDMI 2.0) Output

Audio Connectors:

1 x 1/8" / 3.5 mm Stereo Input

1 x 5-Pin LEMO Input

1 x 1/8" / 3.5 mm Stereo Output

Other I/O :

1 x USB Type-C Camera Interface Data, Control Input/Output

1 x 2.5 mm LANC Control Input

1 x RJ45 Gigabit Ethernet, LAN Data, Control, Monitor Input/Output

2 x 4-Pin LEMO Camera Interface Control Input/Output

Wireless Interfaces: 5 GHz Wi-Fi Control

Display

Display Type : Fixed LCD

EVF

EVF : Optional, Not Included

Power

Battery Type : Sony L-Series

Power Connectors:

1 x 2-Pin LEMO (12 VDC) Input

1 x 2-Pin LEMO (12 VDC) Output

Environmental

Operating Temperature: 32 to 104°F / 0 to 40°C

Storage Temperature: -4 to 140°F / -20 to 60°C

Material of Construction : Aluminum

Dimensions : 4.81 x 3.91 x 3.59" / 122.25 x 99.25 x 91.2 mm

Weight: 2.4 lb / 1.09 kg
