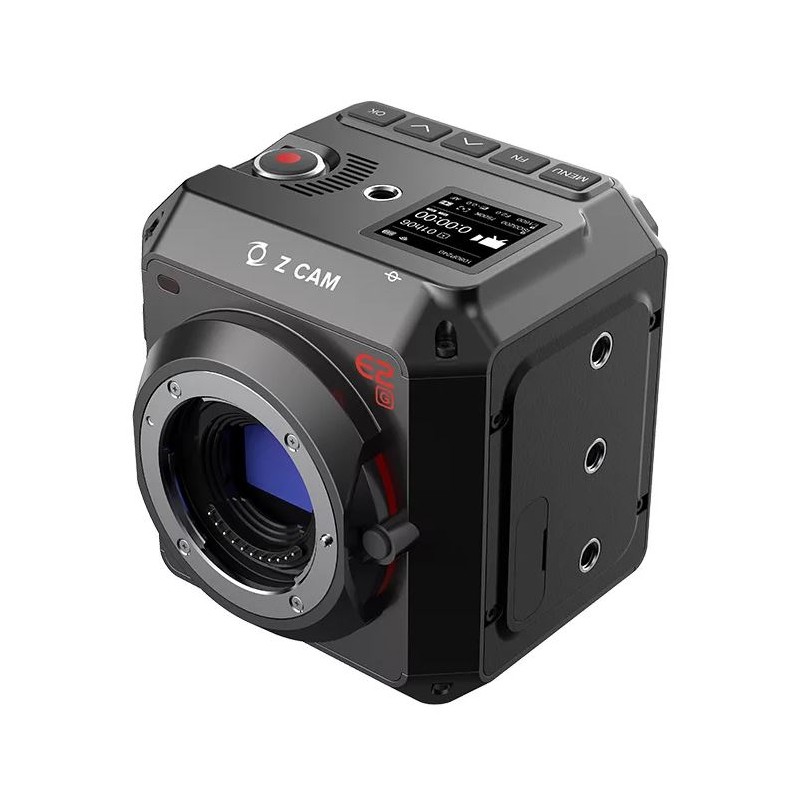

Z-CAM E2G 4K Cinema Camera

4K Cinema Camera

4K @ 30fps, 10-bit color

12 stops dynamic range

1" CMOS sensor with Global Shutter

Gigabit Ethernet for data, control & live streaming*

iOS app for control setting & live preview

Multi-cam synchronization**

*Requires Z CAM software running on PC

**Requires Z CAM E2 sync cable (not included)

If you're a Z CAM 6K fan and shoot a lot of fast-paced action, the Canon EF mount E2-S6G S35 6K Cinema Camera with Global Shutter is designed for you. This member of the Z CAM 6K camera lineup features a global shutter that captures all the image sensor information in one fell swoop, eliminating the wobbly, Jello-like effects and skewed motion artifacts that rolling shutters can produce in some quick-moving shots. Attributes shared with the E2-6S include 10-bit 4:2:2 color support, ProRes and ZRAW capture, a nominal 14-stop dynamic range, timecode support, and data capture rates up to 300 Mb/s using CFast 2.0 media. The E2-S6G's internal capture rates differ somewhat with top ranges of 30 fps in 6K Open Gate, 48 fps in DCI 6K, 76 fps in DCI 6K 2.4:1, 56 fps in DCI 4K, 70 fps in DCI 2.4:1, 56 fps in UHD 4K, and 70 fps in 1080p.

The E2-S6G supports up to 4K60, 10-bit 4:2:0 video output via its HDMI 2.0 port, and it records audio in 24-bit 48 kHz using AAC or PCM (PCM for MOV only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port. Versatile camera control options are offered via two serial ports, a 2.5mm LANC connector, a USB Type-C port, and an Ethernet port. The Z Camera iOS app can be used with 5 GHz Wi-Fi for live image preview, camera control, and settings configuration. Additional features shared with the E2-S6 include side control buttons, time-lapse, slow motion, and live streaming via the E2-S6G's Gigabit Ethernet port.

Use the E2-SGG camera with the separately available Z CAM eND Module to add 1.7 to 6.7 stops of ND filtration in 1/3-stop increments. Power options include a built-in L-series battery mount and a 2-pin LEMO port for using a separately available power adapter. This camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.

Global Shutter

A global shutter captures all the image sensor information at once

Eliminates the Jello effect and motion skewing that sometimes occurs with a rolling shutter camera

Provides crisp images even during fast-paced moves and panning shots

ZRAW Capture

ZRAW capture at select resolution and frame rate combinations

Raw capture offers fine-tuned color grading and exposure

Enables you to apply multiple "looks" to create different moods or flashback effects, etc.

Note:

Requires the use of Z CAM's VideoSuite.

Up to 6K Capture

Record 6K up to 30 fps to the limit of your recording media's capacity

CMOS sensor with 14 stops of dynamic range

ZRAW, REC. 709, Z-Log2, HLG, FLAT, Concert, and Vivid profiles

H.265 (10-bit color) internal recording on CFast 2.0 cards

4K60, 10-bit 4:2:2 video output through HDMI 2.0

Interfaces and Expandability

USB 3.0 Type-C for camera control and data transformation only

Two serial ports for camera control

Ethernet port for live view, control, and file transfer to a browser or a computer running Z CAM software

LANC port for remote control including power on/off

Z CAM App

Z Camera is a mobile application for camera live preview and control through 5G or 802.11n Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and it also has advanced features on the camera live preview.

Camera Settings

White balance: Auto, preset, manual (2300 to 7500K)

Focus modes: MF, AF, CAF

Image: Brightness, contrast, saturation, sharpness

LUT: REC. 709, Z-Log2, FLAT, HLG

Timecode: Current time, manual input

Camera Body

Made from aluminum for optimal strength and heat dissipation

2-pin LEMO, 12 VDC power output

Powered via optional 2-pin LEMO, 12 VDC adapter or optional L-series batteries

Technical Detail

Sensor Type

1" CMOS Sensor

Sensor Size

14.13 x 7.45 mm

Effective Pixels

8.85M

Dynamic Range

12 Stops (Z-Log2)

Lens Mount

Micro Four Thirds

Microphone

Built-in Stereo Microphone

Recording

Resolution

4096 x 2160 / 3840 x 2160

3536 x 2092 / 1920 x 1080

Frame Rate

29.97 / 25 / 24 / 23.98 fps

Max Variable Frame Rate

120 fps for 1920 x 1080 (H.265 & H.264)

Max Bit Rate

200 Mbps for all resolutions (H.265 & H.264)

Color Bit Depth

10-bit (H.265) / 8-bit (H.264)

Video Encoder

H.265 main 10 profile / H.264 high profile

Audio Format

24-bit 48 kHz

Audio Encoder

AAC / PCM (for MOV only)

File Format

MOV / MP4

Record Mode

Video / Time Lapse Video

Settings

ISO

Auto, Manual (1250 ~ 40000)

Shutter

Shutter Speed: Auto, Manual (up to 1/8000") or

Shutter Angle: Auto, Manual (1° ~ 360°)

White Balance

Auto, Preset, Manual (2300K ~ 7500K)

Focus Mode

MF / AF / CAF


Brightness / Contrast / Saturation / Sharpness

LUT

Rec.709 / Z-Log2 / FLAT / HLG

Audio

Audio In / Audio Out Level

Time Code

Current Time / Manual Input

Storage

Media

CFAST 2.0

File System

exFAT

Connectivity

HDMI

HDMI 2.0 Type A (video output up to C4K @ 30fps)

USB

USB 3.0 Type C for camera control & data transfer only

I/O

10-pin LEMO port for synchronization (requires additional sync cable, not included)

COM

DB-9 connector, supports RS-232

Remote Control

2.5 mm jack socket (Sony LANC compatible)

Audio-in

3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)

Audio-out

3.5 mm stereo jack socket

Wi-Fi

802.11n, 2.4G with external antenna port

Ethernet

Gigabit Ethernet port for control, setting & live streaming

Power

Battery

Sony NP-F series compatible (Battery not included)

External Power Supply

DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter, hot swap supported

Physical

Material

Aluminum Alloy

Weight

757 g (without lens)

Dimensions (W x H x D)

91.2 mm x 99.2 mm x 89.1 mm (without lens)

Environment

Storage Temperature

-20 °C ~ 60 °C

Operation Temperature

0 °C ~ 40 °C
