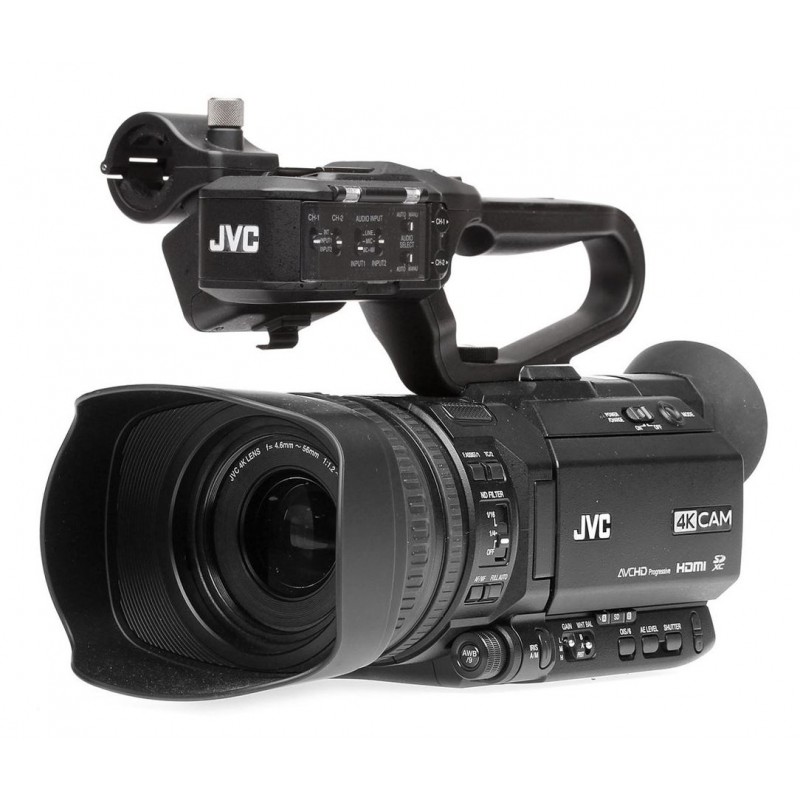

JVC GY-HM250E Camcorder 4K

JVC Camcorder 4K 1/2.3" CMOS Sensor 4K Ultra HD 24/30p Recording at 150Mbps 4:2:2 1080p Video up to 60p at 50Mbps Dual SDHC/SDXC Memory Card Slots 3G-SDI and HDMI Output Live 4K UHD Output via HDMI 2-Channel XLR Audio Inputs 12x Optical Zoom Lens Live HD Streaming via Optional Adapters Simultaneous Streaming and Recording

• 1/2.3" CMOS Sensor, 12x Optical Zoom
• Records UHD 4K 24/30p at 70/150 Mb/s
• IP Control & Full HD Live Streaming
• 4:2:2 4K Video at 24/30p
• Lower-Thirds & Titling System in HD
• Zeroconf, 1-Button LAN Configuration
• Facebook Live Integration
• 3G-SDI & HDMI Out, Live HDMI UHD 4K Out
• 2-Channel XLR Audio Inputs

The JVC GY-HM250 UHD 4K Streaming Camcorder with Built-in Lower-Thirds Graphics is a full-featured pro camcorder that enables a single operator to add lower-thirds and titles while recording in HD or streaming?no external character generator or switcher is required. It features a 1/2.3" sensor and captures UHD 4K video at 24/30p, and 4:2:2 4K at 24/30p. This versatile camera offers you the option of recording UHD 4K at rates up to 150 Mb/s to SDXC Class 3 cards or up to 70 Mb/s to SDXC/SDHC Class 10 cards.

The GY-HM250's integrated IP engine enables you to stream Full HD in the field directly from the camcorder and offers remote camera control and monitoring from your mobile device or laptop. Compatible with RTMP, Zixi, and Wowza streaming, the GY-HM250 offers one-click zeroconf configuration when using a common LAN between cameras. A firmware update brings Facebook Live integration to the camera, streamlining the connection process. In HD mode, custom graphics can be created and controlled via a browser-controlled tablet or smartphone. The GY-HM250 also comes with pre-installed color schemes and the ability to upload icons or logos to add a personalized look to your footage.

An integrated 12x zoom lens with a tele-macro function provides a 35mm equivalent focal range of 29.6 to 355mm, and a 24x dynamic zoom mode is available when recording in HD. For composing and monitoring video, the camcorder features a 3.5" LCD, a 0.24" viewfinder, and a smart focus assist function. Additional features include dual SDHC/SDXC card slots, two internal ND filters, and a built-in stereo microphone. Designed to fit into professional workflows, the JVC GY-HM250 camcorder comes with 3G-SDI and HDMI outputs and dual XLR audio inputs. A top handle unit with the integrated audio box, a 7.4 VDC battery, and an AC adapter are included with the camera.

Streaming requires a connection and the use of a wireless LAN, Ethernet, or cellular network to USB Type-A, USB 2.0 adapter.

Facebook Live integration simplifies and streamlines by adding it as a menu choice. This is available via a firmware upgrade, which is included with the camera and can be downloaded for free.

Technical Detail

UHD 4K Recording with 150 and 70 Mb/s Options

Record UHD 4K at rates up to 70 Mb/s onto lower-cost Class 10 SDHC/SDXC cards, or at 150 Mb/s using SDXC UHS-I Class 3 cards

Add Graphic Overlays in HD or While Streaming

Display custom lower-thirds and titles while recording in HD, or streaming?no external character generator or switcher required

Built-In Streaming Technology

An integrated streaming engine enables the camcorder to live stream Full HD video using RTMP, Zixi, and Wowza

Note:

Requires an appropriate network connection and adapter (USB Type-A, USB 2.0 port)

Live 4K 3G-SDI and HDMI Output

Connect a UHD 4K monitor using either the 3G-SDI or HDMI output and view the camera's live 4K signal

4:2:2 4K and Full HD Recording Options

Record broadcast-quality signals in 4:2:2 4K at 24 or 30p, or capture Full HD at 24 to 60p at rates up to 50 Mb/s

Additional Features

12x optical zoom with 24x dynamic zoom in Full HD

3.5" LCD display, and 2.4" color EVF

Dual SDXC/SDHC card slots

Two internal ND filter settings

2-channel XLR audio inputs with phantom power

Integrated stereo microphone

A histogram display aids in calculating your exposure

Tally with steady and blinking settings

Imaging

Image Sensor 1-Chip 1/2.33" CMOS Sensor

Sensor Resolution 12.4 MP

Gain 0 to 24 dB (Native)

30 to 36 dB (Expanded)

White Balance Range 2300 to 15,000K

Lens

Focal Length 4.6 to 56mm

35mm Equivalent Focal Length 29.6 to 355mm

Optical Zoom Ratio 12x

Max Digital Zoom 24x

Maximum Aperture f/1.2 to 3.5

Filter Size 62 mm

Control Rings Focus

Zoom

Image Stabilization Optical

Focus Control Autofocus

Manual Focus

Camera

Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16) ND Filters
