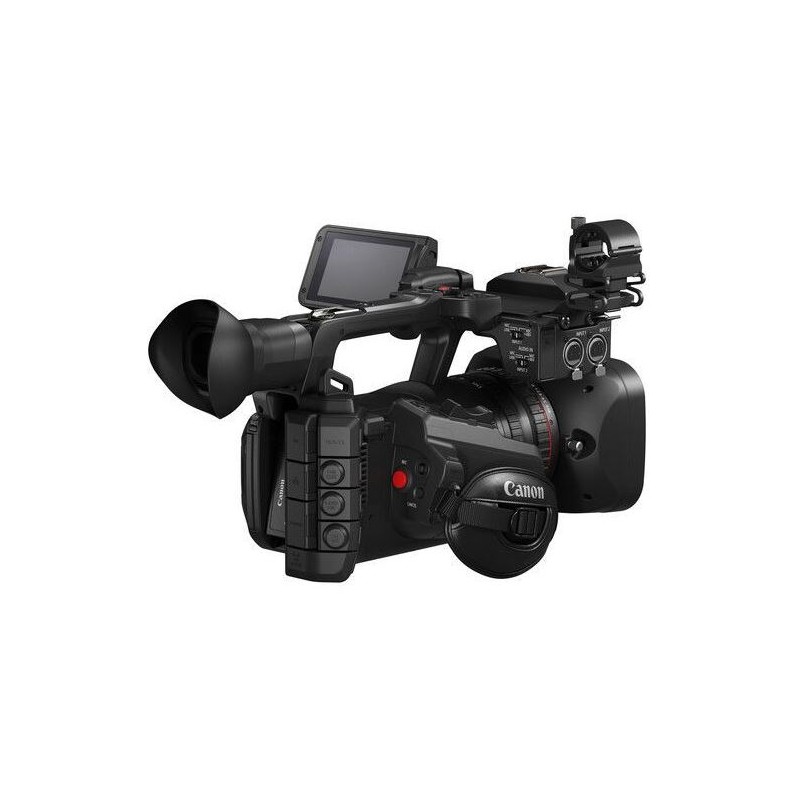

Canon XF605 UHD 4K HDR Pro Camcorder

The XF605 UHD 4K HDR Pro Camcorder by Canon seamlessly integrates high-resolution capture capabilities with a mobile workflow, making it the preferred choice for ENG, sports, entertainment, and narrative applications. This compact camcorder features a 1" CMOS sensor and DIGIC DV 7 engine, ensuring high sensitivity, customizable Canon cinema color matrix options, Canon Log 3, HDR support, and advanced autofocus modes like Eye AF and EOS iTR AF X (head detection). It records up to UHD 4K60 4:2:2 10-bit in various formats simultaneously onto dual SD card slots. With a Direct Touch Control touchscreen menu, four-channel XLR audio, simultaneous outputs, USB Type-C video output, and an iPhone app, the XF605 builds upon the established features of Canon's XF series, including individual focus, iris, and zoom rings, and built-in ND filters.

Key Features:

High-Resolution Performance: Ideal for ENG, sports events, live entertainment, or broadcast-style footage, the XF605 delivers high-resolution video in a compact form, complemented by a mobile workflow via an iPhone app, LAN port, and built-in dual-band, MIMO Wi-Fi.

UHD 4K CMOS Sensor: Capture rates of up to UHD 4K 10-bit 4:2:2, including broadcast-friendly 59.94 frame rates, with high-speed capture at 1080p120 for slow-motion shots. Its high sensitivity up to 2000 lux at f/12 suits dimly lit locations.

DIGIC DV 7 Engine: Powers processing of 4K, 10-bit 4:2:2 video and selectable color matrix settings, supporting Canon Log 3/HLG and PQ color spaces. Dual SD card slots enable dual recording, relay recording, and multiple simultaneous recording options.

15x Canon L Zoom: Offers a 15x optical/30x digital zoom (25.5-382.5mm 35mm equivalent) for versatile shooting, with separate controls for focus, iris, and zoom, and three optical IS choices for stabilization.

Advanced Autofocus: Features Eye AF and EOS iTR AF X (head detection) for maintaining sharp focus during dynamic shots.

Frame and Interval Recording: Create time-lapse effects with Frame and Interval Recording modes.

Cinema Color: Utilize cinema color matrix selections and Canon Log3, HLG, and PQ HDR for detailed images.

USB Video Out: Enables webcam functionality without an HDMI to USB adapter.

New Touchscreen: Intuitive touchscreen control, including start/stop functionality.

XFT iPhone App: Facilitates mobile news workflow with proxy footage exchange and integration into assignment planning software.

HDR-Compatible Viewing Options: Simultaneous viewing via EVF and fold-out LCD screen, with HDR compatibility.

4-Channel Audio: Multifunction shoe allows access to four inputs on the XLR audio unit.

Lightweight, Compact Form: Approximately 25% lighter and 10% smaller than its predecessor XF705.

Wired Remote Control: Use LANC-based RC-V100 or NU (RS-422) controller for networked control.

Package Includes:

• Canon XF605 UHD 4K HDR Pro Camcorder
• Canon BP-A30 Battery Pack
• Canon Single Battery Charger
• Canon CA-CP200L Compact AC Power Adapter
• Lens Cap
• Lens Hood

Canon XF605 Camcorder

Imaging:

Sensor Resolution: Actual: 13.4 Megapixel (4268 x 3148), Effective: 8.29 Megapixel (3840 x 2160)

Sensor Type: 1" CMOS Sensor

Image Stabilization: Optical in Integrated Lens

Built-In ND Filter: Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Shutter Type: Rolling Shutter

Shutter Speed: 1/4 to 1/2000 sec

Shutter Angle: 11 to 360°

Sensitivity: f/12 at 2000 lux

Minimum Illumination: 1.5 Lux at 1/30 Shutter Speed

White Balance: 2000 to 15,000K

Lens:

Focal Length: 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)

Optical Zoom Ratio: 15x

Max Digital Zoom: 30x (in 1080p)

Maximum Aperture: f/2.8

Minimum Aperture: f/4.5

Optical Design: 18 Elements in 14 Groups

Minimum Focus Distance: Entire Zoom Range: 2.0' / 60.0 cm, Wide: 0.4" / 1.0 cm

Filter Size: 58 mm

Control Rings: Focus, Zoom, Iris

Focus Control: Autofocus, Manual Focus

Recording:

Recording Modes: Various options including MXF/XF-AVC 4:2:2 10-Bit, H.265/MP4 4:2:2 10-Bit, H.265/MP4 4:2:0 10-Bit, H.264/MP4 4:2:0 8-Bit

Variable Frame Rates: Up to 120 fps

Gamma Curve: Canon Log 3, HDR-HLG

Audio Recording: 2-Channel 16-Bit 48 kHz AAC Audio, 4-Channel 24-Bit 48 kHz LPCM Audio

IP Streaming: MPEG2 format at various resolutions and frame rates

Interface:

Media/Memory Card Slot: Dual SD/SDHC/SDXC slots

Video Connectors: HDMI (HDMI 2.0) Output, BNC (12G-SDI) Output

Audio Connectors: 2 x 3-Pin XLR Input, 1 x 1/8" / 3.5 mm Stereo Input, 1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O: USB Type-A Output, USB Type-C, BNC Genlock, Sync Input/Output, BNC Timecode Input/Output, 2.5 mm Control, 8-Pin D-Sub Control, RJ45 LAN Input/Output

Wireless Interfaces: 2.4 / 5 GHz MIMO Wi-Fi for Video Output, Audio Output, and Control

Monitor:

Size: 3.45"

Resolution: 2,760,000 Dot

Display Type: Articulating Touchscreen LCD

EVF:

EVF: Attached

EVF Display Type: OLED

Screen Size: .36"

EVF Resolution: 1,770,000 Dots

Power:

Battery Type: Canon BP-A Series

Power Connectors: Barrel (24 VDC) Input

Power Consumption: 21.5 W

Environmental:

Operating Temperature: 32 to 104°F / 0 to 40°C

Operating Humidity: 0 to 85%

Physical:

Accessory Mount: Cold Shoe Mount, Multi-Interface Shoe

Tripod Mounting Thread: 1/4"-20 Female, 3/8"-16 Female

Built-In Light: Infrared

Dimensions: 15.2 x 8.6 x 8.3" / 385 x 219 x 210 mm (With Protrusions), 13.1 x 6.8 x 6.6" / 333 x 173 x 168 mm (Without Protrusions)

Weight: 4.4 lb / 2010 g
