RED V-RAPTOR XL [X] 8K VV Production Pack (V-Lock)

The V-RAPTOR® XL [X] 8K VV amalgamates the strengths of RED’s two camera families into a robust, versatile tool.

Experience unparalleled image quality and an enhanced on-set workflow with the V-RAPTOR® XL [X] 8K VV. Combining the impressive frame rates, low-light performance, and resolution of the V-RAPTOR line with the global shutter innovations of KOMODO®, the V-RAPTOR [X] 8K VV sensor represents the pinnacle of digital cinema imaging advancements. Harnessing RED’s latest 8K VV sensor, the V-RAPTOR XL [X] maximizes the advantages of large format, global shutter, high framerate, and 8K acquisition within a production-ready XL camera body.

Designed to cater to high-end motion picture and television productions, as well as filmmakers seeking an all-in-one solution, the V-RAPTOR XL [X] offers an array of features:

• Dual voltage battery support for compatibility with various common batteries found on set, including 14 V and high voltage 26 V V-Lock or Gold Mount options.
• Built-in electronic ND for precise density selection in 1/4, 1/3, and full stop increments, granting unprecedented exposure and depth of field control within a cinema camera of this caliber.
• 12 V and 24 V auxiliary power outputs enabling camera assistants to power all necessary peripherals from a centralized location.
• Front-facing 3G-SDI and 2-Pin 12 V power, along with compatibility with the DSMC3 RED Touch 7.0” LCD, catering to the preferences of camera operators.
• Wireless timecode, genlock, and camera control, alongside four SDI outputs, supporting DITs with comprehensive access to necessary tools.
• Enhanced in-camera audio performance for streamlined single system audio setups.

Additionally, the V-RAPTOR XL [X] and the DSMC3 platform boast advanced connectivity solutions facilitating applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP, or live 4K over SMPTE ST 2110, among others.

Pushing boundaries further, the V-RAPTOR XL [X] 8K VV introduces RED Global Vision, a suite of tools leveraging the global shutter sensor to enhance flexibility and ease of use throughout the production process. Features like Extended Highlights extend the camera's ability to capture highlight detail, catering to HDR finishes or delivering softer and more nuanced highlight roll-off for SDR. Additionally, RED Global Vision incorporates Phantom Track, streamlining virtual production environments utilizing GhostFrame™ or Frame Remapping, and facilitating distinct R3D clip capture per sub-frame slice, with live monitoring available on-set over each SDI feed.

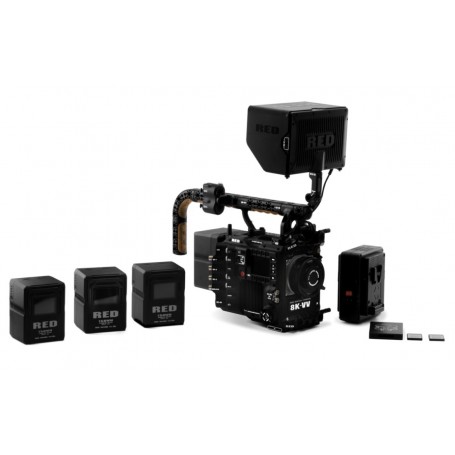

Included in the package are:

• 1x V-RAPTOR XL [X] 8K VV Camera System
• 1x DSMC3 RED Touch 7” LCD
• 1x DSMC3 RED Touch 7.0" LCD Hood
• 1x DSMC3 RMI Cable 18"
• 2x RED PRO CFexpress 2TB
• 1x RED CFexpress Card Reader
• 4x REDVOLT XL-V batteries
• 1x RED Compact Dual V-Lock Charger
• 1x DSMC3 RED 5-Pin to Dual XLR Adapter
• 1x V-RAPTOR XL Top Handle with Extensions
• 1x V-RAPTOR XL Top 15mm LWS Rod Support Bracket
• 1x V-RAPTOR XL Bottom 15mm LWS Rod Support Bracket
• 1x V-RAPTOR XL Riser Plate

Specifications:

Sensor Type: V-RAPTOR [X] 8K VV 35.4MP Global Shutter CMOS

Effective Pixels: 8192 x 4320

Sensor Size: 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)

Dynamic Range: 17+ stops

Built-in ND: Motorized clear filter and precision controlled electronic ND filter

Electronic ND minimum density: 2 stops, maximum density: 7 stops

Electronic ND selectable increments: 1/3 stops, 1/4 stops, and 1 stop

Mount Type: Interchangeable Lens Mount

Included: V-RAPTOR XL PL Mount (Shimmable)

Optional: V-RAPTOR XL Locking Canon EF Mount

Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control

Media Type: CFexpress Type B

Battery Type: Integrated Dual Voltage 14/26 V V-Lock battery interface

Max Data Rates: Up to 800 MB/s using RED branded or other qualified CFexpress media cards

REDCODE® RAW Max Frame Rates:

120 fps at 8K 17:9, 150 fps at 8K 2.4:1

140 fps at 7K 17:9, 175 fps at 7K 2.4:1

160 fps at 6K 17:9, 200 fps at 6K 2.4:1

192 fps at 5K 17:9, 240 fps at 5K 2.4:1

240 fps at 4K 17:9, 300 fps at 4K 2.4:1

320 fps at 3K 17:9, 400 fps at 3K 2.4:1

480 fps at 2K 17:9, 600 fps at 2K 2.4:1

Playback Frame Rates (Project Time Base): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

Best Available REDCODE® Settings: Various settings including HQ, MQ, LQ, and ELQ at different resolutions and frame rates

REDCODE RAW Acquisition Formats: Various formats including 8K, 7K, 6K, 5K, 4K, 3K, and 2K

Apple ProRes: Dedicated recording in various ProRes formats up to 4K

Construction: Aluminum Alloy

Dimensions: 200.81 mm x 151.38 mm x 165.9 mm / 7.9 in. x 6 in. x 6.5 in. (LxWxH, largest fixed dims.)

Weight: 7.99 lbs / 3.62 kg (V-Lock with PL Mount)

DC Power Input: 19.5-34 V via 4-Pin 2B DC-IN

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: –20°C to 50°C (–4°F to 122°F)

Storage Relative Humidity: 0% to 85% non-condensing

RED Global Vision: Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios. Phantom Track recording mode to capture multiple LED instances as dedicated clips.

Color Management: Image Processing Pipeline 2 (IPP2)

Audio: Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz

Integrated dual channel mic/line/+48V input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz

3.5mm stereo headphone port

Autofocus: Phase Detect with Face Detection

IP Connected: Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110

Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via Frame.io or Amazon S3

Wired control via USB-C or 9-Pin Gigabit Ethernet for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload

Power Outputs: Regulated 12 V Outputs, Regulated 24 V Connectors

Monitor Outputs: Proprietary Top Accessory Port for Monitoring and Control, various SDI outputs

Monitor Options: DSMC3 RED Touch 7.0” LCD, RED Compact EVF with DSMC3 Adapter A, etc.

Additional I/O: Tri-Level Genlock via BNC, Linear Timecode (LTC) through 5-Pin 0B, etc.

RED Control & RED Control Pro: Control and live preview from iOS or Android devices, advanced control via Pro App available from Apple App Store, etc.
