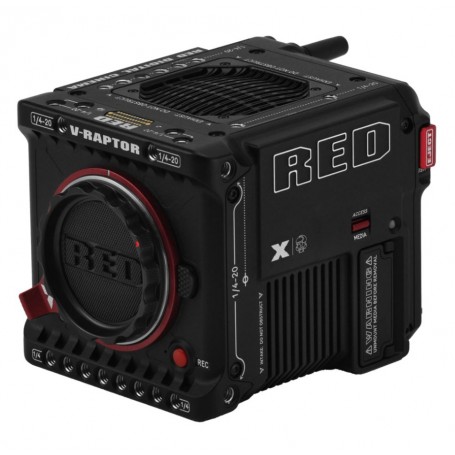

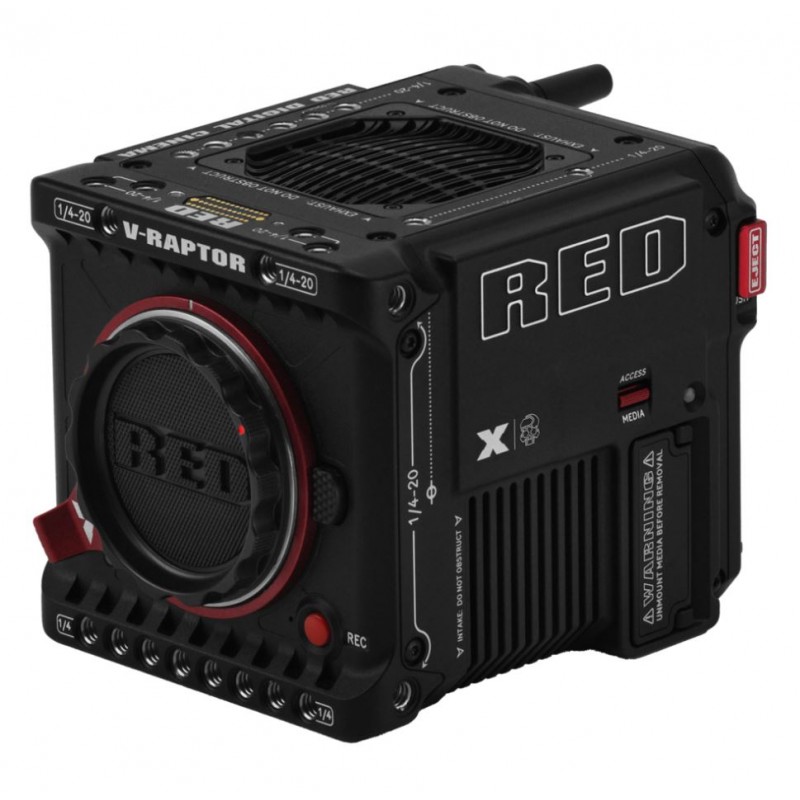

RED V-RAPTOR [X] 8K VV

V-RAPTOR® [X] 8K VV integrates the finest attributes from RED’s diverse camera lineages, forming a robust, versatile solution for all cinematic endeavors.

MERGING EXCELLENCE

The V-RAPTOR® [X] 8K VV harmonizes the exceptional frame rates, low-light capabilities, and resolution of the V-RAPTOR® series with the global shutter innovations of KOMODO®. This amalgamation results in the pinnacle of digital cinema advancement. Harnessing RED’s latest 8K VV sensor, the V-RAPTOR [X] exploits the advantages of large format, global shutter technology, high frame rates, and 8K acquisition, all housed within a compact, feature-rich body weighing just over 4lbs.

SETTING A NEW STANDARD

Marking a significant milestone, the V-RAPTOR [X] stands as the inaugural large format global shutter camera. It inherits key features from its predecessor, the original V-RAPTOR, including dual 12G SDI ports for distinctive monitoring perspectives, a secure Canon RF-style lens mount for versatile lens choices, and CFexpress Type B media support, capable of handling formats up to 800MB/s, including 8K 120P. Furthermore, enhancements such as improved in-camera audio preamps and a revamped sensor cavity engineered to mitigate stray light and enhance contrast performance, further solidify the V-RAPTOR's legacy.

EMBRACING GLOBAL VISION

The V-RAPTOR [X] 8K VV ventures beyond boundaries with the introduction of RED Global Vision, a cutting-edge suite of tools utilizing the global shutter sensor to offer heightened flexibility and user-friendliness across the production spectrum. Global Vision’s Extended Highlights empowers the camera to delve deeper into highlight detail, facilitating richer HDR finishes or smoother highlight roll-off for SDR. Additionally, RED Global Vision introduces Phantom Track to streamline Virtual Production environments utilizing GhostFrame™ or Frame Remapping, enabling the capture of individual R3D clips per sub-frame slice, alongside live monitoring over each SDI.

CONNECTED TO THE FUTURE

Moreover, the V-RAPTOR [X] and the DSMC3 platform feature advanced connectivity solutions, enabling functionalities such as remote control and monitoring, in-camera integration with Frame.io, direct upload to AWS, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.

Package includes:

• V-RAPTOR [X] 8K VV Body
• DSMC AC Power Adaptor Pack (150W)
• RED Logo Sticker​
• V-RAPTOR [X] Information Card (including registration and support information)​

Specifications:

SENSOR TYPE: V-RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS

EFFECTIVE PIXELS: 8192 x 4320

SENSOR SIZE: 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)

DYNAMIC RANGE: 17+ stops

MOUNT TYPE: Integrated locking RF mount with electronic communication

Supports /i PL lenses with RED RF to PL Adapters

Supports Canon EF Adapter with communication and other adapters based on the RF mount

MAX DATA RATES: Up to 800 MB/s using RED branded or other qualified CFexpress media cards

REDCODE® RAW MAX FRAME RATES:

120 fps at 8K 17:9, 150 fps at 8K 2.4:1

140 fps at 7K 17:9, 175 fps at 7K 2.4:1

160 fps at 6K 17:9, 200 fps at 6K 2.4:1

192 fps at 5K 17:9, 240 fps at 5K 2.4:1

240 fps at 4K 17:9, 300 fps at 4K 2.4:1

320 fps at 3K 17:9, 400 fps at 3K 2.4:1

480 fps at 2K 17:9, 600 fps at 2K 2.4:1

BEST AVAILABLE REDCODE® SETTINGS:

REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps

REDCODE LQ and ELQ at 8K 17:9 up to 120 fps

REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps

REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps

REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps

REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps

REDCODE® RAW ACQUISITION FORMATS:

Various formats including 8K, 7K, 6K, 5K, 4K, 3K, 2K, and Anamorphic

APPLE PRORES:

Recording in ProRes formats up to 4K (4096x2160) 120P

Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P

CONSTRUCTION: Aluminum Alloy

DIMENSIONS: 149.63 mm x 115.5 mm x 108 mm / 5.9 in. x 4.5 in. x 4.3 in. (LxWxH, largest fixed dims.)

WEIGHT: 4.03 lbs / 1.83 kg (without body cap and CFexpress card)

MEDIA TYPE: CFexpress Type B

BATTERY TYPE: Integrated V-Lock battery interface optimized for Micro V-Lock Batteries

DC POWER INPUT: 11-17 V via 6-Pin DC-IN

OPERATING TEMPERATURE: 0°C to 40°C (32°F to 104°F)

STORAGE TEMPERATURE: –20°C to 50°C (–4°F to 122°F)

STORAGE RELATIVE HUMIDITY: 0% to 85% non-condensing

RED GLOBAL VISION:

Enhanced dynamic range capabilities

Phantom Track recording mode for capturing LED instances as dedicated clips

COLOR MANAGEMENT: Image Processing Pipeline 2 (IPP2)

Supports 33×33×33 3D LUTs

Supports import and adjustment of CDLs

AUDIO:

Integrated dual-channel digital mono microphones, uncompressed, 24-bit 48 kHz

Integrated dual-channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz

3.5mm stereo headphone port

AUTOFOCUS: Phase Detect with Face Detection

IP CONNECTED:

Compatible with RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110

Dual-band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3

Wired control via USB-C or Gigabit Ethernet allowing remote camera control, live MJPEG preview video feed, and remote media offload

MONITOR OUTPUTS:

Proprietary Top Accessory Port for Monitoring and Control

Integrated dual 12G-SDI with various modes

SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

MONITOR OPTIONS:

DSMC3 RED Touch 7.0” LCD

RED Compact EVF with DSMC3 Adapter A

Wireless 1080p live preview video feed via Wi-Fi

Integrated 2.4" LCD for camera control (no preview video)

ADDITIONAL I/O:

Tri-Level Genlock Input via 9-Pin EXT

LTC Timecode Input via 9-Pin EXT

RS232 CTRL (using RCP2) via 9-Pin EXT

RED CONTROL & RED CONTROL PRO:

Access full camera controls and live preview from iOS or Android devices

Pro App available for advanced controls and management

Standard app available from the Apple App Store and Google Play Store

RED Control Pro available via Apple App Store only (additional purchase required)

Wireless or wired control via USB-C
