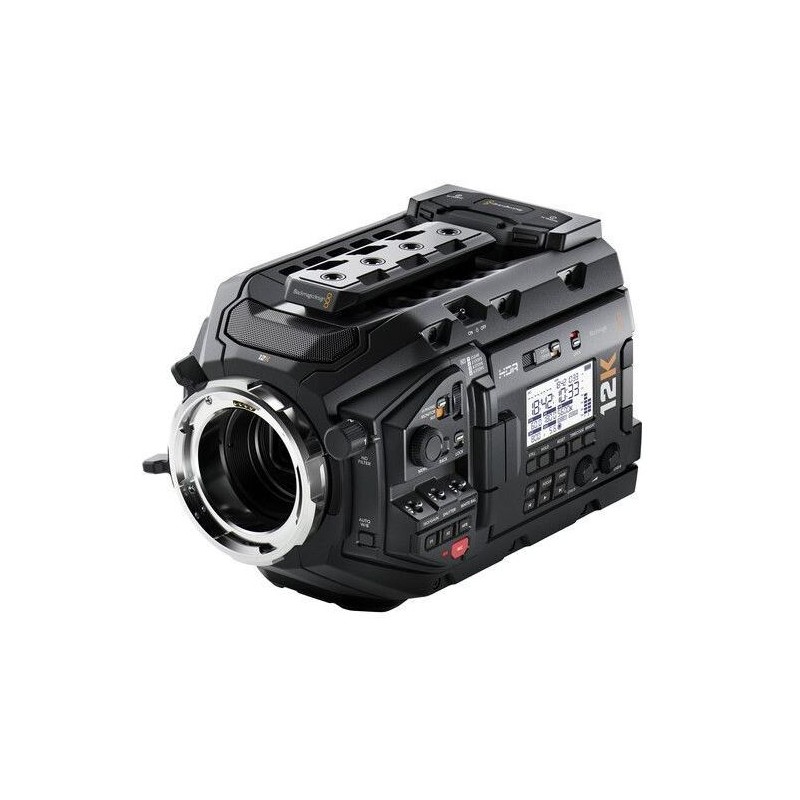

Blackmagic Design URSA Mini Pro 12K (Demo Primjerak)

Introducing the Blackmagic URSA Mini Pro 12K, the world's most advanced digital film camera. With its revolutionary 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range, all packed into the award-winning URSA Mini body, this camera is set to redefine digital filmmaking.

Digital Film, Extreme Resolution:

The URSA Mini Pro 12K offers unprecedented resolution, surpassing traditional motion picture film. Its incredible detail, wide dynamic range, and rich color make it perfect for feature films, episodic television, and immersive IMAX experiences. The high definition around objects makes it ideal for green screen work and VFX, ensuring seamless integration of live action and CGI.

Cinematic Super 35 12K Sensor:

Featuring a revolutionary sensor with 80 megapixels per frame, the Super 35 sensor offers exceptional dynamic range and a native ISO of 800. The 12K sensor is optimized for multiple resolutions, allowing shooting in 12K at 60 fps or scaling down to 8K or 4K without compromising quality or field of view.

Shoot in 12K, Edit on a Laptop:

The URSA Mini Pro 12K and Blackmagic RAW were designed together to enable effortless 12-bit RAW workflows in 12K. Blackmagic RAW's efficiency allows shooting and editing in 12K on a laptop, a capability unmatched by other codecs. The massive resolution enables reframing shots in post for delivery in 8K and 4K, offering unparalleled flexibility in post-production.

Blackmagic RAW Fueled Image Capture:

Blackmagic RAW enables cinema-quality 12-bit, 80-megapixel images at up to 60 frames per second. With options for constant quality and constant bitrate encoding, Blackmagic RAW ensures the best possible images with predictable file sizes. Recording RAW to two cards simultaneously allows for redundancy and flexibility in shooting.

Optimized for Fast Flexible Post Production:

Shooting RAW in 12K preserves detail, exposure, and color during post-production. Blackmagic RAW is highly optimized, multi-threaded, and GPU-accelerated, ensuring seamless editing without the need for proxies. The resolution and quality of 12K images provide unprecedented flexibility for color grading, compositing, and visual effects in 4K or 8K.

Generation5Color Science:

The new Generation 5 Color Science maximizes the color data from the URSA Mini Pro 12K sensor, delivering even better color response and rendering of highly saturated colors. This advanced color science informs complex Blackmagic RAW image processing, ensuring consistency and quality throughout post-production.

Full Resolution at Higher Frame Rates:

The URSA Mini Pro 12K offers multiple cameras in one, shooting in standard resolutions and frame rates from 4K to 12K. With options for shooting up to 60 fps in 12K and even higher frame rates in lower resolutions, the camera ensures smooth motion rendering and flexibility in capturing various scenes.

High Bandwidth Recording:

With dual built-in CFast and UHS-II SD card recorders, along with a SuperSpeed USB-C expansion port, the URSA Mini Pro 12K offers flexible recording options. Recording RAW to two cards simultaneously ensures redundancy and high-speed recording, even at high frame rates.

Easy to Use Blackmagic OS:

The intuitive Blackmagic OS offers smooth control over camera features, with simple tap and swipe gestures for adjusting settings and accessing menus. The OS powers on instantly, and the interface is consistent across Blackmagic Design cameras, ensuring ease of use on set.

Revolutionary Lightweight, Portable Design:

Designed for portability, the URSA Mini Pro features a lightweight magnesium alloy body with a logical layout of buttons, switches, and dials for easy access. The external backlit LCD status display provides critical information, while the fold-out touchscreen allows for reviewing shots and accessing menu settings.

Interchangeable Lens Mounts:

The URSA Mini Pro features an interchangeable lens mount, allowing quick switching between PL, EF, and F mount lenses. This compatibility with a wide range of professional lenses ensures flexibility in choosing the right lens for any project.

Built-in Precision ND Filters:

High-quality ND filters provide quick control over exposure, with 2, 4, and 6 stop options designed to match the camera's colorimetry and eliminate IR contamination. The precision mechanism ensures accurate filtration with settings displayed in various formats for ease of use.

USB-C for Direct Recording to External Disks:

The high-speed USB-C expansion port allows for direct recording to external flash disks and SSDs, offering increased recording times and flexibility. The option to record to external disks eliminates the need for file copying, streamlining the workflow.

High Resolution Monitoring and Camera Control:

The built-in 4-inch fold-out touchscreen offers a high-resolution color display for monitoring and reviewing shots on set. Critical information such as format, frame rate, and exposure settings is displayed, with options for adjusting settings and accessing camera functions.

Digital Slate for Fast Metadata Entry:

The digital slate feature allows for quick metadata entry, with options for automatically incrementing take numbers and reel numbers. Lens and production-specific information can be entered manually or automatically, ensuring consistency and efficiency in post-production.

Full Size, Durable Connections:

Multiple connections including 12G-SDI, XLR audio, timecode, and headphone connections offer compatibility with standard cables and accessories. The camera's design includes industry-standard power connectors and mounting points for easy integration with existing setups.

Wireless Bluetooth Camera Control:

Bluetooth connectivity allows for remote camera control from up to 30 feet away, offering flexibility in camera positioning. Third-party apps and developer SDKs provide options for customizing remote control solutions to suit specific needs.

Includes DaVinci Resolve Studio:

The URSA Mini Pro includes a full version of DaVinci Resolve Studio, offering professional editing, color correction, audio post, and visual effects in one software tool. With native editing support for Blackmagic RAW files, DaVinci Resolve Studio ensures the highest quality post-production workflow.

Included in the package:

• Blackmagic URSA Mini Pro 12K Body
• Turret dust cap
• PL lens mount
• Power supply
• DaVinci Resolve Studio activation key

Specifications:

Camera Features

Effective Sensor Size: Super35 (27.03mm x 14.25mm)

Lens Mount: PL mount included; interchangeable with optional EF and F lens mounts

Lens Control: 12-pin broadcast connector for compatible lenses; electronic control via EF mount pins on optional EF lens mount

Dynamic Range: 14 Stops

Shooting Resolutions:

12,288 x 6480 (12K DCI)

11,520 x 6480 (12K 16:9)

12,288 x 5112 (12K 2.4:1)

7680 x 6408 (12K Anamorphic)

8192 x 4320 (8K DCI)

7680 x 4320 (8K 16:9)

8192 x 3408 (8K 2.4:1)

5120 x 4272 (8K Anamorphic)

6144 x 3240 (6K Super16)

4096 x 2160 (4K Super16)

4096 x 2160 (4K DCI)

3840 x 2160 (4K 16:9)

4096 x 1704 (4K 2.4:1)

2560 x 2136 (4K Anamorphic)

Frame Rates: Maximum sensor frame rate dependent on resolution; supports project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps

High-Speed Frame Rates:

12K 17:9 full sensor up to 60 fps

8K DCI full sensor up to 110 fps

4K DCI full sensor up to 110 fps

8K 2.4:1 and 4K 2.4:1 up to 140 fps

6K Super 16 up to 120 fps

4K Super 16 up to 220 fps

Built-in ND Filters: Four-position ND filter wheel with clear, 2-stop, 4-stop, and 6-stop IR ND filters

Focus: Focus button for peaking; auto-focus available using compatible lenses

Iris Control: Iris wheel and touchscreen slider for manual iris adjustment; iris button for instant auto iris settings on compatible lenses

Screen Dimensions: 4 inch LCD capacitive touchscreen

Metadata Support: Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses

Connections

Total Video Inputs: 1 x 12G-SDI

Total Video Outputs: 1 x 12G-SDI, 1 x 3G-SDI Monitoring

Analog Audio Inputs: 2 x XLR analog switchable between mic, line, and AES audio; Phantom power support

Analog Audio Outputs: 1 x 3.5mm headphone jack

Reference Inputs: Tri-Sync/Black Burst/Timecode

Remote Control: 1 x 2.5mm LANC input for Rec Start/Stop, Iris, and Focus control

Computer Interface: 1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording; 1 x USB Type-C for software updates

Audio

Microphone: Integrated stereo microphone

Built-in Speaker: 1 x mono speaker

Standards

SD Video Standards: None

HD Video Standards: Various resolutions and frame rates

Ultra HD Video Standards: Various resolutions and frame rates

SDI Compliance: SMPTE standards

SDI Audio Sampling: 48 kHz and 24 bit

Media

Media: 2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port

Media Format: ExFAT (Windows/Mac) or HFS+ (Mac) file systems

Supported Codecs: Blackmagic RAW in various compression ratios and qualities

Control

External Control: Blackmagic SDI Camera Control Protocol, iPad control, Bluetooth control

Talkback and Tally: SDI Channels 15/16 and iPhone headset; Tally on LCD, URSA Viewfinder, and URSA Studio Viewfinder

Storage Features

Storage Type: CFast 2.0 cards, SD UHS-II cards, external media via USB-C port

Storage Rates: Dependent on resolution and compression

Recording Formats

Recording Formats: Blackmagic RAW in various qualities and resolutions

Software

Software Included: URSA Mini Operating System, DaVinci Resolve Studio, Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK, Blackmagic RAW Speed Test

Power Requirements

Power Supply: External 12V power supply; 12 pin Molex connector for rear battery plate

External Power Input: 4 pin XLR port; 12 pin Molex connector on rear battery plate

Accessories

Optional Accessories: Various accessories for mounting, viewfinders, recorders, batteries, etc.

Environmental Specifications

Operating Temperature: 0° to 40°C (32° to 104°F)

Storage Temperature: -20° to 45°C (-4° to 113°F)

Relative Humidity: 0% to 90% non-condensing
