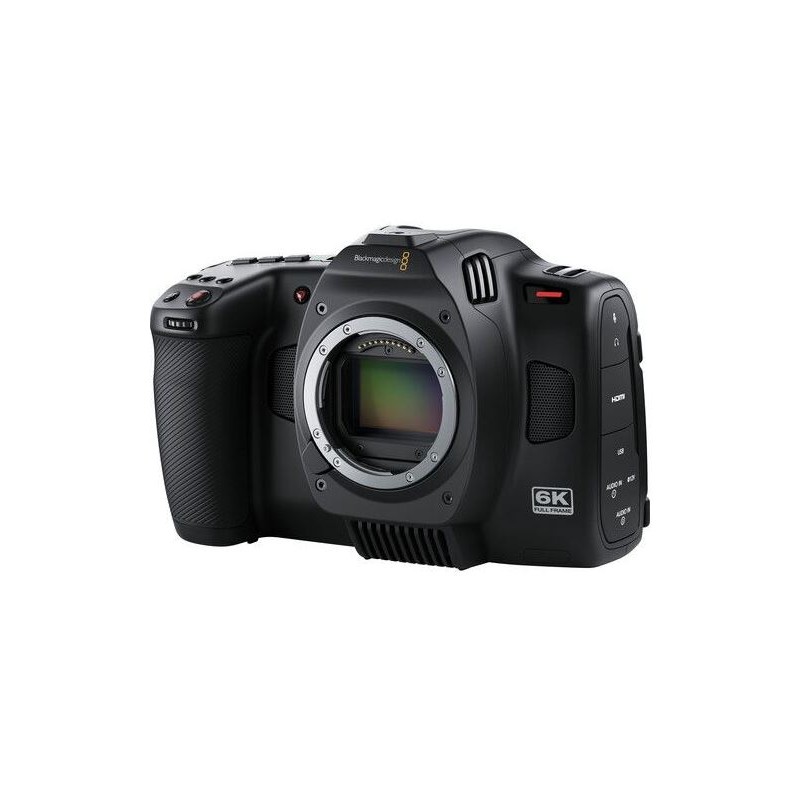

Blackmagic Design Cinema Camera 6K

Blackmagic Design introduces the Cinema Camera 6K, bringing cutting-edge digital film capture to a wider audience. Built around a full-frame 6K sensor and an active Leica L lens mount, this advanced camera delivers vibrant colors, precise skin tones, and an extensive 13-stop dynamic range. Equipped with a built-in OLPF filter tailored for the sizable 24 x 35mm sensor, the Cinema Camera 6K caters to ENG professionals and on-the-go shooters by enabling simultaneous recording of deep bit-depth Blackmagic Raw and H.264 proxies to Blackmagic Cloud. Despite its enhanced capabilities, the Cinema Camera 6K remains compatible with all existing Pocket Cinema Camera accessories.

Full-Frame 6K Sensor:

Boasting a sizable full-frame sensor with a native resolution of 6048 x 4032, the camera facilitates shooting with shallow depth of field and uncropped anamorphic lenses for a truly cinematic experience.

With 13 stops of dynamic range and dual native ISOs at 400 and 3200 (extending up to 25,600), the sensor ensures exceptional image quality in various lighting conditions.

Cinematic Full-Frame Flexibility:

The full-frame sensor allows for working with a range of film formats and aspect ratios without compromising quality.

Utilizing the entire sensor area enables capturing a unique open-gate 3:2 image, allowing for reframing in post-production.

True 6:5 anamorphic shooting without cropping is achievable, producing detailed widescreen images in higher resolutions.

The classic Super35-sized window on the sensor facilitates instant close-ups that seamlessly integrate with open gate footage.

Advanced Leica L Mount:

The Leica L lens mount accommodates the full-frame sensor while ensuring compatibility with both modern and vintage lenses.

Featuring a large diameter of 51.6mm, the L mount supports the latest full-frame lenses from leading manufacturers like Leica, Panasonic, and Sigma.

With a short flange distance of only 20mm, the mount allows for easy attachment of Canon EF, ARRI PL, and other adapters without compromising image quality.

The optional EF adapter enables lens control and data transfer for compatible lenses.

Multiple Resolutions and Frame Rates:

The Cinema Camera 6K captures standard resolutions and frame rates from HD up to DCI 4K and 6K, with still photo capabilities up to 24.6MP.

Video recording options include open-gate 3:2 at 36 fps, 2.4:1 at 60 fps, and DCI 4K at 60 fps, among others.

Higher frame rates are achievable with a windowed sensor, supporting rates up to 100 fps in Super16 format.

True anamorphic 6:5 shooting at higher resolutions is attainable using anamorphic lenses in 4.8K at 24 fps.

Post-Friendly File Formats:

High-resolution Blackmagic Raw recording grants control over detail, exposure, and color during post-production.

The camera can simultaneously record HD H.264 proxies in real-time for convenient media sharing.

Blackmagic Raw ensures optimized, multi-threaded performance with GPU acceleration, preserving image quality across various editing platforms.

5" LCD Touchscreen:

The bright HDR 5" touchscreen LCD facilitates framing, focusing, and applying 3D LUTs for monitoring.

Onscreen overlays provide essential information such as recording parameters, histograms, peaking, and frame guides.

Tilt functionality enhances visibility and accessibility, especially in challenging shooting conditions.

EFexpress or External Disk Recording | DaVinci Resolve Included:

Recording options include internal CFexpress card or external SSD via the USB-C port, supporting up to 12-bit full-resolution Blackmagic Raw.

CFexpress cards offer durability and high-speed recording, with a 256GB card capable of capturing over an hour of UHD 6K footage.

The included DaVinci Resolve software enables high-speed editing directly from CFexpress cards.

Gen 5 Color Science:

Leveraging the same generation 5 color science as the URSA Mini Pro 12K, the Cinema Camera 6K delivers superior image quality with accurate skin tones and faithful color reproduction.

A dynamic 12-bit gamma curve captures more color data in highlights and shadows, resulting in visually appealing images.

Gen 5 color science streamlines Blackmagic Raw image processing, ensuring natural, film-like responses to color adjustments in post-production.

Professional Connectors:

Despite its compact size, the camera features a range of professional interfaces, including a full-size HDMI video output, USB-C expansion, and 12VDC ports.

Built-In Mics and Pro Audio Inputs:

Professional audio support includes two mini-XLR inputs with phantom +48V power, enabling recording of two separate audio tracks.

Four built-in, shock- and wind-resistant microphones with a low noise floor deliver high-quality audio.

Additional audio features include a 3.5mm stereo input, playback speaker, and 3.5mm headphone output.

Bluetooth Camera Remote Control:

The camera offers full Bluetooth control from up to 30' away, ideal for remote setups or locations.

Compatible with the Blackmagic Camera Control app for iPad and third-party apps like Bluetooth+ or Trigger on iOS and Android devices.

Carbon Fiber Composite Build:

Constructed from lightweight carbon fiber polycarbonate composite, the Cinema Camera 6K features a multifunction handgrip with complete recording controls for ease of use.

DaVinci Resolve Studio License Included:

Included with the camera is a full version of DaVinci Resolve Studio software, offering comprehensive editing, color correction, audio post-production, and visual effects capabilities.

Horizontal or Vertical Capture:

Easily create cinematic vertical content for social media platforms like TikTok and YouTube Shorts.

The onscreen HUD display rotates to ensure critical information remains visible, with clips automatically tagged as vertical for seamless uploading.

Power Options:

The camera can be powered using Sony L-series type NP-F570 batteries, the included AC adapter with international plugs, or the separately available Battery Pro Grip.

Battery trickle-charging is available via the USB-C expansion port.

Included in the package are the following items:

• Blackmagic Design Cinema Camera 6K with Leica L lens mount
• Lens port cap for protection
• Camera strap for easy carrying
• Locking power supply with international adapters (30W)
• Sony L-Series Type NP-F570 battery
• L-Series battery USB charger
• DaVinci Resolve Studio activation key

Specification

Imaging

Lens Mount: Leica L

Lens Communication: Yes, with Autofocus Support

Sensor Resolution: Effective: 24.6 Megapixels

Image Sensor: 36 x 24 mm (Full-Frame) CMOS

Image Stabilization: None

Built-In ND Filter: None

Internal Filter Holder: No

Capture Type: Stills & Video

Exposure Control

Shutter Type: Electronic Rolling Shutter

ISO Sensitivity: 400 to 3200 (Extended: 100 to 25,600)

Advertised Dynamic Range: 13 Stops

Video Capture

Internal Recording Modes:

Blackmagic RAW 12-Bit

6048 x 4032

6048 x 3200 up to 48.00 fps

6048 x 2520 up to 60.00 fps

4096 x 3072 up to 50 fps

DCI 4K (4096 x 2160) up to 60.00 fps

1920 x 1080 up to 120 fps

H.264

6048 x 4032

6048 x 3200 up to 48.00 fps

6048 x 2520 up to 60.00 fps

4096 x 3072 up to 50 fps

DCI 4K (4096 x 2160) up to 60.00 fps

1920 x 1080 up to 120 fps

External Recording Modes: None

Fast-/Slow-Motion Support: Yes

Broadcast Output: NTSC/PAL

Built-In Microphone Type: Stereo

IP Streaming: None

Still Image Capture

Image Sizes: 3:2 Raw (24.6 MP)

Interface

Media/Memory Card Slot: Slot 1: CFexpress Type B

Video I/O: 1 x HDMI (Unspecified Signal) Output

Audio I/O:

2 x Mini XLR Mic/Line (+48 V Phantom Power) Input

1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

1 x 1/8" / 3.5 mm TRS Stereo Headphone Output

Power I/O: 1 x Proprietary (12 to 20VDC) Input

Other I/O: 1 x USB-C (USB 3.2 / 3.1 Gen 1) Control/Video Input/Output

Wireless: Bluetooth Control

Mobile App Compatible: Yes (iOS Only)

App Name: BlackMagic Camera Control

Functionality: Adjust Settings, Remote Control

*As of September, 2023: Check with manufacturer for the most up-to-date compatibility

Global Positioning (GPS, GLONASS, etc.): None

Monitor

Display Size: 5"

Resolution: 1920 x 1080

Display Type: Tilting Touchscreen LCD

Type: Optional, Not Included

Focus

Focus Type: Auto and Manual Focus

Environmental

Operating Temperature: 32 to 104°F / 0 to 40°C

Storage Temperature: -4 to 113°F / -20 to 45°C

Operating Humidity: 0 to 90%

General

Battery Type: Sony L-Series

Power Consumption: 30 W

Shoe Mount: None

Accessory Mounting Thread: None

Material of Construction: Carbon Fiber, Polycarbonate

Dimensions (W x H x D): 7.08 x 3.7 x 4.8" / 17.98 x 9.4 x 12.2 cm

Weight: 2.65 lb / 1.20 kg
