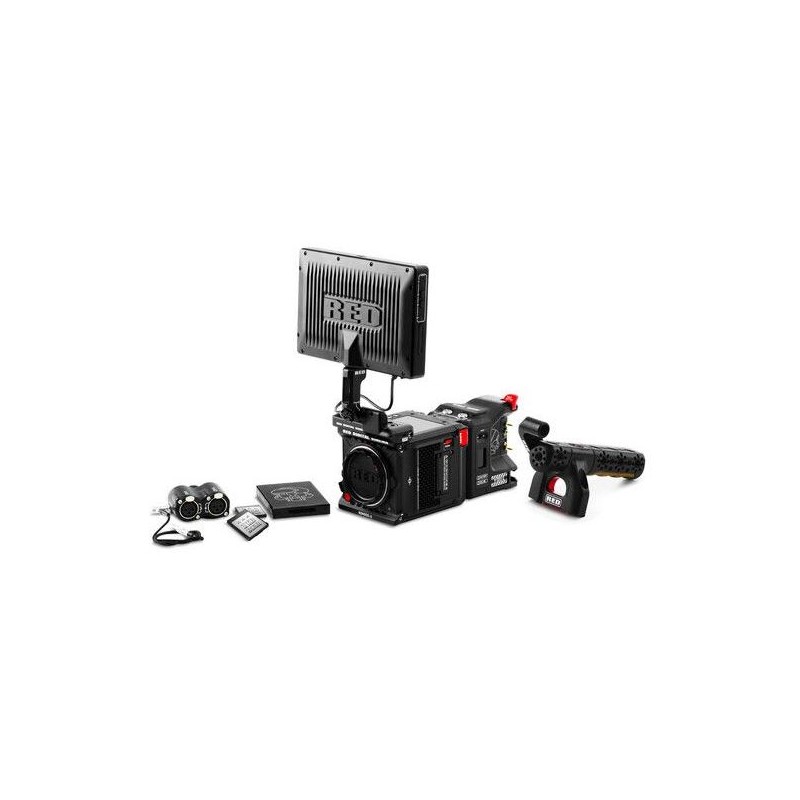

RED KOMODO-X Production Pack (Gold Mount)

The KOMODO-X 6K Camera Production Pack from RED DIGITAL CINEMA combines the compact Super35 KOMODO-X 6K camera with essential accessories, including media and a RED Pro Gold Mount I/O Module, catering to users equipped with their own Gold mount batteries. Here's a breakdown of each item included in this pack:

Super35 KOMODO-X 6K Camera:

Capable of shooting Full-Frame 6K at up to 80 fps and 4K at up to 120 fps

Features a reinforced, locking Canon RF lens mount for secure attachment

RED Pro Gold Mount I/O Module:

Facilitates seamless integration with Gold mount batteries for extended power options

DSMC3 RED Touch 7.0" LCD:

High-quality 7.0-inch LCD monitor for precise framing and shot monitoring

2 x RED PRO CFexpress 1TB Cards:

Two 1TB CFexpress memory cards for ample storage capacity

Compact R/S Top Handle:

Ergonomic top handle for convenient camera handling and transportation

CFexpress Card Reader:

Enables fast and efficient data transfer from CFexpress cards to a computer

5-Pin to 3.5mm Audio Cable:

Adapter cable for connecting audio devices to the camera

Package includes:

• RED DIGITAL CINEMA KOMODO-X 6K Camera Production Pack (Gold Mount)
• RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (Canon RF, Black)
• 2 x RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
• RED DIGITAL CINEMA CFexpress Card Reader
• RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount)
• RED DIGITAL CINEMA Compact Top Handle for KOMODO-X or V-RAPTOR/XL
• RED DIGITAL CINEMA DSMC3 RED 5-Pin LEMO to 3.5mm Female Audio Adapter (11.3")
• RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X & V-RAPTOR (Gold Mount)

Specification:

Imaging

Lens Mount: Canon RF

Lens Communication: Yes, with Autofocus Support

Sensor Resolution: Effective: 19.9 Megapixels (6144 x 3240)

Image Sensor: 27.03 x 14.26 mm (Super35) CMOS

Image Stabilization: None

Built-In ND Filter: None

Capture Type: Stills & Video

Exposure Control

Shutter Type: Electronic Global Shutter

Advertised Dynamic Range: 16.5 Stops

Video Capture

Internal Recording Modes:

ProRes 4444XQ 4:4:4: 4096 x 2160 up to 60.00 fps [560 MB/s]

ProRes 4444 4:4:4: 4096 x 2160 up to 80 fps [560 MB/s]

ProRes 422/ProRes 422 HQ/ProRes 422LT: 4096 x 2160 up to 120 fps [560 MB/s]

REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ: 6144 x 3240 up to 80 fps [560 Mb/s], 5120 x 2700 up to 96 fps [560 Mb/s], 4096 x 2160 up to 120 fps [560 Mb/s], 2048 x 1080 up to 240 fps [560 Mb/s]

External Recording Modes: 4:2:2 via SDI/BNC, DCI 4K (4096 x 2160) up to 60.00 fps, DCI 2K (2048 x 1080p) up to 60.00 fps

Fast-/Slow-Motion Support: Yes

Built-In Microphone Type: Stereo

Audio Recording: 2-Channel 24-Bit 48 kHz

IP Streaming: MJPEG, 1920 x 1080 (5000.00 Mb/s)

Interface

Media/Memory Card Slot: Single Slot: CFexpress Type B (CFexpress 2.0)

Video I/O: 1 x BNC (12G-SDI) Output

Audio I/O: 1 x LEMO 5-Pin Line Input on Camera Body

Power I/O: 1 x LEMO 6-Pin (11 to 17VDC) Input

Other I/O: 1 x 9-Pin (Genlock, GPI, Timecode), 1 x USB-C (Camera Interface) Control/Data/Video Input/Output, 1 x RED Cable-Free Monitor Connection Output

Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control

Mobile App Compatible: Yes: Android & iOS, App Name: RED Control, Functionality: Remote Control

Global Positioning: None

Monitor

Size: 2.9"

Resolution: 1440 x 1440

Display Type: Fixed Touchscreen LCD

Viewfinder: Optional, Not Included

Focus

Focus Type: Auto and Manual Focus

Focus Mode: Automatic, Manual Focus

Environmental

Operating Temperature: 32 to 104°F / 0 to 40°C

Storage Temperature: -4 to 122°F / -20 to 50°C

Storage Humidity: 0 to 85% (Non-Condensing)

General

Battery Type: Gold Mount

Tripod Mounting Thread: 1/4"-20 Female (Bottom), 3/8"-16 Female (Bottom)

Accessory Mount: 4 x 1/4"-20 Female, 4 x M4

Material of Construction: Aluminum

Dimensions (W x H x D): 5.09 x 3.99 x 3.75" / 129.37 x 101.26 x 95.26 mm

Weight: 2.62 lb / 1.19 kg (Body Only)

Packaging Info

Package Weight: 7.165 lb

Box Dimensions (LxWxH): 13.2 x 9.8 x 6"
