RED KOMODO-X Production Pack (V-Lock)
zoom_out_map
chevron_left chevron_right

RED KOMODO-X Production Pack (V-Lock)

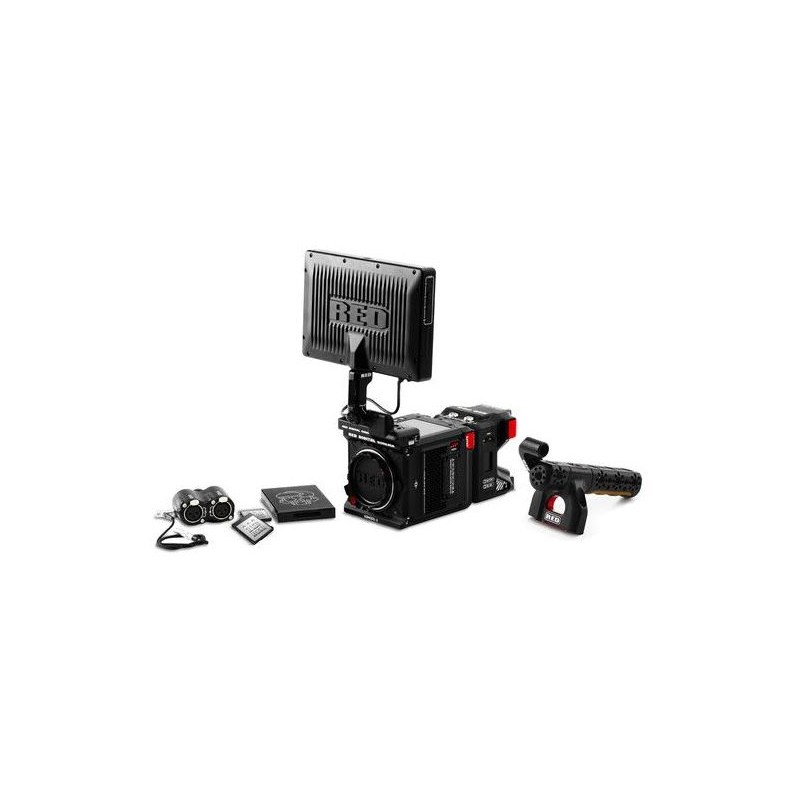

The RED DIGITAL CINEMA KOMODO-X 6K Camera Production Pack combines the compact Super35 KOMODO-X 6K camera with essential accessories, including media and a RED Pro V-Mount I/O Module, catering to users equipped with V-mount batteries. SKU 710-0388

19671.35 $
Tax included

15992.97 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The RED DIGITAL CINEMA KOMODO-X 6K Camera Production Pack combines the compact Super35 KOMODO-X 6K camera with essential accessories, including media and a RED Pro V-Mount I/O Module, catering to users equipped with V-mount batteries.

Super35 KOMODO-X 6K Camera:

Captures Full-Frame 6K at up to 80 fps and 4K at up to 120 fps

Features a reinforced, locking Canon RF Lens Mount

Includes the RED Pro V-Mount I/O Module for expanded connectivity

Equipped with a DSMC3 RED Touch 7.0" LCD for intuitive control

Comes with 2 RED PRO CFexpress 1TB Cards for ample storage

Includes a Compact R/S Top Handle, CFexpress Card Reader, and 5-Pin to 3.5mm Audio Cable



Package Contents:

  • RED DIGITAL CINEMA KOMODO-X 6K Camera Production Pack (V-Mount)
  • RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (Canon RF, Black)
  • 2 x RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
  • RED DIGITAL CINEMA CFexpress Card Reader
  • RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount)
  • RED DIGITAL CINEMA Compact Top Handle for KOMODO-X or V-RAPTOR/XL
  • RED DIGITAL CINEMA DSMC3 RED 5-Pin LEMO to 3.5mm Female Audio Adapter (11.3")
  • RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount)



Specification

Imaging

Lens Mount: Canon RF

Lens Communication: Yes, with Autofocus Support

Sensor Resolution: Effective: 19.9 Megapixels (6144 x 3240)

Image Sensor: 27.03 x 14.26 mm (Super35) CMOS

Image Stabilization: None

Built-In ND Filter: None

Capture Type: Stills & Video

Exposure Control

Shutter Type: Electronic Global Shutter

Advertised Dynamic Range: 16.5 Stops

Video Capture

Internal Recording Modes:

ProRes 4444XQ 4:4:4

4096 x 2160 up to 60.00 fps [560 MB/s]

ProRes 4444 4:4:4

4096 x 2160 up to 80 fps [560 MB/s]

ProRes 422/ProRes 422 HQ/ProRes 422LT

4096 x 2160 up to 120 fps [560 MB/s]

REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ

6144 x 3240 up to 80 fps [560 Mb/s]

5120 x 2700 up to 96 fps [560 Mb/s]

4096 x 2160 up to 120 fps [560 Mb/s]

2048 x 1080 up to 240 fps [560 Mb/s]

External Recording Modes: 4:2:2 via SDI/BNC

DCI 4K (4096 x 2160) up to 60.00 fps

DCI 2K (2048 x 1080p) up to 60.00 fps

Fast-/Slow-Motion Support: Yes

Built-In Microphone Type: Stereo

Audio Recording: 2-Channel 24-Bit 48 kHz

IP Streaming: MJPEG 1920 x 1080 (5000.00 Mb/s)

Interface

Media/Memory Card Slot: Single Slot: CFexpress Type B (CFexpress 2.0)

Video I/O: 1 x BNC (12G-SDI) Output

Audio I/O: 1 x LEMO 5-Pin Line Input on Camera Body

Power I/O: 1 x LEMO 6-Pin (11 to 17VDC) Input

Other I/O:

1 x 9-Pin (Genlock, GPI, Timecode)

1 x USB-C (Camera Interface) Control/Data/Video Input/Output

1 x RED Cable-Free Monitor Connection Output

Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control

Mobile App Compatible: Yes: Android & iOS

App Name: RED Control

Functionality: Remote Control

As of January, 2023: Check with manufacturer for the most up-to-date compatibility

Global Positioning (GPS, GLONASS, etc.): None

Monitor

Size: 2.9"

Resolution: 1440 x 1440

Display Type: Fixed Touchscreen LCD

Viewfinder

Type: Optional, Not Included

Focus

Focus Type: Auto and Manual Focus

Focus Mode: Automatic, Manual Focus

Environmental

Operating Temperature: 32 to 104°F / 0 to 40°C

Storage Temperature: -4 to 122°F / -20 to 50°C

Storage Humidity: 0 to 85% (Non-Condensing)

General

Battery Type: V-Mount

Tripod Mounting Thread: 1/4"-20 Female (Bottom), 3/8"-16 Female (Bottom)

Accessory Mount: 4 x 1/4"-20 Female, 4 x M4

Material of Construction: Aluminum

Dimensions (W x H x D): 5.09 x 3.99 x 3.75" / 129.37 x 101.26 x 95.26 mm

Weight: 2.62 lb / 1.19 kg (Body Only)

Packaging Info

Package Weight: 7.165 lb

Box Dimensions (LxWxH): 13.2 x 9.8 x 6"
