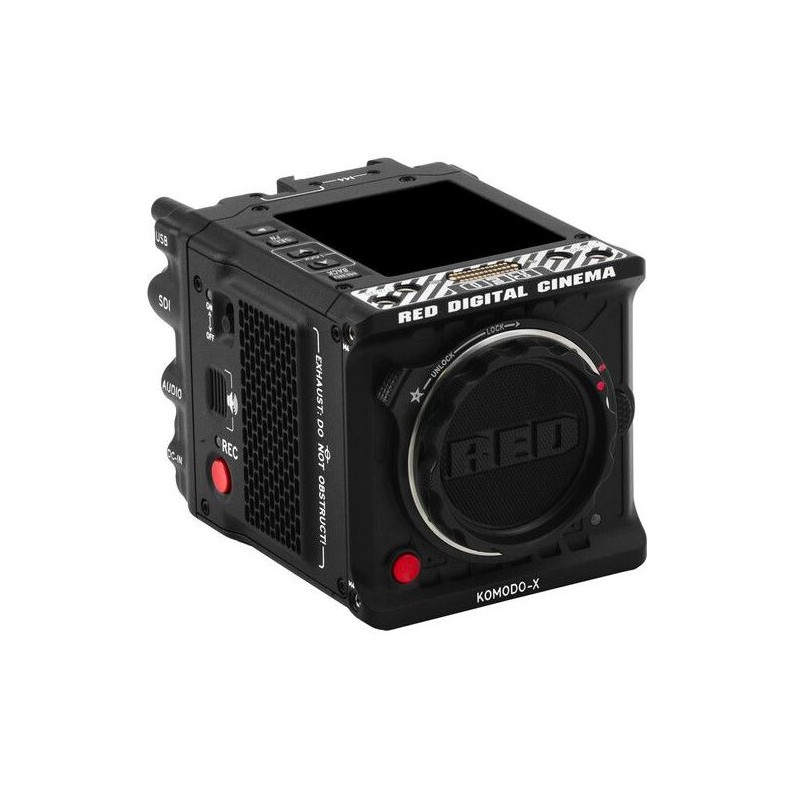

RED KOMODO-X

RED advances its KOMODO line with the introduction of the black KOMODO-X 6K, a digital cinema camera designed to elevate professional filmmaking with its enhanced features. Boasting faster frame rates, a redesigned S35 sensor, and updated interfaces, the KOMODO-X empowers filmmakers with versatile capabilities.

Next-Gen KOMODO Sensor:

Despite maintaining the same size as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X sensor has undergone a ground-up redesign. This overhaul results in significant architectural improvements, delivering superior image quality, enhanced shadow detail, and vibrant colors. Users can capture footage at frame rates of up to 80 fps in 6K and up to 120p in 4K.

Compact KOMODO Form:

The KOMODO-X 6K camera seamlessly blends select DSMC3 features with the compact KOMODO design. It accommodates the upcoming PRO I/O Module for auxiliary power and supports full-size Gold and V-mount batteries. Additionally, it features a built-in micro plate, allowing for the direct mounting of Micro V-mount batteries without requiring an adapter. The camera also incorporates a full-size, 6-pin 11-17VDC power input.

Canon RF Mount:

Equipped with a reinforced, locking Canon RF lens mount, the KOMODO-X offers RED's toolless lens-mount feature, ensuring compatibility with a wide array of lenses. For ARRI PL-mount lenses, users can utilize the KOMODO-X with the RED RF to PL adapter, which includes an electronic ND filter.

Integrated LCD:

The KOMODO-X features an integrated 2.9" LCD, facilitating image preview and simplified control in tight shooting environments. For more precise monitoring and full control, users can pair the camera with the daylight-viewable, high-resolution DSMC3 7" Touch LCD, eliminating cable clutter.

Live Streaming and Expanded In/Out:

The KOMODO-X boasts expanded interface options, including 12G-SDI video output up to 4K60p and a USB-C port with Ethernet offload capabilities. With built-in Wi-Fi, users can engage in 1080p IP live streaming for web applications and in-app monitoring.

CFexpress Type B:

Featuring a single media slot compatible with CFexpress Type B cards, the KOMODO-X enables high-capacity, fast data recording. Users can record up to 17 hours using a 4TB CFexpress Type B card and offload data up to 3x faster than CFast media.

Advanced Connectivity:

The KOMODO-X excels in streamlined IP workflows, offering USB-C interface and integrated Wi-Fi functionality. With the RED Control or Control Pro apps, users gain remote camera control, FTP media off-loading, and in-camera Cloud uploading capabilities. Additionally, by adding a RED Connect license, users can broadcast up to 6K live images over IP directly from the camera.

Audio Interface:

Enhanced audio options include a locking, phantom-powered 5-pin connector compatible with 3.5mm adapters and KOMODO microphones, as well as dual XLR adapters for a wide range of microphones.

Package Includes:

• RED KOMODO-X

Specifications

Imaging

Lens Mount: Canon RF

Lens Communication: Yes, with Autofocus Support

Sensor Resolution: Effective: 19.9 Megapixels (6144 x 3240)

Image Sensor: 27.03 x 14.26 mm (Super35) CMOS

Image Stabilization: None

Built-In ND Filter: None

Capture Type: Stills & Video

Exposure Control

Shutter Type: Electronic Global Shutter

Advertised Dynamic Range: 16.5 Stops

Video Capture

Internal Recording Modes:

ProRes 4444XQ 4:4:4: 4096 x 2160 up to 60.00 fps [560 MB/s]

ProRes 4444 4:4:4: 4096 x 2160 up to 80 fps [560 MB/s]

ProRes 422/ProRes 422 HQ/ProRes 422LT: 4096 x 2160 up to 120 fps [560 MB/s]

REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ:

6144 x 3240 up to 80 fps [560 Mb/s]

5120 x 2700 up to 96 fps [560 Mb/s]

4096 x 2160 up to 120 fps [560 Mb/s]

2048 x 1080 up to 240 fps [560 Mb/s]

External Recording Modes

4:2:2 via SDI/BNC:

DCI 4K (4096 x 2160) up to 60.00 fps

DCI 2K (2048 x 1080p) up to 60.00 fps

Fast-/Slow-Motion Support: Yes

Built-In Microphone Type: Stereo

Audio Recording: 2-Channel 24-Bit 48 kHz

IP Streaming

MJPEG: 1920 x 1080 (5000.00 Mb/s)

Interface

Media/Memory Card Slot: Single Slot: CFexpress Type B (CFexpress 2.0)

Video I/O: 1 x BNC (12G-SDI) Output

Audio I/O: 1 x LEMO 5-Pin Line Input on Camera Body

Power I/O: 1 x LEMO 6-Pin (11 to 17VDC) Input

Other I/O:

1 x 9-Pin (Genlock, GPI, Timecode)

1 x USB-C (Camera Interface) Control/Data/Video Input/Output

1 x RED Cable-Free Monitor Connection Output

Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control

Mobile App Compatible: Yes: Android & iOS

App Name: RED Control

Functionality: Remote Control

As of January 2023: Check with the manufacturer for the most up-to-date compatibility

Global Positioning (GPS, GLONASS, etc.) None

Monitor

Size: 2.9"

Resolution: 1440 x 1440

Display Type: Fixed Touchscreen LCD

Viewfinder

Type: Optional, Not Included

Focus

Focus Type: Auto and Manual Focus

Focus Mode: Automatic, Manual Focus

Environmental

Operating Temperature: 32 to 104°F / 0 to 40°C

Storage Temperature: -4 to 122°F / -20 to 50°C

Storage Humidity: 0 to 85% (Non-Condensing)

General

Battery Type: V-Mount

Tripod Mounting Thread:

1/4"-20 Female (Bottom)

3/8"-16 Female (Bottom)

Accessory Mount:

4 x 1/4"-20 Female

4 x M4

Material of Construction: Aluminum

Dimensions (W x H x D): 5.09 x 3.99 x 3.75" / 129.37 x 101.26 x 95.26 mm

Weight: 2.62 lb / 1.19 kg (Body Only)

Packaging Info

Package Weight: 7.165 lb

Box Dimensions (LxWxH): 13.2 x 9.8 x 6"
