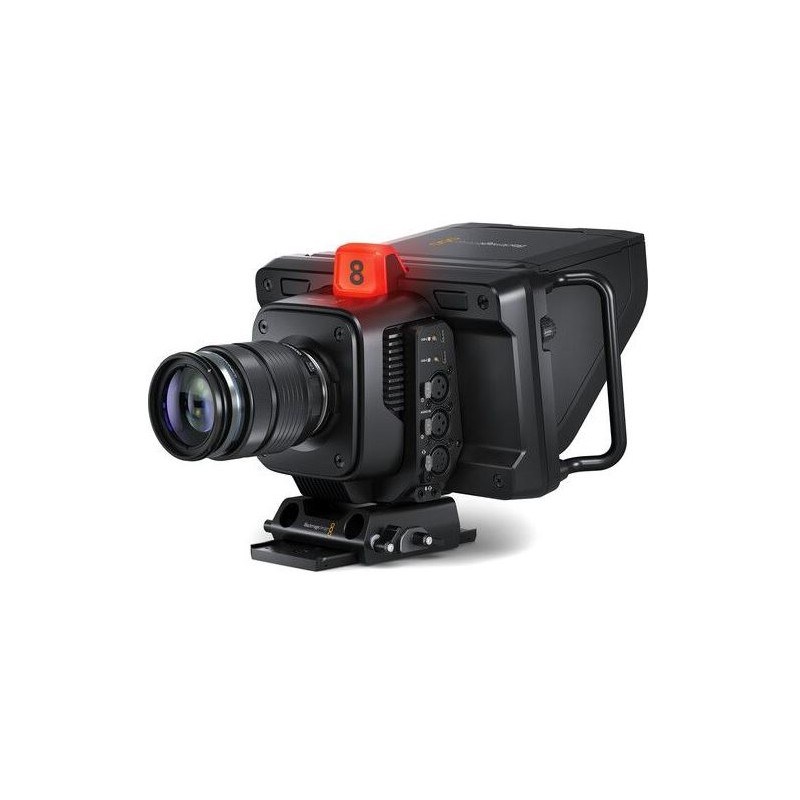

Blackmagic Design Studio Camera 4K Pro G2

The Blackmagic Design Studio Camera 4K Pro G2 is meticulously crafted to seamlessly integrate with high-performance SDI video switchers. Now equipped with live streaming capabilities and professional-grade connections such as 12G-SDI and 10GbE Ethernet, this camera delivers unparalleled versatility. Utilize the Ethernet connection to establish a cost-effective SMPTE-style workflow, benefiting from a single-cable setup with PoE (Power over Ethernet). Additionally, the 12G-SDI output and program return functionalities provide essential camera control, talkback, and tally functions for a comprehensive live production experience. Retaining the hallmark features of its predecessor, this latest 4K Pro model boasts a 7" touchscreen monitor, HDMI output, Blackmagic RAW recording, HDR support, XLR audio inputs, and a Micro Four Thirds lens mount.

Compact and Lightweight Design:

Packing the capabilities of a large studio camera into a compact form factor, the Blackmagic Studio Camera 4K Pro G2 epitomizes portability without compromise. Constructed with a lightweight carbon fiber reinforced polycarbonate body, this camera seamlessly blends innovative technology with a miniaturized design. Engineered for live production environments, it facilitates effortless shot tracking and framing through its expansive 7" viewfinder. Control options abound, whether through your switcher/software or via intuitive touchscreen menus and dedicated knobs for brightness, contrast, and focus peaking. The included tripod mount with 15mm LWS rod ports and mounting plate expedites setup, ensuring optimal efficiency.

Robust Broadcast Connections:

Featuring 12G-SDI, 10GbE Ethernet, talkback functionality, and balanced XLR audio inputs, the Blackmagic Studio Camera 4K Pro G2 is tailor-made for robust SDI switcher workflows. Its versatile interfaces, catering to both broadcast and consumer components, encompass HDMI with tally, camera control, record trigger, and comprehensive audio connectivity, including dual XLR ports and two USB Type-C expansion ports. The 10G Ethernet capability streamlines setup, consolidating video, tally, talkback, and camera power transmission over a single connection, optimizing both speed and affordability.

Global Live Streaming Capability:

Equipped with built-in live streaming functionality, the Blackmagic Studio Camera 4K Pro G2 empowers users to deploy it as a remote camera anywhere across the globe. Delivering an H.264 live stream over the internet back to your studio, it facilitates seamless integration into remote production setups. For added redundancy, the camera supports Ethernet backup via connection to a 4G or 5G smartphone through one of its USB-C ports. The live stream is seamlessly converted back to video at the studio end by an ATEM Streaming Bridge, which also extends support for tally, talkback, and camera control functionalities.

Exceptional Low-Light Performance:

Distinguished by its remarkable low-light performance, the Blackmagic Studio Camera 4K Pro G2 offers gain settings ranging from -12 dB (100 ISO) to +36 dB (25,600 ISO). Optimized to minimize grain and noise while preserving the full dynamic range of the sensor, this camera features a primary native ISO of 400, ideal for studio lighting conditions, and a secondary high-base ISO of 3200 for dimly lit environments. Gain adjustments can be made directly from the camera or remotely via a switcher using SDI or Ethernet remote camera control, ensuring optimal adaptability to diverse shooting scenarios.

Cinematic Imagery for Live Production:

Harnessing the power of its 4K sensor and Blackmagic Generation 5 color science, the Blackmagic Studio Camera 4K Pro G2 delivers cinematic imagery synonymous with digital film cameras. Combined with the built-in DaVinci Resolve primary color corrector, this camera elevates live production visuals to new heights, surpassing the capabilities of conventional broadcast cameras. Offering 13 stops of dynamic range, it delivers deeper blacks and brighter whites, facilitating seamless color correction. With a resolution of 4096 x 2160, it caters to both HD and Ultra HD workflows, supporting frame rates from 23.98 up to 60 fps.

Affordable Compatibility with Photographic Lenses:

Featuring a Micro Four Thirds lens mount, the Studio Camera 4K Pro G2 seamlessly integrates with a wide array of affordable photographic lenses. Leveraging the exceptional quality inherent in photographic lenses designed for high-resolution photography, this camera offers unparalleled versatility. The active lens mount enables remote adjustment of compatible lenses, while optional focus and zoom demands allow for precise control directly from tripod handles, akin to larger studio cameras. This innovative design minimizes camera shake during adjustments, ensuring smooth operation without compromising stability.

Intuitive 7" Viewfinder for Framing Shots:

The inclusion of a large 7" high-resolution screen transforms the shooting experience with the Blackmagic Studio Camera 4K Pro G2, making framing shots a breeze. Enhanced with HDR display technology, the viewfinder delivers exceptional brightness, ideal for outdoor use in sunlight-drenched environments. On-screen overlays provide critical status and recording parameters, alongside features such as histograms, focus peaking indicators, levels, and frame guides. Customizable 3D LUTs further enhance monitoring capabilities, enabling precise color and look adjustments tailored to specific requirements.

Physical and Touchscreen Controls:

Blending physical buttons, knobs, and touchscreen controls, the Blackmagic Studio Camera 4K Pro G2 offers intuitive operation tailored to individual preferences. Dedicated knobs for brightness, contrast, and focus peaking facilitate fine-tuning of key parameters, ensuring optimal image quality. Programmable buttons on the camera's left side enable quick access to essential functions such as zebra, false color, focus peaking, and LUTs. Meanwhile, the touchscreen interface provides a comprehensive heads-up display featuring vital shooting information and intuitive access to camera settings, LUTs, and custom presets.

Efficient Director Communication with Talkback:

Incorporating SDI connections with talkback functionality, the Blackmagic Studio Camera 4K Pro G2 facilitates seamless communication between the switcher operator and camera operators during live events. This capability enables directors to provide real-time guidance to camera operators, optimizing shot selection and minimizing redundancy. The built-in talkback connector supports standard 5-pin XLR broadcast headsets, utilizing audio channels 15 and 16 in the SDI connection for bidirectional communication. This ensures streamlined coordination between the production team, enhancing overall efficiency and professionalism.

Versatile Connectivity Options:

Offering flexible connectivity options, Blackmagic Studio Cameras support various configurations to suit diverse production setups. All models feature HDMI connectivity, ideal for integration with HDMI switchers such as the ATEM Mini. The inclusion of 12G-SDI enables seamless integration with SDI-based switchers like the ATEM Constellation, facilitating camera output video and program return functionalities. Alternatively, the 10G Ethernet capability enables comprehensive transmission of video, tally, talkback, camera control, and power over a standard Cat 6a Ethernet cable, providing a cost-effective alternative to traditional SMPTE fiber workflows.

Built-In Tally for On-Air Status:

Equipped with a large tally light, Blackmagic Studio Cameras offer visual indicators for on-air, preview, and ISO recording status. This feature enhances operational clarity, enabling talent to easily discern camera statuses from a distance of up to 20 feet.

Package Contents:

• Blackmagic Design Studio Camera 4K G2
• Sun Hood
• Turret Dust Cap
• Universal Power Supply with International Socket Adapters
• 15mm LWS Tripod Mount
• Tally Decal Set
• DaVinci Resolve 18 Free Download

Specifications:

Imaging

Sensor Resolution: Not Specified by Manufacturer

ISO Sensitivity: 100 to 25,600

Gain: 0 to 18 dB

Sensitivity:

f/11 at 2000 lux 89.9% Reflectance (UHD 4K60)

f/12 at 2000 lux 89.9% Reflectance (UHD 4K60)

Signal-to-Noise Ratio: 63 dB

Camera

Lens Mount: Micro Four Thirds

Shutter Speed: 1/5000 to 1/24 Second

Built-In ND Filter: None

Built-In Microphone Type: Stereo

Broadcast System Compatibility: NTSC, PAL

Interfaces

CCU I/O: None

Video I/O:

1 x BNC (12G-SDI) Input

1 x BNC (12G-SDI) Output

1 x HDMI Output

Audio I/O:

2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body

1 x 1/8" / 3.5 mm TRS Stereo Microphone Input

1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output

1 x XLR 5-Pin Intercom Input/Output

Other I/O:

1 x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output

2 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output

Recording

Raw Recording: Blackmagic RAW 10-Bit

3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]

Audio Recording: ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio

Display

Display Type: Fixed Touchscreen LCD

Size: 7"

Resolution: 1920 x 1200

Power

Power I/O:

1 x XLR 4-Pin (12VDC) Input

1 x Barrel (12VDC) Input

Power Consumption: 46 W

Environmental

Operating Temperature: 32 to 104°F / 0 to 40°C

Storage Temperature: -4 to 113°F / -20 to 45°C

Operating Humidity: 0 to 90%

General

Accessory Mount: 2 x 1/4"-20 Female

Tripod Mount: 3/8"-16 Female

Dimensions (W x H x D): 10.77 x 6.68 x 6.59" / 27.36 x 16.97 x 16.74 cm (Without Protrusions)

Weight: 3.71 lb / 1.68 kg

Packaging Information

Package Weight: 7.59 lb

Box Dimensions (LxWxH): 12.2 x 10.2 x 8.3"
