RED V-RAPTOR 8K S35 Starter Pack

Begin your journey into capturing stunning Super35 footage with the V-RAPTOR 8K S35 Starter Pack from RED DIGITAL CINEMA. This comprehensive bundle pairs the V-RAPTOR 8K S35 camera with essential accessories, including a high-capacity 2TB PRO CFexpress 2.0 memory card. Let's explore the key components included in this pack:

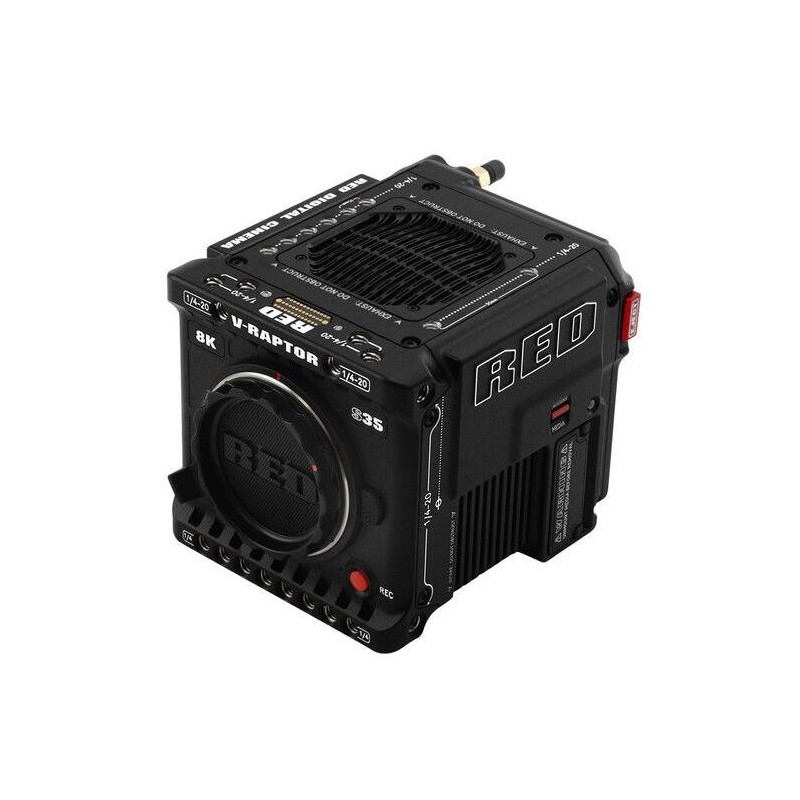

V-RAPTOR 8K S35 Camera (Canon RF):

Featuring a Super35 35.4MP CMOS sensor, the V-RAPTOR 8K S35 offers 16.5+ stops of dynamic range for exceptional image quality.

Capture resolutions up to 8K with frame rates of up to 120 fps, along with various recording options including REDCODE Raw and Apple ProRes.

The active RF lens mount supports a wide range of lenses, including EF lenses via adapters, with autofocus capabilities for select lenses.

RED 2TB PRO CFexpress 2.0 Type B Memory Card:

Certified for RED V-RAPTOR systems, this 2TB memory card ensures reliable high-bitrate capture with maximum read/write speeds of 800 MB/s.

Designed for durability and protection against shock, dust, water, and temperature extremes, offering peace of mind during demanding shoots.

CFexpress Card Reader:

Quickly ingest data from the RED PRO CFexpress card using this reader, compatible with systems supporting USB 3.2 Gen 2x2 for fast transfers.

REDVOLT MICRO-V Battery (98Wh, V-Mount) & Compact Dual Battery Charger:

Power your V-RAPTOR camera with the included MICRO-V battery and charge two V-mount batteries simultaneously using the compact dual charger, perfect for on-location shoots.

DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount):

Mount this 7.0" LCD monitor directly onto your DSMC3 camera rig for daylight viewing and touchscreen control, offering high-resolution imaging with a wide color gamut.

EXT-to-Timecode Cable (3') & V-RAPTOR Wing Grip:

Use the EXT-to-Timecode cable to input timecode to your camera, while the V-RAPTOR Wing Grip provides a low-profile, ergonomic handheld support option with multiple accessory mounts.

With this V-RAPTOR 8K S35 Starter Pack, you'll have everything you need to embark on your filmmaking journey with confidence and creativity.

Included in the package are:

• RED DIGITAL CINEMA V-RAPTOR 8K S35 Camera (Canon RF)
• DSMC AC Power Adapter (150W)
• Mini World Travel Adapter Kit
• RED Logo Sticker
• RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card
• Lifetime Data Protection
• RED DIGITAL CINEMA CFexpress Card Reader
• USB Type-C 3.2 Cable
• USB Type-A to Type-C Adapter
• 2 x RED DIGITAL CINEMA REDVOLT MICRO-V Battery (98Wh, V-Mount)
• RED DIGITAL CINEMA Compact Dual Battery Charger (V-Mount)
• Power Cable
• RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount)
• Arm
• DSMC3 RMI Cable
• RED DIGITAL CINEMA EXT-to-Timecode Cable (3')
• 2 x RED DIGITAL CINEMA V-RAPTOR Wing Grip

Camera Specifications:

Lens Mount: Canon RF

Lens Communication: Yes, with Autofocus Support

Sensor Resolution: Effective: 35.4 Megapixel (8192 x 4320)

Sensor Type: 26.21 x 13.82 mm (Super35) CMOS

Image Stabilization: None

Built-In ND Filter: None

Internal Filter Holder: No

Capture Type: Stills & Video

Exposure Control:

Shutter Type: Electronic Rolling Shutter

Advertised Dynamic Range: 16.5 Stops

Video Capture:

Internal Recording Modes: REDCODE HQ

8192 x 4320 up to 60.00 fps

6144 x 3240 up to 96 fps

4096 x 2160 up to 240 fps

2048 x 1080 up to 480 fps

Sensor Crop While Recording: Detailed options for various resolutions and aspect ratios

Fast-/Slow-Motion Support: Yes

Gamma Curve: RED IPP2

Built-In Microphone Type: Mono

Audio Recording: 2-Channel 24-Bit 48 kHz

IP Streaming: None

Interface:

Media/Memory Card Slot: Single Slot: CFexpress Type B (CFast 2.0)

Video I/O: 2 x BNC (12G-SDI) Output

Audio I/O: 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input, 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output

Power I/O: 1 x LEMO 6-Pin (11 to 17VDC) Input

Other I/O: 1 x USB-C Control/Data/Video, 1 x 9-Pin Control/Data Input/Output

Wireless: 2.4 / 5 GHz Wi-Fi Control

Mobile App Compatible: Yes: Android & iOS

Monitor:

Size: 2.4"

Display Type: Fixed LCD

Focus:

Focus Type: Auto and Manual Focus

Focus Mode: Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF

Environmental:

Operating Temperature: 32 to 72°F / 0 to 40°C

Storage Temperature: -4 to 122°F / -20 to 50°C

Camera Dimensions and Weight:

Dimensions: 6.1 x 4.3 x 4.3" / 155.5 x 108 x 108 mm

Weight: 4.03 lb / 1.83 kg

Memory Card Specifications:

Quantity: 1

Card Type: CFexpress Type B

Storage Capacity: 2 TB

Read Speed: Maximum: 800 MB/s

Write Speed: Maximum: 800 MB/s

Durability: Dustproof, Shockproof, Temperature Extremes, Waterproof, X-Ray Proof

Memory Card Dimensions and Weight:

Package Weight: 0.105 lb

Box Dimensions: 5 x 4.38 x 0.9"

CFexpress Card Reader Specifications:

Media Card Reader: 1 x CFexpress Type B (CFexpress 2.0 / PCIe 3.0 x4)

System Connection: USB Type-C Male [USB 3.2 Gen 2x2 (20 Gb/s)]

Power Source: USB Bus Power

CFexpress Card Reader Dimensions and Weight:

Package Weight: 0.515 lb

Box Dimensions: 4.5 x 4.4 x 2.4"

Battery Specifications:

Mount / Series Type: V-Mount

Chemistry: Lithium-Ion

Battery Capacity: 98 Wh

Output Voltage: 14.8 VDC

Accessory I/O: 1 x D-Tap Output, 1 x USB Type-A Output

USB Output: 5 V

Battery Dimensions and Weight:

Package Weight: 1.36 lb

Box Dimensions: 5.2 x 4 x 3.1"

Compact Dual Battery Charger Specifications:

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

Multi-Bay Charging Modes: Independent, Simultaneous

Recharge Time: 1 to 5 Hours (98 Wh Batteries)

Chemistry: Lithium-Ion

Charger Dimensions and Weight:

Package Weight: 2.115 lb

Box Dimensions: 8 x 6.9 x 4.2"

DSMC3 RED Touch 7.0" LCD Monitor Specifications:

Display Size: 7.0" / 17.8 cm

Screen Resolution: 1920 x 1200

Touchscreen: Yes

Maximum Brightness: 1300 cd/m2

Color Gamut: 100% DCI-P3

Monitor Dimensions and Weight:

Package Weight: 2.59 lb

Box Dimensions: 9.3 x 9.3 x 2.5"

EXT-To-Timecode Cable Specifications:

Connector: 1 x 9-Pin LEMO

Cable Length: 3' / 91.44 cm

Wing Grip Specifications:

Item Type: Single Handgrip

Mounting: Multiple x 1/4"-20 Thread, Multiple x Anti-Twist 3/8"-16 Thread

Wing Grip Dimensions and Weight:

Package Weight: 0.175 lb

Box Dimensions: 4.75 x 2.8 x 1.85"
