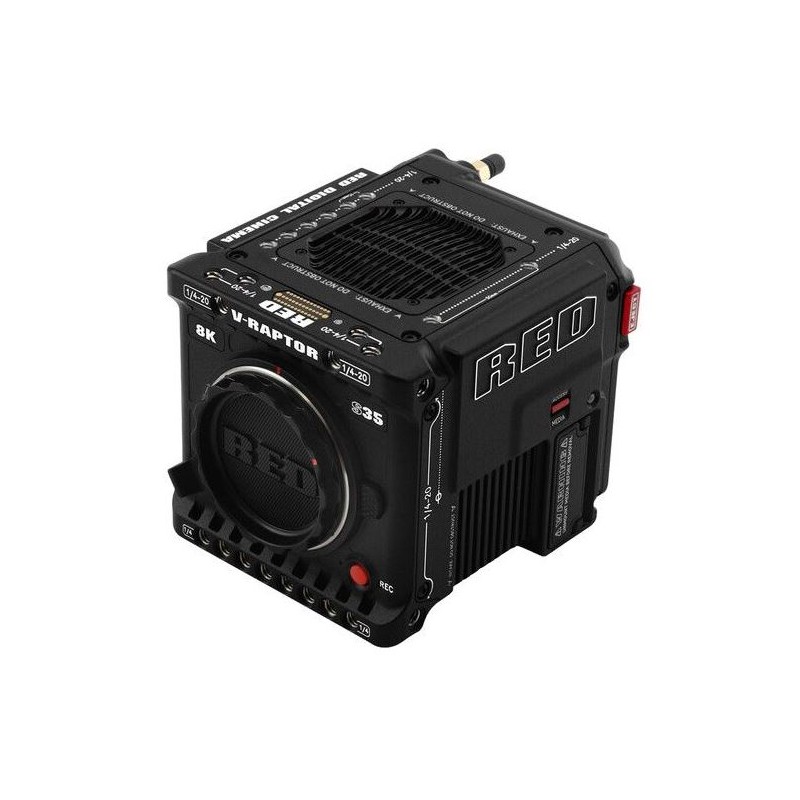

RED V-RAPTOR 8K S35

Opt for the cutting-edge 8K Super35 capture capability with the sleek black V-RAPTOR 8K S35 Camera, the latest addition to RED DIGITAL CINEMA's lineup featuring the advanced DSMC3 model, equipped with an 8K, 35.4MP S35 CMOS sensor. With a remarkable 16.5+ stops of dynamic range, rapid cine-level scan time, and exceptional low-light performance, the V-RAPTOR 8K S35 is poised to elevate your Super35-format imaging with unparalleled RED quality. Its versatile recording options span across various formats including 8/7/6/5/4/3/2K, accommodating REDCODE Raw, Apple ProRes, anamorphic, and proxy preferences.

The V-RAPTOR 8K S35's active RF lens mount empowers you to tailor your capture for every project, seamlessly integrating with a vast array of professional cine or still photo lenses and compatible with EF lens adapters. Leveraging phase-detect and contrast autofocus capabilities with compatible lenses, this camera blends Super35 capture, lens adaptability, autofocus (with select lenses), and a compact DSMC3 design, ideal for dynamic wildlife and broadcast projects or shoots necessitating handheld maneuvers across multiple locations.

Super35 Sensor and 8K Capture Options:

35.4MP CMOS S35 Sensor: Offering a pragmatic alternative to full-frame capture, the Super35mm sensor delivers 35.4 MP, preserving the beloved high resolution and shallow depth of field cherished by cine-style enthusiasts.

Up to 8K Capture: Versatile resolutions and frame rates enable capturing up to 120 fps in 8K, 240 fps in UHD 4k, and 480 fps in 2K, with anamorphic options extending to 6K, 7K, and 8K. The 8K resolution facilitates multi-shot cropping from a single take.

Wide Array of Compatible Lenses:

Super35 lens selection offers a compact profile while providing an extensive range of zoom and prime options suitable for broadcast and cine-style productions.

The locking Canon RF lens mount supports compatible RF to Canon EF-mount adapters, expanding your lens choices. Phase-detect and contrast autofocus are accessible with compatible lenses.

Applications:

The compact design, compatibility with a broad range of lenses, and the classic Super35 aesthetic render the V-RAPTOR 8K S35 perfect for wildlife, broadcast, and cine-style productions.

Compact DSMC3 Form:

Side Control Panel: Positioned conveniently on the assistant's side, the user-friendly 2.4" LCD panel offers comprehensive control, including status updates, in-camera format selection, and customizable buttons.

The compact and robust DSMC3 build, compatible with micro-V batteries, multiple monitor options, CFexpress card capture, and modular design, when coupled with a compact Super35 lens, ensures a portable, ergonomic setup.

Interfaces:

Built-in interfaces encompass dual 12G/6G/3G-SDI video outputs, genlock, timecode, GPIO, and RS-232 ports.

Dual-band Wi-Fi facilitates wireless 1080p video preview and camera control, while a 5-pin audio port provides a dual-channel mic/line input with +48V phantom power.

Power Options:

Power the V-RAPTOR 8K S35 using the integrated battery interface with a Micro V-mount battery or the supplied AC power adapter.

Package Includes:

• RED DIGITAL CINEMA V-RAPTOR 8K S35 Camera (Canon RF)
• DSMC AC Power Adapter (150W)
• Mini World Travel Adapter Kit
• RED Logo Sticker

Camera Specifications:

Lens Mount: Canon RF

Lens Communication: Yes, with Autofocus Support

Sensor Resolution: Effective: 35.4 Megapixels (8192 x 4320)

Sensor Type: 26.21 x 13.82 mm (Super35) CMOS

Image Stabilization: None

Built-In ND Filter: None

Internal Filter Holder: No

Capture Type: Stills & Video

Exposure Control:

Shutter Type: Electronic Rolling Shutter

Advertised Dynamic Range: 16.5 Stops

Video Capture:

Internal Recording Modes:

REDCODE HQ:

8192 x 4320 up to 60.00 fps

6144 x 3240 up to 96 fps

4096 x 2160 up to 240 fps

2048 x 1080 up to 480 fps

REDCODE MQ:

8192 x 4320 up to 60.00 fps

6144 x 3240 up to 160 fps

4096 x 2160 up to 240 fps

2048 x 1080 up to 480 fps

REDCODE LQ:

8192 x 4320 up to 120 fps

6144 x 3240 up to 160 fps

4096 x 2160 up to 240 fps

2048 x 1080 up to 480 fps

REDCODE RAW:

8192 x 4320 up to 120 fps

7168 x 3780 up to 140 fps

6144 x 3240 up to 160 fps

5120 x 2700 up to 192 fps

4096 x 2160 up to 240 fps

3072 x 1620 up to 320 fps

2048 x 1080 up to 480 fps

External Recording Modes: None

Sensor Crop While Recording: Various crop options available for different resolutions and aspect ratios.

Fast-/Slow-Motion Support: Yes

Gamma Curve: RED IPP2

Built-In Microphone Type: Mono

Audio Recording: 2-Channel 24-Bit 48 kHz

IP Streaming: None

Interface:

Media/Memory Card Slot: Single Slot: CFexpress Type B (CFast 2.0)

Video I/O: 2 x BNC (12G-SDI) Output

Audio I/O: 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input, 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output

Power I/O: 1 x LEMO 6-Pin (11 to 17VDC) Input

Other I/O: 1 x USB-C Control/Data/Video, 1 x 9-Pin Control/Data Input/Output

Wireless: 2.4 / 5 GHz Wi-Fi Control

Mobile App Compatible: Yes: Android & iOS (RED Control, RED Control Pro)

Global Positioning (GPS, GLONASS, etc.): None

Monitor:

Size: 2.4"

Display Type: Fixed LCD

Viewfinder: Optional, Not Included

Focus:

Focus Type: Auto and Manual Focus

Focus Mode: Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF

Environmental:

Operating Temperature: 32 to 72°F / 0 to 40°C

Storage Temperature: -4 to 122°F / -20 to 50°C

Storage Humidity: 0 to 85%

General:

Battery Type: Micro V-Mount

Tripod Mounting Thread: 1/4"-20 Female (Bottom), 3/8"-16 Female (Bottom)

Accessory Mount: 28 x 1/4"-20 Female

Material of Construction: Aluminum

Dimensions (W x H x D): 6.1 x 4.3 x 4.3" / 155.5 x 108 x 108 mm

Weight: 4.03 lb / 1.83 kg
