RED V-RAPTOR Starter Pack

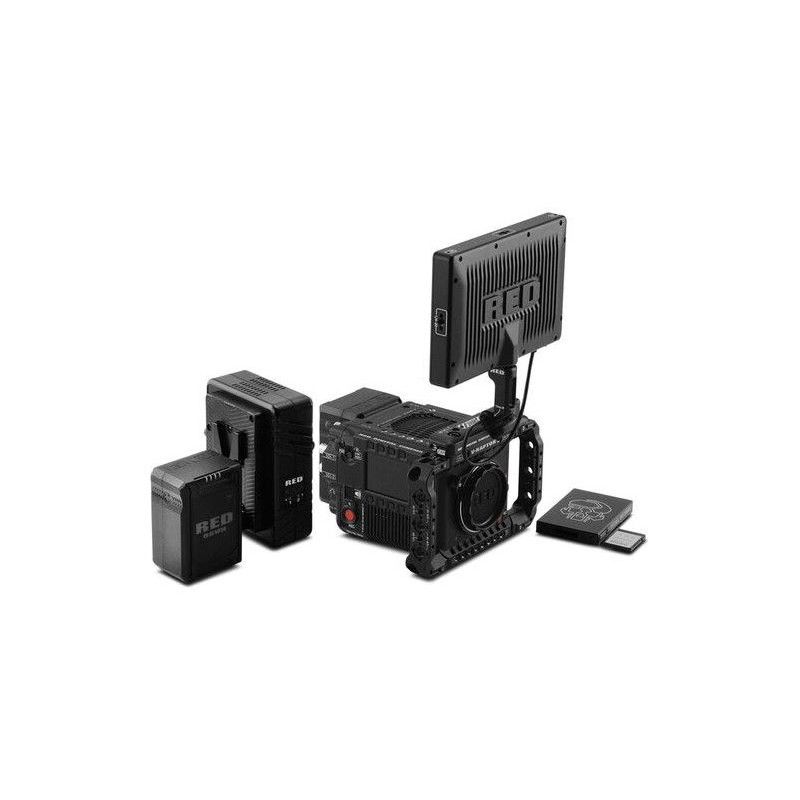

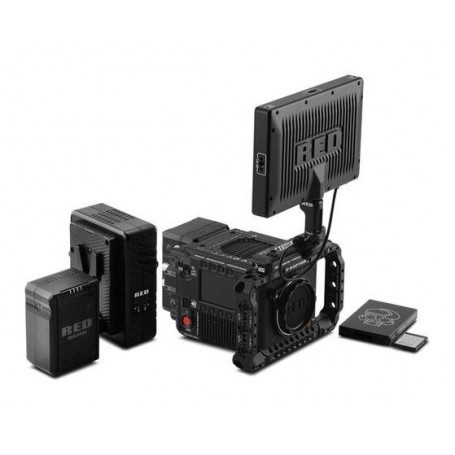

The RED DIGITAL CINEMA V-RAPTOR Starter Pack combines the cutting-edge 8K VV + 6K S35 Dual-Format V-RAPTOR Camera with essential accessories, including a high-capacity 2TB PRO CFexpress 2.0 memory card. This comprehensive kit also includes a DSMC3 RED Touch 7" LCD Monitor, a CFexpress card reader, and a V-RAPTOR Wing Grip. Additionally, the camera comes with a power supply, two MICRO-V batteries, and a dual charger.

The V-RAPTOR 8K VV Camera is remarkably compact, fast, and versatile, offering multi-format capture in 8K VV, 6K Super35, 4K, 3K Super16, and anamorphic options. Its RF lens mount accommodates various lens adapters, with a locking ring ensuring secure attachment even with heavier lenses. The camera features a new 35.4MP full-frame sensor delivering 17+ stops of dynamic range and phase-detection autofocus (PDAF), enhancing low-light performance and enabling rapid focus acquisition.

Powering the V-RAPTOR are compact Micro-V batteries, offering a smaller form factor to match the camera's footprint. These batteries provide approximately one hour of power and can be charged quickly using the included dual charger. Additionally, the camera supports CFexpress 2.0 Type B cards for high-speed and efficient media capture.

The right-side LCD interface provides intuitive control for assistant camera operators and includes physical buttons to prevent accidental selections. Dual 12G-SDI ports facilitate versatile output options, while high-speed frame rates and REDCODE Raw options cater to various shooting requirements.

The DSMC3 RED Touch 7.0" LCD Monitor offers daylight viewing with a high 322 ppi pixel density and wide 100% DCI-P3 color gamut. Mounting directly onto the camera, it provides touchscreen control and tilt adjustment for optimal viewing angles.

The 2TB PRO CFexpress 2.0 Type B Memory Card ensures high-performance data capture, supporting all frame rates and resolutions offered by the V-RAPTOR camera. Engineered for durability and reliability, it features advanced thermal management and offers free professional data recovery services.

Completing the kit, the CFexpress Card Reader allows fast ingestion of media, and the V-RAPTOR Wing Grip provides a low-profile handheld support option with multiple accessory mounting points.

Please note that the integrated 2.4" LCD monitor on the camera is for control purposes only and does not offer video preview capabilities. Additionally, some accessories may have limited compatibility with previous camera systems.

Included in the package are the following items:

• 1x RED V-RAPTOR
• 1x DSMC3 RED Touch 7" LCD
• 1x CFexpress 2TB
• 1x RED CFexpress Card Reader
• 2x REDVOLT MICRO-V Battery Packs
• 1x RED Compact Dual V-Lock Charger
• 2x V-RAPTOR Wing Grips
• 1x EXT to T/C Cable

Specifications

Imaging

Lens Mount: Canon RF

Lens Communication: Yes

Sensor Resolution: Effective: 35.4 Megapixel (8192 x 4320)

Sensor Type: 40.96 x 21.6 mm (Full-Frame) CMOS

Image Stabilization: None

Built-In ND Filter: None

Capture Type: Stills & Video

Exposure Control:

Shutter Type: Electronic Rolling Shutter

Advertised Dynamic Range: 17 Stops

Internal Recording Modes:

REDCODE HQ

8192 x 4320 up to 59.94 fps

6144 x 3240 up to 96 fps

4096 x 2160 up to 239.76 fps

2048 x 1080 up to 480 fps

REDCODE MQ

8192 x 4320 up to 59.94 fps

6144 x 3240 up to 160 fps

4096 x 2160 up to 239.76 fps

2048 x 1080 up to 480 fps

REDCODE LQ

8192 x 4320 up to 119.88 fps

6144 x 3240 up to 160 fps

4096 x 2160 up to 239.76 fps

2048 x 1080 up to 480 fps

REDCODE RAW

8192 x 4320 up to 119.88 fps

7168 x 3780 [140]

6144 x 3240 up to 160 fps

5120 x 2700 [192]

4096 x 2160 up to 239.76 fps

3072 x 1620 [320]

2048 x 1080 up to 480 fps

Sensor Crop Modes:

Super35 / APS-C

Super16

Sensor Crop While Recording: Various options including 8K and 7K in different aspect ratios and anamorphic settings

Variable Frame Rates: Up to 480 fps in DCI 2K

Gamma Curve: RED IPP2

Built-In Microphone Type: Mono

Audio Recording: 2-Channel 24-Bit 48 kHz

IP Streaming: MJPEG: 1920 x 1080

Interface

Media/Memory Card Slot: Single Slot: CFexpress Type B (CFast 2.0)

Video I/O: 2 x BNC (12G-SDI) Output

Audio I/O: 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input, 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output

Power I/O: 1 x LEMO 6-Pin (11 to 17 VDC) Input

Other I/O: 1 x USB-C Control/Data/Video, 1 x 9-Pin Control/Data Input/Output

Wireless: 2.4 / 5 GHz Wi-Fi Video Output

Monitor

Size: 2.4"

Display Type: Fixed LCD

Viewfinder

Type: Optional, Not Included

Focus

Focus Type: Auto and Manual Focus

Focus Mode: Single-Servo AF, Continuous-Servo AF, Automatic, Manual Focus

Environmental

Operating Temperature: 32 to 72°F / 0 to 40°C

Storage Temperature: -4 to 122°F / -20 to 50°C

Storage Humidity: 0 to 85%

General

Battery Type: Micro V-Mount

Tripod Mounting Thread: 1/4"-20 Female (Bottom), 3/8"-16 Female (Bottom)

Accessory Mount: 28 x 1/4"-20 Female

Netflix Approved: Yes

Material of Construction: Aluminum

Dimensions (W x H x D): 6.1 x 4.3 x 4.3" / 155.5 x 108 x 108 mm

Weight: 4 lb / 1.8 kg

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount) Specs

Display

Color/Monochrome: Color

Panel Type: LCD

Display Size: 7.0" / 17.8 cm

Screen Resolution: 1920 x 1200

Touchscreen: Yes

Maximum Brightness: 1300 cd/m2

Contrast Ratio: 1250:1

Refresh Rate: 60 Hz

Pixels Per Inch (ppi): 322 ppi

Color Gamut: 100% DCI-P3

I/O

Video I/O: 1 x USB-C Input/Output

Optics

Field of View: 160°

Power

Power Consumption: 18.3 W (Maximum)

Environmental

Operating Humidity: 0 to 85%

Operating Temperature: 32 to 100°F / 0 to 38°C

Storage Humidity: 0 to 85%

Storage Temperature: 32 to 248°F / 0 to 120°C

General

Mounting: 2 x 1/4"-20 Female

Material of Construction: Aluminum

Dimensions: 7.1 x 4.7 x 1.1" / 180 x 118.7 x 28.8 mm

Weight: 1.2 lb / 568 g
