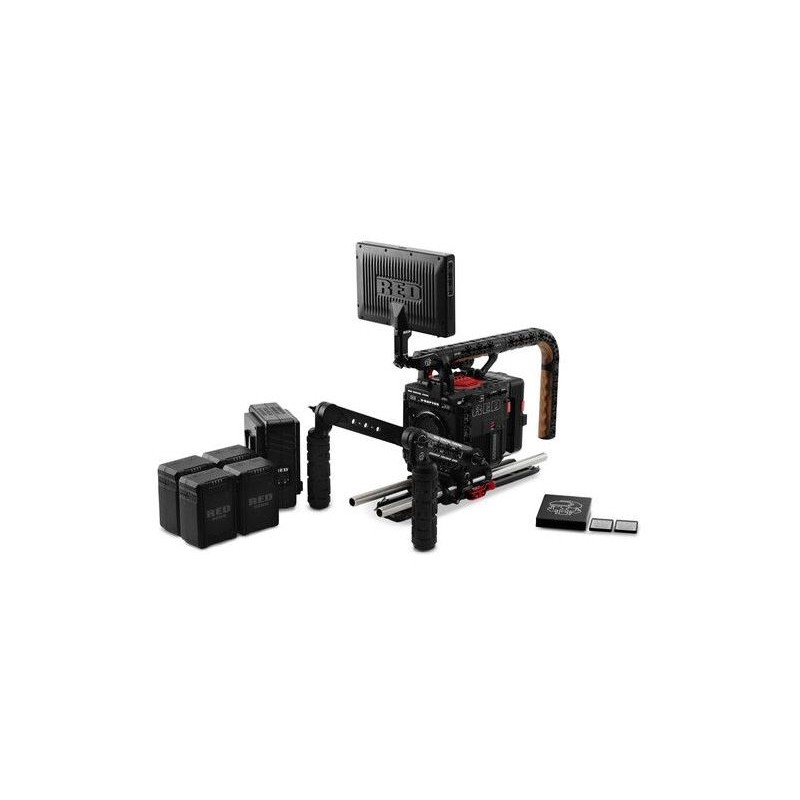

RED V-RAPTOR Production Pack (V-Lock)

Introducing the comprehensive V-RAPTOR Production Pack from RED DIGITAL CINEMA, designed to unleash your creativity with cutting-edge filmmaking capabilities. This bundle includes the versatile V-RAPTOR 8K VV + 6K S35 camera, along with essential accessories for professional-grade productions.

The V-RAPTOR camera delivers stunning imagery with resolutions up to 8K VV and 6K Super35, featuring an RF lens mount, dual 12G-SDI outputs, and REDCODE Raw recording at high frame rates. With its 35.4MP full-frame sensor offering 17+ stops of dynamic range, the V-RAPTOR excels in low-light conditions while minimizing noise. Enhanced with phase-detection autofocus (PDAF), this camera ensures precise focusing even in fast-paced scenarios.

Powered by compact Micro-V batteries, the V-RAPTOR maintains its sleek design while offering reliable performance. CFexpress cards enable high-speed data capture, and the included card reader facilitates efficient media management.

The right-side LCD interface provides convenient control for camera assistants, with physical buttons ensuring accurate selections. Dual 12G-SDI ports allow versatile output options, while high-speed frame rates and REDCODE Raw settings offer flexibility in creative expression.

The DSMC3 RED Touch 7.0" LCD Monitor provides a vibrant display for camera control, featuring touchscreen functionality and compatibility with DSMC3 cameras. With its 1920 x 1200 resolution and wide color gamut, this monitor ensures optimal imaging in various shooting conditions.

Included in the pack is the RED 2TB PRO CFexpress 2.0 Type B Memory Card, offering reliable performance for high-bitrate captures. With advanced thermal management and a durable design, this card provides peace of mind during demanding shoots.

The RED CFexpress Card Reader enables fast data transfer from the RED PRO CFexpress card to compatible systems, ensuring efficient workflow management. Additionally, the pack includes REDVOLT MICRO-V batteries and a compact dual battery charger for on-the-go power solutions.

For expanded connectivity, the V-RAPTOR Expander Blade offers video, power, and communication ports, enhancing versatility in professional setups. The Quick Release Platform Pack provides a sturdy mounting solution for tripod use, while the DSMC3 5-Pin to Dual XLR Adapter adds XLR inputs for audio recording.

Completing the pack are reversible side plates for the V-RAPTOR, offering additional mounting options for accessories. With its comprehensive range of accessories, the V-RAPTOR Production Pack empowers filmmakers to unleash their creative vision with confidence and efficiency.

Included in the package are the following components:

• 1x V-RAPTOR 8K VV Camera System
• 1x DSMC3 RED Touch 7” LCD Monitor
• 2x RED PRO CFexpress 2TB Memory Cards
• 1x RED CFexpress Card Reader
• 4x REDVOLT MICRO-V Batteries (V-Lock Variant Only)
• 1x RED Compact Dual V-Lock Battery Charger
• 1x V-RAPTOR Tactical Top Plate with Battery Adapter (V-Lock)
• 1x V-RAPTOR Top Handle with Extensions
• 1x V-RAPTOR Expander Blade
• 1x V-RAPTOR Quick Release Platform Pack
• 1x DSMC3 RED 5-Pin to Dual XLR Adapter
• 1x RED Production Grips
• 1x V-RAPTOR Side Ribs
• 1x V-RAPTOR Production Plates

Specifications:

Sensor Specs:

Sensor: V-RAPTOR 8K VV 35.4 Megapixel CMOS

Effective Pixels: 8192 (h) x 4320 (v)

Sensor Size: 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)

Dynamic Range: 17+ stops

Lens Mount:

Mount Type: Integrated RF mount with RF lens support

Compatible with Canon EF lenses via compatible Canon RF to EF mount adapters

Accepts other Canon RF mount-based lens adaptors for diverse lens choices

Recording:

Max Data Rates: Up to 800 MB/s using RED branded or other qualified CFexpress media cards

REDCODE RAW:

Max Frame Rates: See detailed specifications for various resolutions

Playback Frame Rates (Project Time Base):

23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

Best Available REDCODE Settings:

See detailed specifications for various resolutions

REDCODE RAW Acquisition Formats:

See detailed specifications for various resolutions

General:

Construction: Aluminum Alloy

Weight: 4.03 lbs (without body cap and CFexpress card)

Battery Type: Integrated V-Lock battery interface optimized for Micro V-Lock Batteries

DC Power Input: 11-17V via 6-pin DC-IN

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -20°C to 50° C (-4°F to 122°F)

Storage Relative Humidity: 0% to 85% non-condensing

Features:

Colour Management: Image Processing Pipeline (IPP2)

Audio: Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz

Monitor Outputs: Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes

SMPTE: Timecode, HANC Metadata, 24-bit 48 kHz Audio

Monitor Options: DSMC3 RED Touch 7.0” LCD, Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing, Integrated 2.4” LCD for camera control (no preview video)

Software:

RED Control: Access full camera controls and live preview from iOS or Android devices. Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C.
