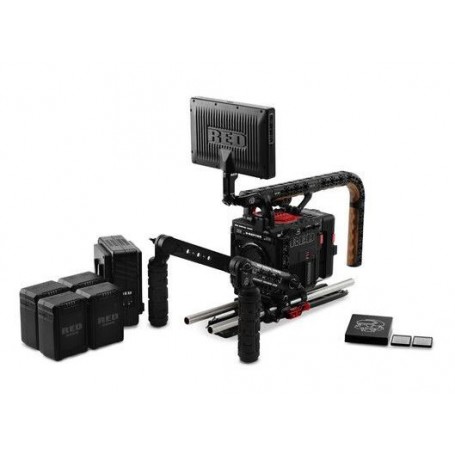

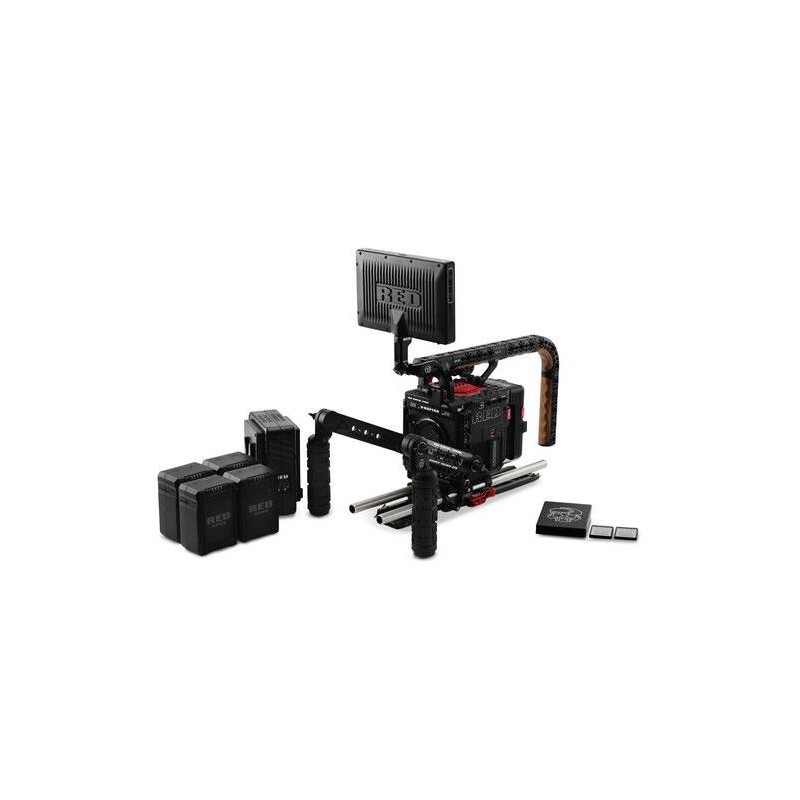

RED V-RAPTOR Production Pack (Gold Mount)

Capture breathtaking images in resolutions up to 8K VV with the cutting-edge DSMC3 camera and a comprehensive set of accessories provided in the V-RAPTOR Production Pack from RED DIGITAL CINEMA. This bundle equips you with everything you need to maximize the potential of the V-RAPTOR 8K VV + 6K S35 dual-format camera, ensuring versatility and performance in any shooting scenario.

Included Components:

V-RAPTOR 8K VV DSMC3 Camera (Canon RF, Black): This compact powerhouse offers multi-format capture in 8K VV, 6K Super35, 4K, 3K Super16, and anamorphic options. With an RF lens mount, dual 12G-SDI outputs, REDCODE Raw recording capabilities, 1080p streaming, and 17+ stops of dynamic range, it delivers exceptional performance for various production styles.

Micro-V Batteries: Compact yet powerful, these REDVOLT MICRO-V 98Wh V-mount batteries provide reliable power to the V-RAPTOR, offering approximately one hour of usage per battery charge.

Dual Battery Charger: Charge two V-mount batteries simultaneously with this compact charger, ensuring your camera remains powered and ready for action. Designed in collaboration with Core SWX, it offers efficient charging without the need for multiple chargers.

CFexpress Cards and Reader: Two 2TB PRO CFexpress cards provide ample storage for high-resolution footage, offering fast data transfer rates and compatibility with the V-RAPTOR. The included CFexpress card reader ensures quick and convenient data ingestion.

RED Touch 7" LCD Monitor: This high-resolution monitor attaches directly to the V-RAPTOR, offering daylight viewing and touchscreen control for seamless operation. With a wide color gamut and impressive brightness, it enhances monitoring and control on set.

Additional Accessories: The pack includes essential accessories such as a top handle with extensions, an expander blade for added connectivity options, a quick-release platform pack for easy mounting, a 5-pin to dual-XLR adapter for enhanced audio capabilities, side ribs, production plates, and an AC power supply for continuous operation.

Compatibility and Performance:

Sensor: The V-RAPTOR features a new full-frame sensor with 35.4MP, providing exceptional dynamic range and low-light performance.

Power Management: The camera is optimized for use with Micro-V mount batteries, offering flexibility and efficiency in power consumption.

Recording Media: CFexpress 2.0 Type B cards ensure reliable and high-speed data capture, essential for demanding production environments.

User Interface: The right-side LCD interface offers intuitive control for 1st and 2nd ACs, providing convenient access to camera settings and functions.

Connectivity: Dual 12G-SDI ports, USB Type-C output, and other communication interfaces enable seamless integration with external devices and accessories.

The V-RAPTOR Production Pack combines cutting-edge technology, versatile performance, and essential accessories to empower filmmakers and cinematographers in capturing stunning imagery with ease and precision. From its compact and powerful camera system to its comprehensive set of accessories, this pack is designed to meet the demands of professional production environments, ensuring seamless workflow and exceptional results.

Package contents:

• 1x V-RAPTOR 8K VV Camera System
• 1x DSMC3 RED Touch 7” LCD​
• 2x RED PRO CFexpress 2TB
• 1x RED CFexpress Card Reader
• 4x REDVOLT MICRO-G Batteries
• 1x RED Compact Dual Gold Mount Charger
• 1x V-RAPTOR Tactical Top Plate with Battery Adapter (Gold Mount)
• 1x V-RAPTOR Top Handle with Extensions
• 1x V-RAPTOR Expander Blade
• 1x V-RAPTOR Quick Release Platform Pack
• 1x DSMC3 RED 5-Pin to Dual XLR Adapter
• 1x RED Production Grips
• 1x V-RAPTOR Side Ribs
• 1x V-RAPTOR Production Plates

Specifications:

Sensor Type: V-RAPTOR™ 8K VV 35.4 Megapixel CMOS

Effective Pixels: 8192 x 4320

Sensor Size: 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)

Dynamic Range: 17+ stops

Mount Type: Integrated RF mount with RF lens support

Supports Canon EF lenses via compatible Canon RF to EF mount adapters

Accepts other Canon RF mount-based lens adaptors for diverse lens choices

Max Data Rates: Up to 800 MB/s using RED branded or other qualified CFexpress media cards

REDCODE® RAW Max Frame Rates:

120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)

140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)

160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)

192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)

240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)

320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)

480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

Best Available REDCODE® Settings:

REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps

REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps

REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps

REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps

REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps

REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps

REDCODE® RAW

Acquisition Formats: Various resolutions including 8K, 7K, 6K, 5K, 4K, 3K, and 2K in different aspect ratios and anamorphic options

Apple ProRes: Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160)

Construction: Aluminum Alloy

Weight: 4.03 lbs (without body cap and CFexpress card)

Battery Type: Integrated V-Lock battery interface optimized for Micro V-Lock Batteries

DC Power Input: 11-17V via 6-pin DC-IN

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: –20°C to 50°C (–4°F to 122°F)

Storage Relative Humidity: 0% to 85% non-condensing

Color Management: Image Processing Pipeline 2 (IPP2) supporting 33×33×33 3D LUTs and import of CDLs

Audio: Integrated dual-channel digital mono microphones, uncompressed, 24-bit 48 kHz; integrated dual-channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz

Autofocus: Contrast and Phase Detect

Remote Control: Wi-Fi, Genlock, Timecode-in, GPIO and Ctrl (RS-232) via integrated 9-pin EXT Port, wired control via USB-C or Gigabit Ethernet

Monitor Outputs: Integrated dual 12G-SDI with 6G-SDI, 3G-SDI, and 1.5G-SDI modes supporting various resolutions and formats

Monitor Options: DSMC3™ RED® Touch 7.0” LCD, wireless 1080p live preview video feed via Wi-Fi, integrated 2.4" LCD for camera control

RED Control: Full camera controls and live preview from iOS or Android devices, available from the Apple App Store and Google Play Store, wirelessly or wired via USB-C
