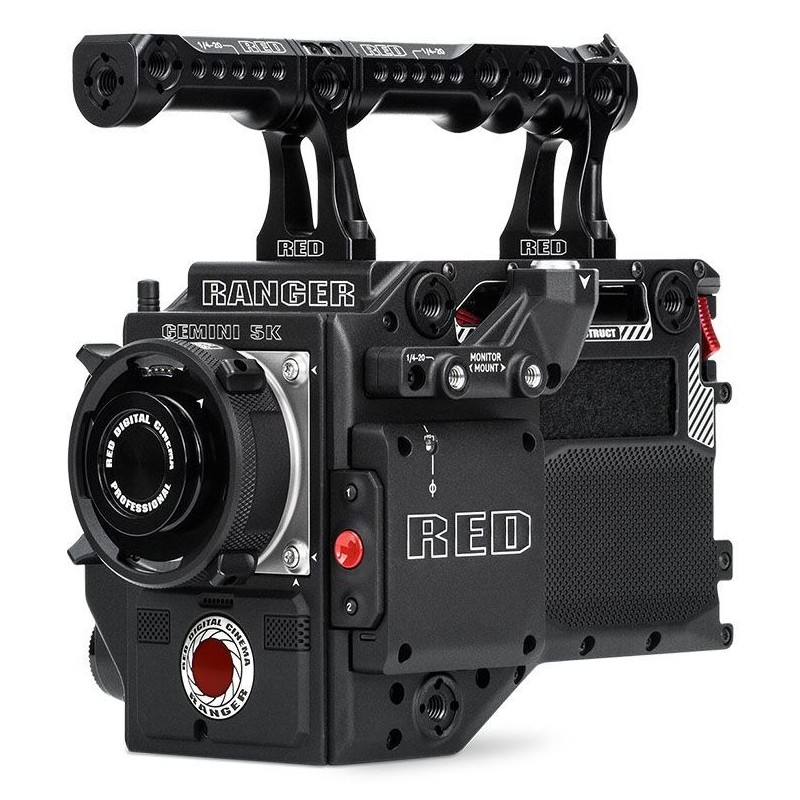

RED RANGER GEMINI 5K S35 and Shimmed PL Mount (Gold Mount)

Introducing the RED RANGER, an integrated camera system designed to streamline filmmaking processes. Weighing approximately 7.5 pounds (depending on battery), this standardized camera body offers wide input voltage (11.5V to 32V), enhanced SDI and AUX power outputs, and an integrated XLR audio input. Its larger fan ensures quieter operation and efficient temperature management.

Equipped with integrated I/Os, 24V power out, shimmed PL Mount, and improved thermal performance, the RED RANGER provides reliability in diverse shooting conditions. It comes complete with necessary rigging and support, facilitating quicker setup times.

The RED RANGER offers three sensor options: MONSTRO 8K VV, HELIUM 8K S35, and GEMINI 5K S35. Each sensor delivers remarkable resolution and image quality, breathing life into your footage. The MONSTRO and HELIUM sensors offer unparalleled beauty with up to 17x more resolution than HD and over 4x more than 4K. For versatility, the GEMINI sensor boasts RED's highest sensitivity to date, delivering exceptional performance in low-light environments and shadows.

Configured for studio use, the PL-mount RED RANGER with GEMINI 5K S35 Sensor is ideal for rental houses, high-end productions, and individual users. Featuring a 15.4MP CMOS sensor, this kit includes a shimmed PL mount, Gold mount battery plate, integrated I/O ports, 5-pin XLR audio input, and improved fan and thermal performance.

With a wide dynamic range of 16.5+ stops and exceptional shadow detail, the GEMINI 5K S35 sensor allows capture rates of up to 75 fps in 5K and up to 300 fps in 2K. It supports REDCODE RAW, ProRes, and DNx recording, providing versatile workflow options. The aluminum body ensures durability, while data rates of up to 300 MB/s enable high-quality recording.

Included in the kit are a PL lens mount with shims, production top handle, Gold mount battery plate, 24 VAC adapter with cable, and hex and Torx tools. The RED RANGER kit offers a comprehensive solution for professional filmmakers seeking high-performance equipment.

Included in the package:

• 1x RED RANGER BRAIN with GEMINI 5K S35 sensor
• 1x Shimmed PL Mount and PL Mount Shim Pack
• 1x Production Top Handle
• 1x LCD/EVF Adaptor D
• 1x RED RANGER AC Power Adaptor
• 1x 3-Pin XLR-to-RED RANGER Power Cable (10 feet)
• Compatible Hex and Torx tools

Specifications

Sensor Type: GEMINI® 15.4 Megapixel Dual Sensitivity CMOS

Effective Pixels: 5120 x 3000

Sensor Size: 30.72 mm x 18.00 mm (Diagonal: 35.61 mm)

Dynamic Range: 16.5+ stops (Both Sensitivities)

Max Data Rates:

Up to 300 MB/s using RED MINI-MAG® (480GB, 512GB, 960GB & 1TB)

Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)

Max Frame Rates:

75 fps at 5K Full Height 1.7:1 (5120 x 3000)

96 fps at 5K Full Format (5120 x 2700)

120 fps at 5K 2.4:1 (5120 x 2160)

120 fps at 4K Full Format (4096 x 2160)

150 fps at 4K 2.4:1 (4096 x 1728)

150 fps at 3K Full Format (3072 x 1620)

200 fps at 3K 2.4:1 (3072 x 1296)

240 fps at 2K Full Format (2048 x 1080)

300 fps at 2K 2.4:1 (2048 x 864)

Playback Frame Rates (Project Timebase):

23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps, all resolutions

REDCODE Settings Range from 2:1 up to 22:11:

3:1 REDCODE at 5K Full Height (5120 x 3000) and 24 fps

6:1 REDCODE at 5K Full Height (5120 x 3000) and 60 fps

2:1 REDCODE at 5K Full Format (5120 x 2700) and 24 fps

8:1 REDCODE at 5K Full Format (5120 x 2700) and 96 fps

2:1 REDCODE at 4K Full Format (4096 x 2160) and 24 fps

6:1 REDCODE at 4K Full Format (4096 x 2160) and 120 fps

REDCODE RAW Acquisition Formats:

Various aspect ratios and resolutions for 5K, 4K, 3K, and 2K

Apple ProRes:

ProRes 422 HQ, ProRes 422, and ProRes 422 LT at 4K (4096 × 2160) up to 30 fps

ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps

ProRes 422 HQ, ProRes 422, and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps

Avid Codecs:

Various options for 4K and 2K resolutions

Construction: Aluminum Alloy

Weight:

7.30 lbs (with Integrated Media Bay, PL Mount, and Gold Mount)

7.50 lbs (with Integrated Media Bay, PL Mount, and V-Lock)

DC IN Power Input: 11.5 V DC to 32 V DC

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: –20°C to 50°C (–4°F to 122°F)

Relative Humidity: 0% to 85% non-condensing

Color Management: Supports various 3D LUTs and 1D LUTs

Audio: Integrated dual-channel digital stereo microphones, 5-pin XLR with preamplifiers

Remote Control: External R.C.P. WiFi antenna, Ethernet, RS232, and GPI Trigger

Monitor Outputs: 3G-SDI (HD-SDI) and MON-1 with SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

Monitor Options: Various compatible LCD and EVF options

REDCINE-X PRO: Supported

Delivery Formats: Various options including DPX, TIFF, OpenEXR, QuickTime, JPEG, AVID AAF, MXF, H.264, and .MP4

Video Editing Software Compatibility: Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro
