RED KOMODO 6K Starter Pack

The KOMODO 6K Camera Starter Pack from RED DIGITAL CINEMA bundles the lightweight Super35 KOMODO 6K camera with essential accessories. This comprehensive pack includes:

• RF to EF mechanical lens mount adapter
• Electronic Canon EF-EOS R Mount Adapter with a drop-in variable ND filter
• Two REDVOLT BP batteries
• Two Wing Grips
• AC power adapter
• Mini World Travel Adapter Kit
• One 512GB card
• Card reader
• Timecode cable

Firmware Update v.1.5.5

Addresses playback stuttering at high frame rates

Resolves German SLA causing camera shutdown

Improves RFB raw metering in 6K full frame

Enhances LCD sync issues in playback with anamorphic formats

General stability improvements

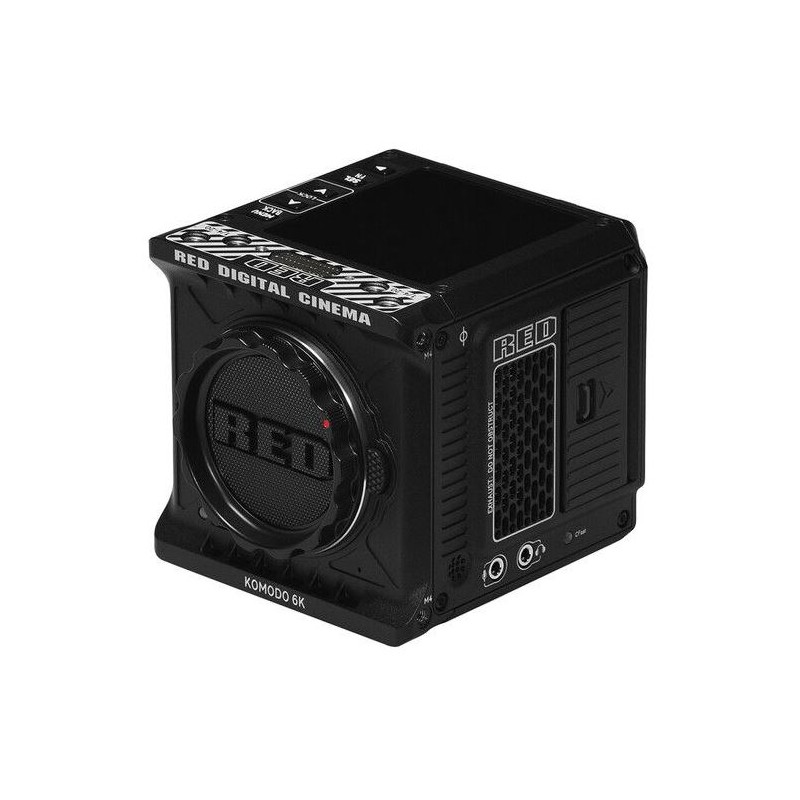

RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera (Canon RF)

RED introduces the KOMODO 6K Digital Cinema Camera, compact yet powerful, weighing just 2.1 lb and measuring approximately 4 x 4 x 4". Key features include:

Canon RF lens mount

KOMODO 19.9MP Super35 CMOS sensor with Global Shutter

Up to 6K recording at 40 fps in REDCODE RAW

Simplified compression options: HQ, MQ, and LQ

Support for Apple ProRes formats

Integrated stereo microphones and 3.5mm audio input

Genlock/timecode/GPIO/RS232 support via 9-pin EXT port

Dual Canon BP-9xx series battery slots for hot-swapping

Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter

Compatible with EF and EF-S-mount lenses

Variable neutral density filter for exposure control

Retains full autofocus and image stabilization capabilities

Dust- and water-resistant design

RED DIGITAL CINEMA CFAST 2.0 Card Reader

Quickly offload footage from KOMODO digital cine cameras

USB Type-C port with 10 Gb/s, USB 3.1 Gen 2 standard

Windows, macOS, and Linux compatible

RED DIGITAL CINEMA 512GB RED PRO CFast 2.0 Memory Card

Reliable recording for KOMODO 6K and KOMOD ST digital cinema cameras

Data rates up to 280 MB/s

X-ray and magnet proof construction

RED DIGITAL CINEMA KOMODO Wing Grip

Low-profile, handheld support option

Ergonomic grip with 1/4"-20 and anti-twist 3/8"-16 threads

RED DIGITAL CINEMA EXT-to-Timecode Cable (3')

Input timecode to RED DIGITAL CINEMA KOMODO camera via 9-pin EXT connector

3' length including connectors

RED DIGITAL CINEMA REDVOLT BP for KOMODO 6K S35

Longer-lasting 6300mAh capacity

In-camera display of remaining battery time

Hot-swappable and mounts directly onto KOMODO's battery plate

Package Contents:

• RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera (Canon RF)
• AC Power Adapter (45W)
• Mini World Traveler Adapter Kit
• RED Logo Sticker
• Canon EF-EOS R Adapter
• Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter
• Canon Drop-In Variable ND Filter A (1.5-9 Stop)
• RED DIGITAL CINEMA CFAST 2.0 Card Reader
• RED DIGITAL CINEMA 512GB RED PRO CFast 2.0 Memory Card
• 2 x RED DIGITAL CINEMA KOMODO Wing Grip
• RED DIGITAL CINEMA EXT-to-Timecode Cable (3')
• 2 x RED DIGITAL CINEMA REDVOLT BP for KOMODO 6K S35

RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera (Canon RF) Specs:

Lens Mount: Canon RF

Included Lens Mount Adapter: Canon EF

Lens Communication: Yes, with Autofocus Support

Sensor Resolution: Effective: 19.9 Megapixel (6144 x 3240)

Sensor Type: 27.03 x 14.26 mm (Super35) CMOS

Image Stabilization: None

Built-In ND Filter: None

Capture Type: Stills & Video

Shutter Type: Electronic Global Shutter

Shutter Speed: 1/8000 to 1 Second

ISO Sensitivity: 250 to 12,800

Shutter Angle: 0 to 360°

Advertised Dynamic Range: 16 Stops

White Balance: 1700 to 10,000K

Internal Recording Modes:

ProRes 422/ProRes 422 HQ

4096 x 2160 up to 59.94 fps

ProRes 422

2048 x 1080 up to 119.88 fps

REDCODE RAW

6144 x 3240 up to 40 fps [280 Mb/s]

5120 x 2700 up to 48.00 fps [280 Mb/s]

4096 x 2160 up to 59.94 fps [280 Mb/s]

2048 x 1080 up to 119.88 fps [280 Mb/s]

External Recording Modes:

4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps

3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps

2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps

1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps

Sensor Crop Modes: Super35 / APS-C

Built-In Microphone Type: Stereo

Audio Recording: 2-Channel 24-Bit 48 kHz

Interface:

Media/Memory Card Slot: Single Slot: CFast (CFast 2.0)

Video I/O: 1 x BNC (12G-SDI) Output

Audio I/O: 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input

Power I/O: 1 x LEMO 2-Pin (7 to 17 VDC) Input

Other I/O: 1 x 9-Pin (Genlock, GPI, RS-232, Timecode)

Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control

Monitor:

Size: 2.9"

Resolution: 1440 x 1440

Display Type: Fixed Touchscreen LCD

Focus:

Focus Type: Auto and Manual Focus

Focus Mode: Automatic, Manual Focus

Environmental:

Operating Temperature: 32 to 104°F / 0 to 40°C

Storage Temperature: -4 to 122°F / -20 to 50°C

Storage Humidity: 0 to 85% (Non-Condensing)

General:

Battery Type: Canon BP-9 Series

Power Consumption: 45 W

Tripod Mounting Thread: 1/4"-20 Female (Bottom), 3/8"-16 Female (Bottom)

Netflix Approved: Yes

Material of Construction: Aluminum

Dimensions (W x H x D): 4 x 4 x 4" / 10.2 x 10.2 x 10.2 cm

Weight: 2.1 lb / 1 kg

Canon Drop-In Filter Mount Adapter EF-EOS R With Variable ND Filter Specs:

Adapter:

Camera Mount: Canon RF

Lens Mount: Canon EF, Canon EF/EF-S

Physical:

Dimensions: ø: 2.9 x H: 1.0" / ø: 73.2 x H: 24.7 mm

Weight: 4.27 oz / 121 g

RED DIGITAL CINEMA CFAST 2.0 Card Reader Specs:

Performance:

Media Card Reader: 1 x CFast (CFast 2.0 / SATA III [6 Gb/s])

System Connection: USB Type-C Male [USB 3.1 / 3.2 Gen 2 (10 Gb/s)]

RED DIGITAL CINEMA 512GB RED PRO CFast 2.0 Memory Card Specs:

Mounting:

Quantity: 1

Card Type: CFast 2.0

Storage Capacity: 512 GB

Speed (X-rating): 3500x

Durability: Magnet-Proof, Shockproof, Temperature Extremes, X-Ray Proof

RED DIGITAL CINEMA KOMODO Wing Grip Specs:

Mounting:

Attachment Method: Not Specified by Manufacturer

Accessory Mounting: Multiple x 1/4"-20 Thread, Multiple x Anti-Twist 3/8"-16 Thread

General:

Materials: Aluminum

Dimensions: 3.7 x 1.5 x 1.3" / 95 x 38 x 32 mm

Weight: 2.1 oz / 59 g

Performance:

Item Type: Single Handgrip

Built-In Controls: None

RED DIGITAL CINEMA EXT-To-Timecode Cable (3') Specs:

Connector 1: 1 x 9-Pin LEMO

Cable Length: 3' / 91.44 cm

RED DIGITAL CINEMA REDVOLT BP For KOMODO 6K S35 Specs:

Mount / Series Type: Canon BP-900 Series

Chemistry: Lithium-Ion

Battery Capacity: 6300 mAh

Accessory Port: None

Dimensions (W x H x D): 4.16 x 2.36 x 1.78" / 105.66 x 59.94 x 45.21 mm

Weight: 8.32 oz / 236 g
